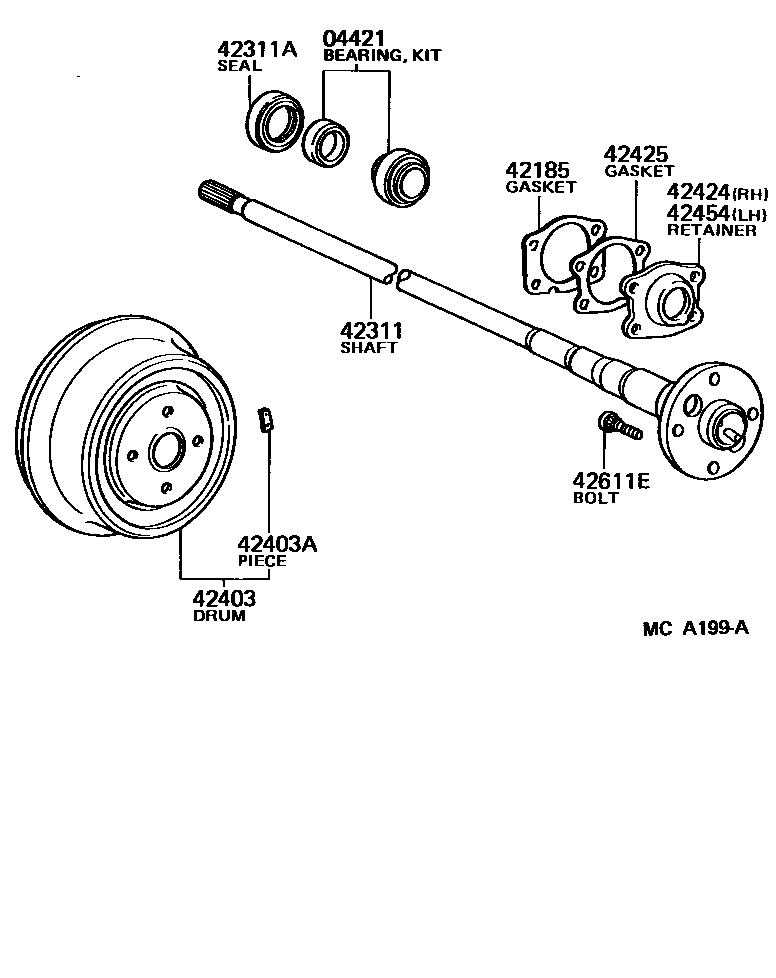

REAR AXLE SHAFT & HUB

0001 1 0002 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-27010×2iYR2#198308-198508

main04421-30030×2iYR2#,3#198508-198808

42185GASKET, REAR AXLE HOUSING END

main42185-28010×2iYR2#198308-198508

main42185-30061×2iYR2#,3#198508-198808

42311SHAFT, REAR AXLE

main42311-22110×2iYR2#198308-198508

main42311-28020×2iYR2#198508-198808

main42311-28030×2iYR3#198608-198808

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059×2iYR2#,3#198308-198808

42403DRUM SUB-ASSY, REAR BRAKE

main42431-28020×2iYR2#198308-198808

main42431-28030×2iYR3#198608-198808

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01100×2iYR2#198308-198512

40.5G,40.5G

main90937-01117×2iYR2#,3#198308-198808

10G,10G

main90937-01118×2iYR2#,3#198308-198808

20G,20G

main90937-01119×2iYR2#,3#198308-198808

30G,30G

main90937-01146×2iYR2#198308-198512

25G,50G

main90937-01178×2iYR2#198308-198512

56G,56G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iYR2#198308-198508

main42424-30040iYR2#,3#198508-198808

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iYR2#198308-198508

main42425-30031×2iYR2#,3#198508-198808

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-30040iYR2#,3#198508-198808

main42454-14010iYR2#198308-198508

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iYR21198308-198309

main90942-02047×8iYR2#,3#198309-198808

10 parts on this diagram · 2 diagrams in section
