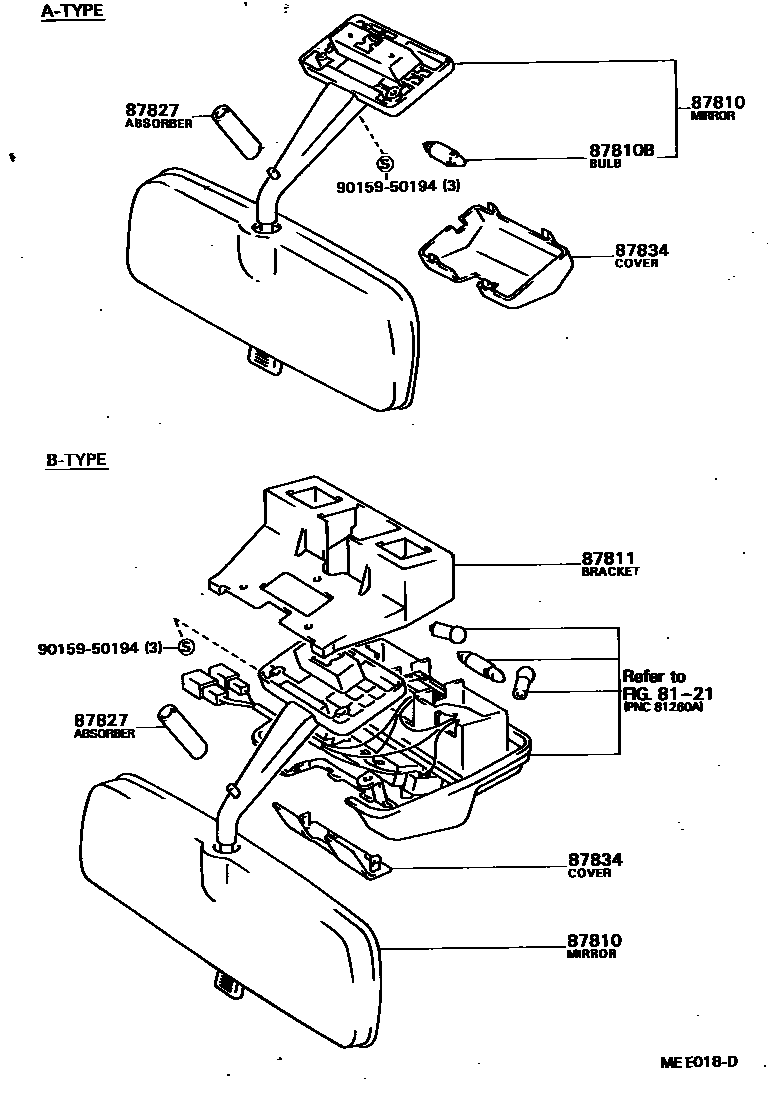

MIRROR

0001 1 0002 1 0003 1

8121INTERIOR LAMP

→ Go to FIG 81-21

87810MIRROR ASSY, INNER REAR VIEW

main87801-28010-03iYR2#,31..GL..(ARL,GEN)198408-198808

W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

main87801-28010-15iYR21..GL..(ARL,GEN)198408-198508

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main87801-28010-25iYR2#,31..GL..(ARL,GEN)198508-198808

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main87801-28020-03iCR21,YR2#..DLX..ARL198508-198808

NON-GLARE,GRAY,GRAY,TRIM1#,8#

main87801-28020-15iCR21,YR21..ARL,GEN198408-198508

NON-GLARE,BEIGE,BEIGE,TRIM4#

main87801-28020-25iCR21,YR2#..DLX..ARL198508-198808

NON-GLARE,BEIGE,BEIGE,TRIM4#

main87801-28030-03iCR21,YR2#..DLX..(ARL,GEN)198408-198808

GRAY,GRAY,TRIM1#,8#

main87801-28030-05iCR21,YR21..DLX..(ARL,GEN)198408-198508

BEIGE,BEIGE,TRIM4#

main87801-28030-25iCR21,YR2#..DLX..(ARL,GEN)198508-198808

BEIGE,BEIGE,TRIM4#

main87801-28040-05iYR21,31..DLX..EUR198606-198808

NON-GLARE,BEIGE,BEIGE,TRIM4#

main87801-28050-05iYR2#,31..DLX..EUR198606-198808

NON-GLARE,BEIGE,BEIGE,TRIM4#

main87801-87004-03iYR2#..GL..(ARL,GEN)198211-198408

W/SUN ROOF,GRAY,GRAY,TRIM1#

main87801-87004-05iYR2#..GL..(ARL,GEN)198211-198408

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main87801-87005-03iYR2#,31..GL..EUR198607-198808

W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

main87801-87005-05iYR2#,31..GL..EUR198607-198808

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main87801-87006-03iYR20..GL..EUR198211-198408

W/SUN ROOF,GRAY,GRAY,TRIM1#

main87801-87006-05iYR20..GL..EUR198211-198408

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main87801-87007-15iCR21,YR2#..RHD..DLX..(ARL,GEN)198211-198408

BEIGE,BEIGE,TRIM4#

main87801-87008-03iYR2#..GL..(ARL,GEN)198211-198408

NON-GLARE,GRAY,GRAY,TRIM1#

main87801-87008-05iCR21..ARL,GEN198305-198408

NON-GLARE,BEIGE,BEIGE,TRIM4#

main87801-87009-03iYR20..GL..EUR198211-198408

NON-GLARE,GRAY,GRAY,TRIM1#

main87801-87009-05iYR20..EUR198211-198408

NON-GLARE,BEIGE,BEIGE,TRIM4#

main87801-87010-05iCR21,YR20..DLX..EUR198211-198408

BEIGE,BEIGE,TRIM4#

main87801-87011-03iYR21..EUR198408-198508

NON-GLARE,GRAY,GRAY,TRIM1#

main87801-87011-15iYR21..EUR198408-198508

NON-GLARE,BEIGE,BEIGE,TRIM4#

main87801-87011-25iYR21..DLX..EUR198508-198606

NON-GLARE,BEIGE,BEIGE,TRIM4#

main87801-87012-03iYR21..DLX..EUR198408-198508

GRAY,GRAY,TRIM1#

main87801-87012-15iYR21..DLX..EUR198408-198508

BEIGE,BEIGE,TRIM4#

main87801-87013-03iYR21..GL..EUR198408-198607

W/SUN ROOF,GRAY,GRAY,TRIM1#,8#

main87801-87013-05iYR21..GL..EUR198408-198508

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

main87801-87013-15iYR21..GL..EUR198508-198607

W/SUN ROOF,BEIGE,BEIGE,TRIM4#

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-12100iCR21,YR2#198211-198508

12V 10W,12V 10W

87811BRACKET, INNER RR VIEW MIRROR

main87811-87001iYR2#,31..GL198211-198808

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-87001iCR21,YR2#198211-198408

L=41

main87828-87003iCR21,YR2#198211-198408

L=44

main87828-87005iCR21,YR2#198211-198408

L=49

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81241-87001iCR21,YR2#,31..DLX198508-198808

A-TYPE

main87834-87003-03iYR2#,31..GL198211-198808

B-TYPE,GRAY,GRAY,TRIM1#,8#

main87834-87003-05iYR2#..GL198211-198408

B-TYPE,BEIGE,BEIGE,TRIM4#

main87834-87003-15iYR21..GL198408-198508

B-TYPE,BEIGE,BEIGE,TRIM4#

main87834-87003-25iYR2#,31..GL198508-198808

B-TYPE,BEIGE,BEIGE,TRIM4#

9015950194

main90159-50194

7 parts on this diagram · 3 diagrams in section
