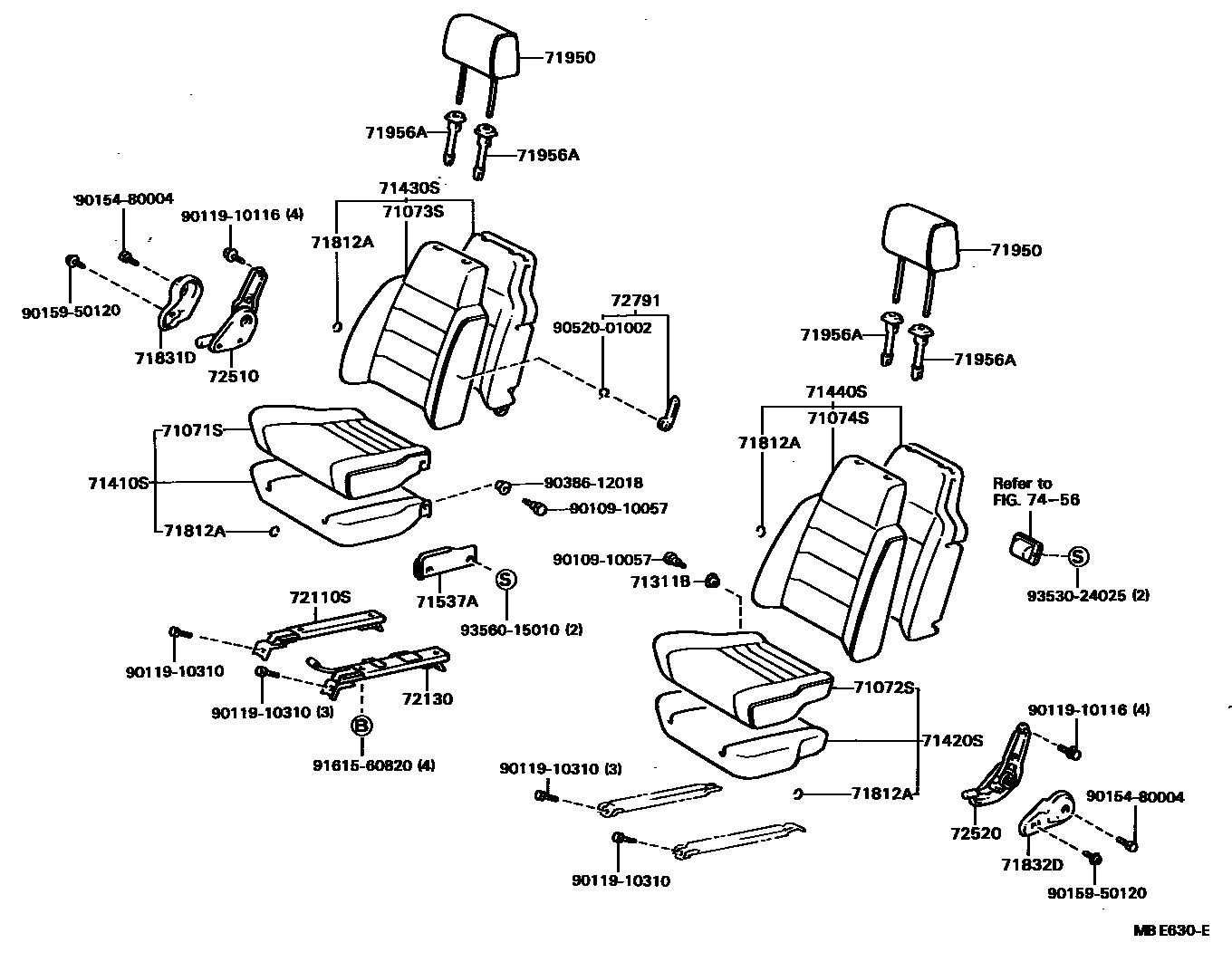

SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
W/*HEA,FB,GRAY,GRAY,TRIM1#
W/*HEA,FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,GRAY,TRIM1#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
W/*HEA,FB,GRAY,GRAY,TRIM1#
W/*HEA,FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,GRAY,TRIM1#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71311BBUSH (FOR FRONT SEAT HINGE PIN)
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
FB,WINE,WINE,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,GRAY,TRIM1#
FB,BROWN,BROWN,TRIM4#
W/*HEA,FB,GRAY,GRAY,TRIM1#
W/*HEA,FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
FB,WINE,WINE,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,GRAY,TRIM1#
FB,BROWN,BROWN,TRIM4#
W/*HEA,FB,GRAY,GRAY,TRIM1#
W/*HEA,FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
FB,WINE,WINE,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,GRAY,TRIM1#
FB,BROWN,BROWN,TRIM4#
W/*HEA,FB,GRAY,GRAY,TRIM1#
W/*HEA,FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
FB,WINE,WINE,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,GRAY,TRIM1#
FB,BROWN,BROWN,TRIM4#
W/*HEA,FB,GRAY,GRAY,TRIM1#
W/*HEA,FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,RED/MAROON,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,WINE,WINE,TRIM4#
FB,BLUE,BLUE,TRIM1#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,BROWN,BROWN,TRIM4#
FB,BLUE,BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71537APROTECTOR, FRONT SEAT CUSHION
WINE,RED/MAROON,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM1#
BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
71812ARING, HOG, SMALL (FOR FRONT SEAT)
71831DCOVER, FRONT SEAT HINGE, RH
71832DCOVER, FRONT SEAT HINGE, LH
71950HEADREST ASSY, FRONT SEAT
WINE,WINE,TRIM4#
BEIGE,BEIGE,TRIM4#
WINE,RED/MAROON,TRIM4#
BLUE,BLUE,TRIM1#
WINE,RED/MAROON,TRIM4#
BLUE,BLUE,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
71956ASUPPORT, FRONT SEAT HEADREST
W(LOCK),W/LOCK,GRAY,SHADOW GRAY,TRIM1#
sub71930-10060
W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY,TRIM1#
sub71931-10010
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72130TRACK ASSY, RH SEAT, INNER
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
72791LEVER, LUMBAR SUPPORT
7456
9010910057
main90109-10057
9011910116
main90119-10116
9011910310
main90119-10310
9015480004
main90154-80004
9015950120
main90159-50120
9038612018
main90386-12018
9052001002
main90520-01002
9161560820
main91615-60820
9353024025
main93530-24025
9356015010
main93560-15010
31 parts on this diagram · 16 diagrams in section
