REAR AXLE SHAFT & HUB

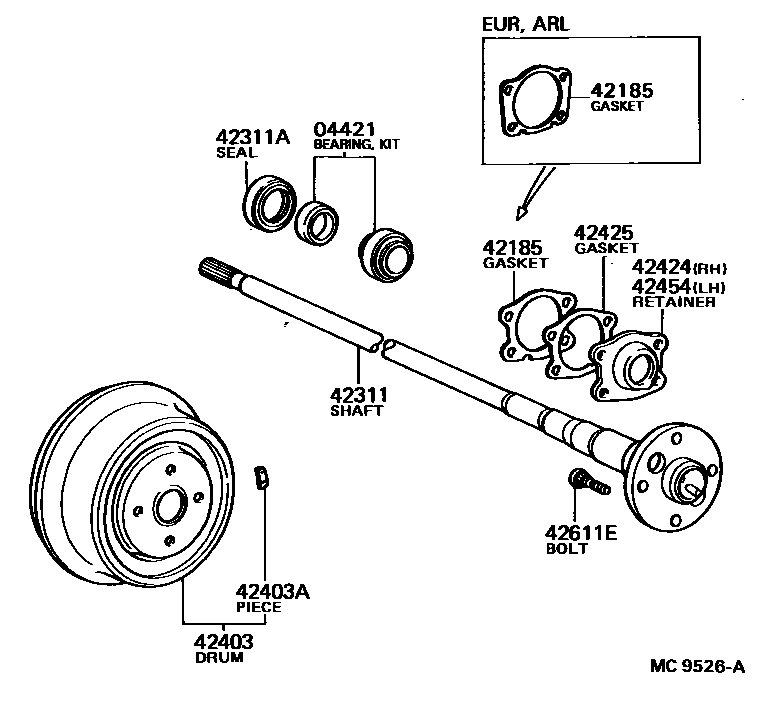

Parts diagram

04421BEARING KIT, REAR AXLE SHAFT

main04421-27010×2i198211-198808

main04421-30030×2i198508-198808

42185GASKET, REAR AXLE HOUSING END

main42185-14020×2i198211-198808

main42185-28010×2i198211-198808

main42185-30061×2i198508-198808

42311SHAFT, REAR AXLE

main42311-22110×2i198211-198808

main42311-28020×2i198508-198808

main42311-28030×2i198601-198808

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059×2i198211-198808

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14061×2i198608-198808

main42431-27020×2i198211-198508

main42431-28020×2i198211-198808

main42431-28030×2i198601-198808

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01020×2i198211-198508

20G,20G

main90937-01021×2i198508-198608

40G,40G

main90937-01023×2i198211-198508

10G,10G

main90937-01032×2i198211-198508

30G,30G

main90937-01033×2i198508-198608

50G,50G

main90937-01034×2i198211-198508

60G,60G

main90937-01100×2i198211-198512

40.5G,40.5G

main90937-01117×2i198211-198808

10G,10G

main90937-01118×2i198211-198808

20G,20G

main90937-01119×2i198211-198808

30G,30G

main90937-01146×2i198211-198512

25G,50G

main90937-01178×2i198211-198512

56G,56G

main90937-01287×2i198608-198808

10G,10G

main90937-01288×2i198608-198808

20G,20G

main90937-01289×2i198608-198808

30G,30G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020i198211-198808

main42424-30040i198508-198808

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2i198211-198808

main42425-30031×2i198508-198808

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-30040i198708-198808

W/LSD

main42454-14010i198211-198808

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8i198211-198309

main90942-02047×8i198309-198808

10 parts on this diagram · 2 diagrams in section
