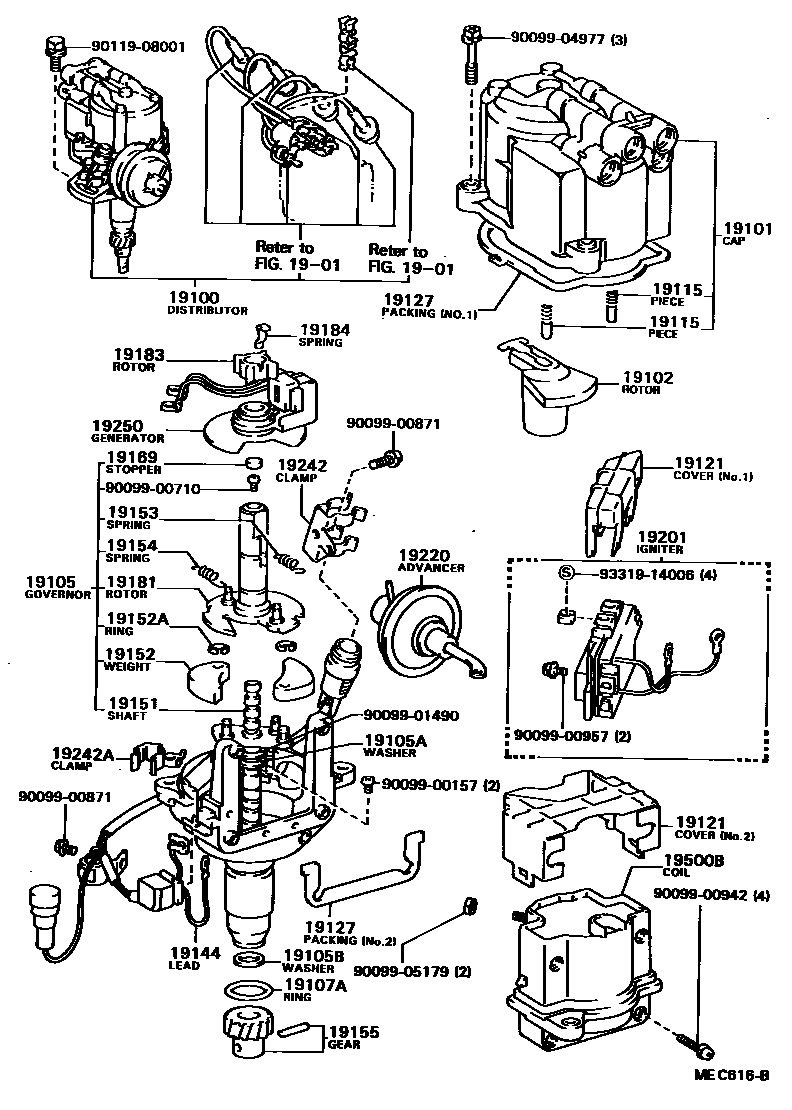

DISTRIBUTOR

0001 1 0002 1

1901

19100DISTRIBUTOR ASSY

main19030-71010i3Y#..YR21..ARL198508-198808

main19030-71060i2Y#,3Y..YR2#198211-198408

main19030-72020i3Y#..YR21..ARL198401-198408

main19040-73010i4YEC..YR22,31198508-198808

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-71010i2Y#,3Y#,4YEC..YR2#,31198211-198808

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16020i3Y..YR21..EUR198508-198601

main19102-16040i3Y#..YR21..ARL,GEN198708-198808

main19102-16060i4YEC..YR22,31198601-198808

sub19102-73180

main19102-35160i4YEC..YR22198508-198601

main19102-63010i2Y,3Y..YR2#198406-198408

main19102-73020i3Y#..YR21..ARL198406-198408

main19102-73021i3Y..YR21..EUR198601-198708

19105GOVERNOR SUB-ASSY

main19105-71010i3Y#..YR21..ARL198508-198808

main19105-71060i3Y..YR21..GEN198408-198808

main19105-72020i3Y#..YR21..ARL198401-198408

19105AWASHER(FOR GOVERNOR SHAFT THRUST)

main90099-01486×2i2Y#,3Y#,4YEC..YR2#,31198211-198808

T=0.3,T=0.3

main90099-01487×2i2Y#,3Y#,4YEC..YR2#,31198211-198808

T=0.4,T=0.4

main90099-01488×2i2Y#,3Y#,4YEC..YR2#,31198211-198808

T=0.6,T=0.6

main90099-01489×2i2Y#,3Y#,4YEC..YR2#,31198211-198808

T=0.5,T=0.5

19105BWASHER, NO.2(FOR GOVERNOR SHAFT THRUST)

main90099-01429i2Y#,3Y#,4YEC..YR2#,31198211-198808

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i2Y#,3Y#,4YEC..YR2#,31198211-198808

sub90099-14090

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010×2i2Y#..YR20198211-198312

main19115-63010×2i2Y#,3Y#..YR2#198312-198505

main19115-71010×2i3Y#,4YEC..YR2#,31198505-198705

19121COVER, DUST PROOF

main19121-63010i2Y#,3Y#..YR20,21198211-198808

NO.1

main19121-63040i2Y#,3Y#..YR20,21198211-198808

NO.2

19127PACKING, DUST PROOF

main19127-63010i2Y#,3Y#,4YEC..YR2#,31198211-198808

NO.1

main19127-63020i2Y#,3Y#,4YEC..YR2#,31198211-198808

NO.2

19144LEAD, DISTRIBUTOR BREAKER

main19144-71011i3Y#..YR21..ARL198508-198808

sub19144-71020

main19144-71060i2Y#..YR20198211-198312

main19144-71061i2Y#,3Y#..YR2#198312-198508

main19144-73020i4YEC..YR22,31198508-198808

19151SHAFT, GOVERNOR

main19151-71010i2Y#,3Y#..YR20,21198211-198808

19152WEIGHT, GOVERNOR

main19152-35030×2i2Y#..YR20198211-198312

main19152-63010×2i3Y#..YR21198708-198808

main19152-71010×2i3Y#..YR21198508-198708

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07109×2i2Y#..YR20198211-198312

main90099-07122×2i2Y#,3Y#..YR20,21198312-198808

19153SPRING, GOVERNOR, A

main19153-71060i2Y#,3Y..YR2#198211-198408

main19153-72020i3Y..YR21..EUR198508-198808

19154SPRING, GOVERNOR, B

main19153-71060i2Y#,3Y..YR2#198211-198408

main19153-72020i3Y#..YR21..ARL,EUR198408-198508

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-71010i2Y#,3Y#,4YEC..YR2#,31198211-198808

sub19195-72090

19169STOPPER, CAM GREASE

main19169-32010i2Y#,3Y#..YR20,21198211-198705

main19169-63011i3Y#..YR21198705-198808

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-71010i3Y#..YR21..ARL198508-198808

sub19181-72011

main19181-71060i2Y#,3Y..YR2#198211-198408

sub19181-73020

main19181-72020i3Y..YR21..EUR198508-198808

19183ROTOR, SIGNAL

main19183-63030i2Y#,3Y#..YR20,21198211-198808

19184SPRING, ROTOR SET

main19184-63010i2Y#,3Y#..YR20,21198211-198808

19201IGNITER

main89620-32020i2Y#,3Y#..YR20,21198211-198808

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-71050i3Y#..YR21..ARL198508-198808

main19220-71060i2Y#,3Y..YR2#198211-198408

main19220-72020i3Y#..YR21..ARL,EUR198408-198508

19242CLAMP, CORD

main19242-71010i2Y#,3Y#..YR20,21198211-198808

main19242-73020i4YEC..YR22,31198508-198808

19242ACLAMP, CORD, NO.2

main19242-71060i2Y#,3Y#..YR2#198211-198508

19250GENERATOR ASSY, SIGNAL

main19251-63010i2Y#..YR20198211-198312

main19251-63011i2Y#,3Y#..YR20,21198312-198808

19500BCOIL ASSY, IGNITION

main90919-02135i4YEC..YR22,31198508-198808

main90919-02139i2Y#,3Y#..YR20,21198211-198808

9009900157

main90099-00157

9009900710

main90099-00710

9009900871

main90099-00871

9009900942

main90099-00942

9009900957

main90099-00957

9009901490

main90099-01490

9009904977

main90099-04977

9009905179

main90099-05179

9011908001

main90119-08001

9331914006

main93319-14006

38 parts on this diagram · 2 diagrams in section
