SEAT & SEAT TRACK

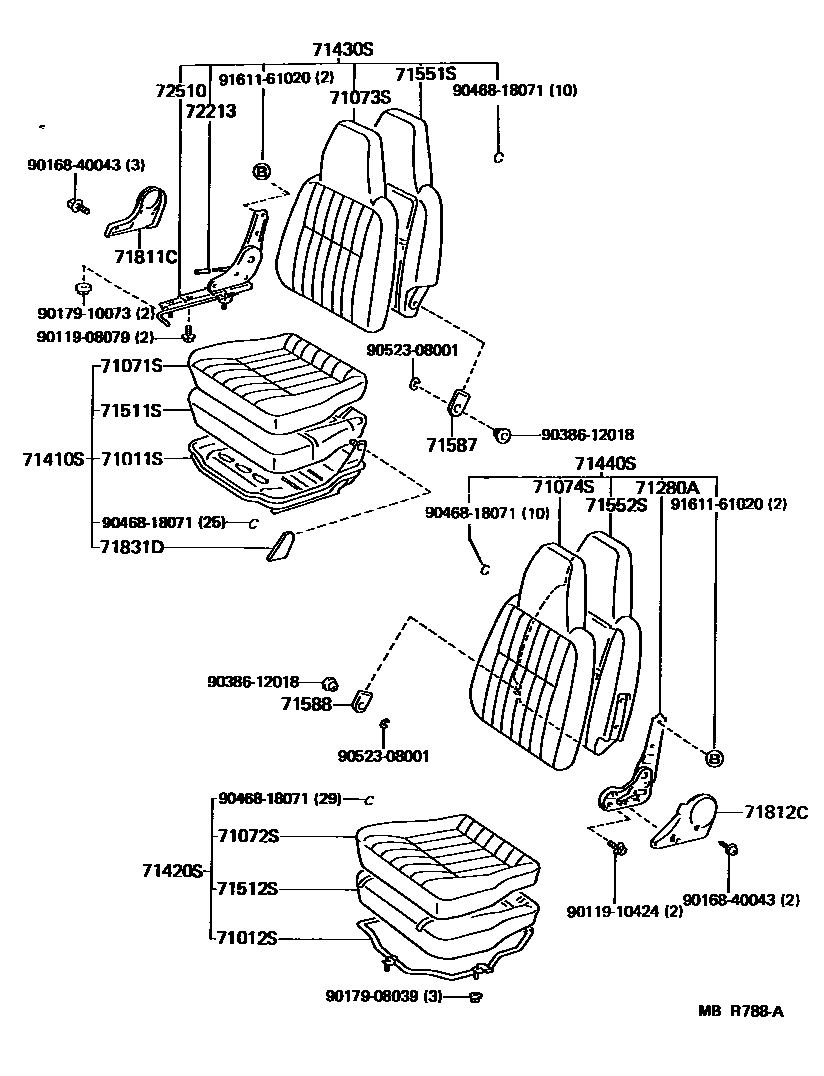

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-95706i198808-199201
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71012-95705i198808-199201
main71012-95708i198808-199201
DENMARK SPEC
main71012-95709i198808-199201
AUSTRIA SPEC
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-95721-03i198808-199201
GRAY,TRIM1#
main71071-95721-16i198808-199201
SABLE,TRIM4#
main71071-95723-03i198808-199201
FINLAND SPEC & W(FABRIC SEAT),GRAY,TRIM1#
main71071-95741-03i198808-199201
AUSTRIA SPEC,GRAY,TRIM1#; GRAY,TRIM1#
main71071-95742-03i198808-199201
FINLAND SPEC,GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-95747-03i198808-199201
DENMARK SPEC,GRAY,TRIM1#
main71072-95750-03i198809-199201
W(FABRIC SEAT),GRAY,TRIM1#
main71072-95750-16i198808-199201
SABLE,TRIM4#
main71072-95752-03i198808-199201
FINLAND SPEC & W(FABRIC SEAT),GRAY,TRIM1#
main71072-95764-03i198808-199201
AUSTRIA SPEC,GRAY,TRIM1#; GRAY,TRIM1#
main71072-95765-03i198808-199201
GRAY,TRIM1#
main71072-95766-03i198808-199201
FINLAND SPEC,GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-95721-03i198808-199201
DENMARK SPEC OR AUSTRIA SPEC OR W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#; GRAY,TRIM1#; W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71073-95721-16i198808-199201
SABLE,TRIM4#
main71073-95724-03i198808-199201
W(FABRIC SEAT),GRAY,TRIM1#
main71073-95725-03i198808-199201
FINLAND SPEC & W(FABRIC SEAT),GRAY,TRIM1#
main71073-95744-03i198808-199201
GRAY,TRIM1#
main71073-95746-03i198808-199201
GRAY,TRIM1#
main71073-95747-03i198808-199201
GRAY,TRIM1#; W(SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71073-95748-03i198808-199201
FINLAND SPEC,GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-95727-03i198808-199201
GRAY,TRIM1#; W(FABRIC SEAT & SEPARATE HEADREST) OR AUSTRIASPEC,GRAY,TRIM1#; W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71074-95727-16i198808-199201
SABLE,TRIM4#
main71074-95731-03i198808-199201
W(FABRIC SEAT),GRAY,TRIM1#
main71074-95732-03i198808-199201
FINLAND SPEC & W(FABRIC SEAT),GRAY,TRIM1#
main71074-95743-03i198808-199201
DENMARK SPEC,GRAY,TRIM1#
main71074-95744-03i198808-199201
DENMARK SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71074-95751-03i198808-199201
GRAY,TRIM1#
main71074-95753-03i198808-199201
GRAY,TRIM1#
main71074-95755-03i198808-199201
GRAY,TRIM1#; W(SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71074-95756-03i198808-199201
FINLAND SPEC,GRAY,TRIM1#
71280AHINGE ASSY, FRONT SEATBACK, LH
main71320-95701-01i198808-199201
BLACK,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-95773-03i198808-198809
***,W(FABRIC SEAT),GRAY,TRIM1#
main71410-95773-16i198808-199201
***,SABLE,TRIM4#
main71410-95775-03i198808-199201
***,FINLAND SPEC & W(FABRIC SEAT),GRAY,TRIM1#
main71410-95G03-03i198808-199201
***,AUSTRIA SPEC,GRAY,TRIM1#; ***,GRAY,TRIM1#
main71410-95G04-03i198808-199201
***,FINLAND SPEC,GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-95744-03i198808-199201
***,DENMARK SPEC,GRAY,TRIM1#
main71420-95747-03i198808-199201
***,GRAY,TRIM1#
main71420-95747-16i198808-199201
***,SABLE,TRIM4#
main71420-95749-03i198808-199201
***,FINLAND SPEC & W(FABRIC SEAT),GRAY,TRIM1#
main71420-95761-03i198808-199201
***,AUSTRIA SPEC,GRAY,TRIM1#; ***,GRAY,TRIM1#
main71420-95762-03i198808-199201
***,GRAY,TRIM1#
main71420-95763-03i198808-199201
***,FINLAND SPEC,GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-95730-03i198808-199201
***,DENMARK SPEC OR AUSTRIA SPEC OR W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#; ***,GRAY,TRIM1#; ***,W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71430-95730-16i198808-199201
***,SABLE,TRIM4#
main71430-95733-03i198808-199201
***,W(FABRIC SEAT),GRAY,TRIM1#
main71430-95734-03i198808-199201
***,FINLAND SPEC & W(FABRIC SEAT),GRAY,TRIM1#
main71430-95752-03i198808-199201
***,GRAY,TRIM1#
main71430-95755-03i198808-199201
***,GRAY,TRIM1#
main71430-95756-03i198808-199201
***,GRAY,TRIM1#; ***,W(SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71430-95757-03i198808-199201
***,FINLAND SPEC,GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-95735-03i198808-199201
***,GRAY,TRIM1#; ***,W(FABRIC SEAT & SEPARATE TYPE HEADREST) OR AUSTRIA SPEC,GRAY,TRIM1#; ***,W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71440-95735-16i198808-199201
***,SABLE,TRIM4#
main71440-95739-03i198808-199201
***,W(FABRIC SEAT),GRAY,TRIM1#
main71440-95740-03i198808-199201
***,FINLAND SPEC & W(FABRIC SEAT),GRAY,TRIM1#
main71440-95752-03i198808-199201
***,DENMARK SPEC,GRAY,TRIM1#
main71440-95753-03i198808-199201
***,DENMARK SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71440-95760-03i198808-199201
***,GRAY,TRIM1#
main71440-95763-03i198808-199201
***,GRAY,TRIM1#
main71440-95765-03i198808-199201
***,GRAY,TRIM1#; ***,W(SEPARATE TYPE HEADREST),GRAY,TRIM1#
main71440-95766-03i198808-199201
***,FINLAND SPEC,GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-95701i198808-199201
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-95702i198808-199201
main71512-95705i198808-199201
AUSTREA SPEC
main71512-95706i198808-199201
DENMARK SPEC
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71505-95702i198808-199201
main71505-95703i198808-199201
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71506-95702i198808-199201
main71506-95706i198808-199201
AUSTREA SPEC
main71506-95708i198808-199201
DENMARK SPEC
71587PROTECTOR, FRONT SEATBACK EDGE
main71588-95700-13i198808-199201
GRAY,TRIM1#
main71588-95700-16i198808-199201
SABLE,TRIM4#
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71588-95700-13i198808-199201
GRAY,TRIM1#
main71588-95700-16i198808-199201
SABLE,TRIM4#
71811CCOVER, RECLINING ADJUSTER, RH
main71801-95700-03i198808-199201
GRAY,TRIM1#
main71801-95700-16i198808-199201
SABLE,TRIM4#
71812CCOVER, RECLINING ADJUSTER, LH
main71802-95700-03i198808-199201
GRAY,TRIM1#
main71802-95700-16i198808-199201
SABLE,TRIM4#
main71812-95700-03i198808-199201
GRAY,TRIM1#
71831DCOVER, FRONT SEAT HINGE, RH
main71831-95700-13i198808-199201
GRAY,TRIM1#
main71831-95700-16i198808-199201
SABLE,TRIM4#
72213KNOB, SEAT TRACK ADJUSTING HANDLE
main72213-95700-03i198909-199201
GRAY,TRIM1#
main72213-95700-06i198909-199201
SABLE,TRIM4#
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
main72510-95708-03i198808-199201
GRAY,TRIM1#
main72510-95708-16i198808-199201
SABLE,TRIM4#
9011908079
main90119-08079
9011910424
main90119-10424
9016840043
main90168-40043
9017908039
main90179-08039
9017910073
main90179-10073
9038612018
main90386-12018
9046818071
main90468-18071
9052308001
main90523-08001
9161161020
main91611-61020

31 parts on this diagram · 7 diagrams in section
