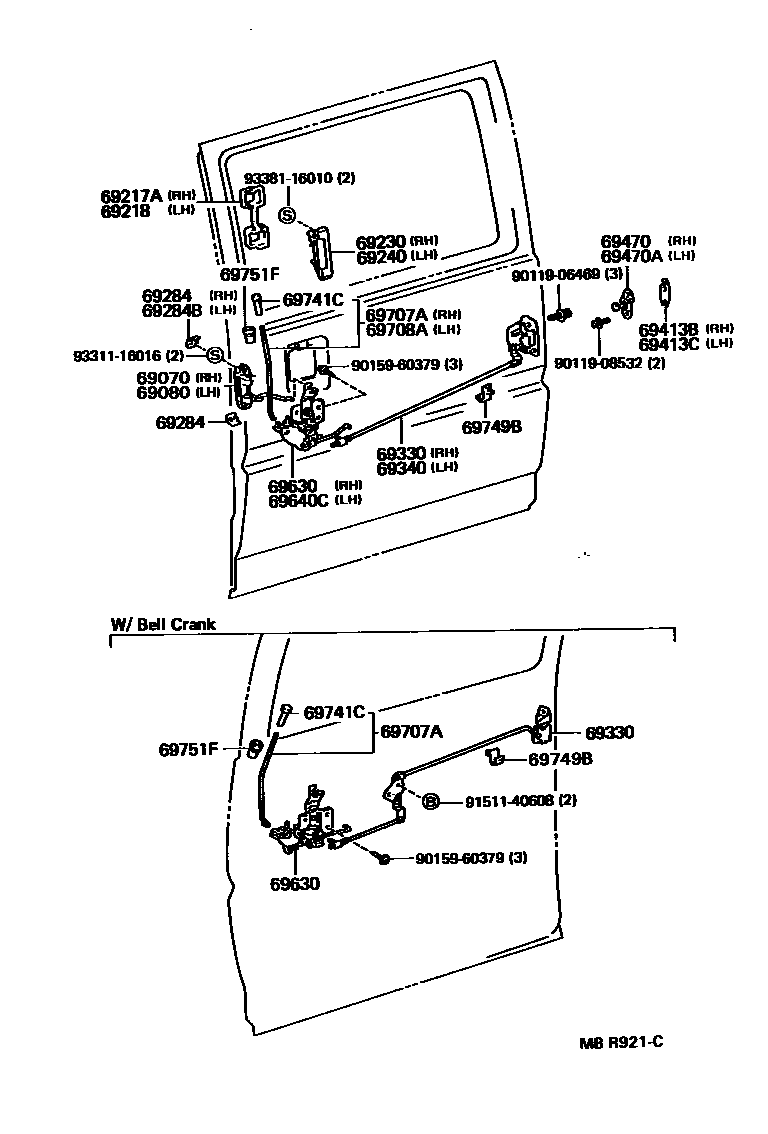

REAR DOOR LOCK & HANDLE

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-95700-03iCM3#,KM3#..LHD198808-199201

GRAY,TRIM1#

main69070-95700-16iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-95700-03iCM36,KM36..RHD;CM36,KM36..V5D198808-199201

GRAY,TRIM1#

sub69080-95700

69217ACOVER, SLIDE DOOR OUTSIDE HANDLE, RH

main69217-95J00iCM3#,KM3#..LHD198808-199201

69218COVER, SLIDE DOOR OUTSIDE HANDLE, LH

main69218-95J00iCM36,KM36..RHD;CM36,KM36..V5D198808-199201

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-95J00iCM3#,KM3#..LHD198808-199201

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-95J00iCM36,KM36..RHD;CM36,KM36..V5D198808-199201

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-23iCM3#,KM3#..LHD198808-199201

GRAY,TRIM1#

main69284-87001-26iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

69284BPLUG, SLIDE DOOR INSIDE HANDLE, LH

main69284-87001-23iCM36,KM36..RHD;CM36,KM36..V5D198808-199201

GRAY,TRIM1#

69330LOCK ASSY, REAR DOOR, RH

main69330-95702iCM36,KM36..LHD..02S198808-199201

W/O(REAR NO.1 SEAT)

main69330-95703iCM3#,KM3#..VSG198808-199201

NORWAY SPEC & W/O(REAR NO.1 SEAT)

69340LOCK ASSY, REAR DOOR, LH

main69340-95702iCM36,KM36..RHD;CM36,KM36..V5D198808-199201

69413BSHIM, DOOR LOCK STRIKER

main69413-87002iCM3#,KM3#..LHD198808-199201

sub69413-28020

69413CSHIM, DOOR LOCK STRIKER, LH

main69413-87002iCM36,KM36..RHD;CM36,KM36..V5D198808-199201

sub69413-28020

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-95701iCM3#,KM3#..LHD198808-199201

69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH

main69470-95701iCM36,KM36..RHD;CM36,KM36..V5D198808-199201

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95706iCM3#,KM3#..LHD198808-199201

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-95707iCM36,KM36..RHD;CM36,KM36..V5D198808-199201

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95700-03iKM30..DLX;KM36..LHD..V4D..02S198808-199201

*FRG,GRAY,TRIM1#

main69707-95700-16iKM30..DLX198808-199201

*FRG,SABLE,TRIM4#

main69707-95701-03iCM3#,KM3#..LHD198808-199201

GRAY,TRIM1#

sub69707-95701

main69707-95701-06iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

sub69707-95701

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95701-03iCM36,KM36..RHD;CM36,KM36..V5D198808-199201

GRAY,TRIM1#

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-28010-B1iCM36,KM36..LHD198808-199201

SHADOW GRAY,TRIM1#,RH

sub69741-28010

main69741-28010-B1iCM36,KM36..LHD198808-199201

SHADOW GRAY,TRIM1#

sub69741-28010

main69741-28010-B1iCM36,KM36..LHD198808-199201

SHADOW GRAY,TRIM1#,LH

sub69741-28010

main69741-28010-E1iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

sub69741-28010

main69741-95703-03iKM30..DLX;KM36..LHD..V4D..02S198808-199201

*FRG,GRAY,TRIM1#

sub69741-95703

main69741-95703-16iKM30..DLX198808-199201

*FRG,SABLE,TRIM4#

sub69741-95703

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20010iCM3#,KM3#..VSG198808-199201

main69749-95700iCM36,KM36..LHD198808-199201

RH

main69749-95700iCM36,KM36..LHD198808-199201

LH

main69749-95700iCM36,KM36..LHD198808-199201

*FRG

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-95701-03iCM36,KM36..LHD198808-199201

GRAY,TRIM1#,RH

sub69751-95701

main69751-95701-03iCM36,KM36..LHD198808-199201

GRAY,TRIM1#

sub69751-95701

main69751-95701-03iCM36,KM36..LHD198808-199201

GRAY,TRIM1#,LH

sub69751-95701

main69751-95701-03iCM36,KM36..LHD198808-199201

*FRG,GRAY,TRIM1#

sub69751-95701

main69751-95701-16iCM30,KM30..DLX198808-199201

SABLE,TRIM4#

sub69751-95701

9011906469

main90119-06469

9011908532

main90119-08532

9015960379

main90159-60379

9151140608

main91511-40608

9331116016

main93311-16016

9338116010

main93381-16010

27 parts on this diagram · 1 diagram in section
