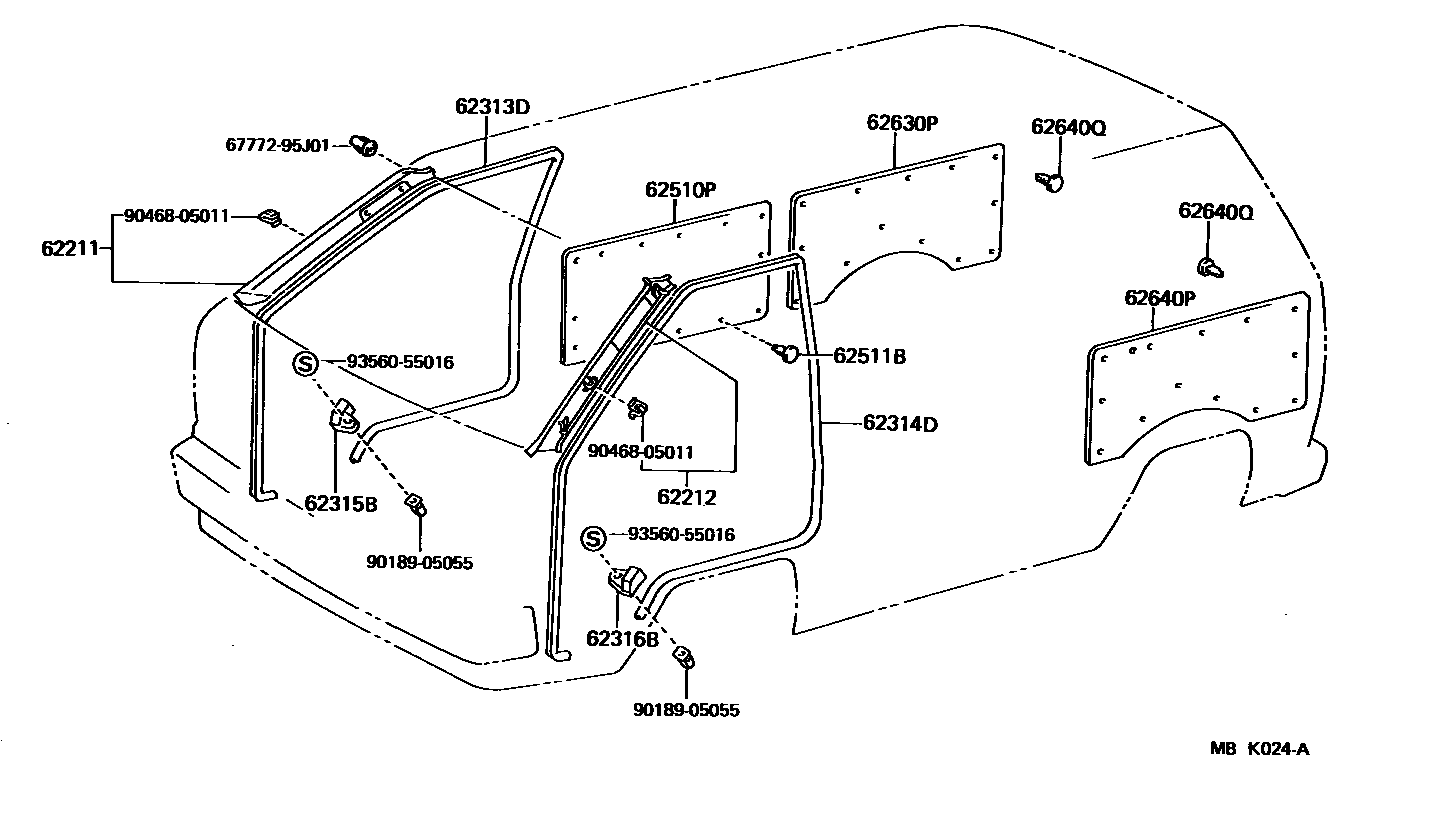

INSIDE TRIM BOARD
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62313DTRIM, FRONT DOOR OPENING, RH
GRAY,TRIM1#
SABLE,TRIM4#
62314DTRIM, FRONT DOOR OPENING, LH
GRAY,TRIM1#
SABLE,TRIM4#
62315BCOVER, FRONT DOOR OPENING TRIM, RH
62316BCOVER, FRONT DOOR OPENING TRIM, LH
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62630PPANEL ASSY, QUARTER TRIM, REAR RH
GRAY,TRIM1#
GRAY,TRIM1#
SABLE,TRIM4#
W(ELR 3-POINT TYPE REAR SEAT BELT),GRAY,TRIM1#
W(ELR 3-POINT TYPE REAR SEAT BELT),SABLE,TRIM4#
W(FOLD TYPE REAR NO.1 SEAT & REAR HEATER-SIDETRIM BUILT-IN TIPE),GRAY,TRIM1#
W(FOLD TYPE REAR NO.1 SEAT & REAR HEATER-SIDETRIM BUILT-IN TIPE),SABLE,TRIM4#
62640PPANEL ASSY, QUARTER TRIM, REAR LH
GRAY,TRIM1#
GRAY,TRIM1#
SABLE,TRIM4#
W(FOLD TYPE REAR NO.1 SEAT & REAR HEATER-SIDETRIM BUILT-IN TYPE);W(ELR 3-POINT TYPE REAR NO.1 SEAT BELT),GRAY,TRIM1#
W(FOLD TYPE REAR NO.1 SEAT & REAR HEATER-SIDETRIM BUILT-IN TYPE);W(ELR 3-POINT TYPE REAR NO.1 SEAT BELT),SABLE,TRIM4#
GRAY,TRIM1#
62640QCLIP (FOR QUARTER TRIM REAR PANEL)
6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J01
9018905055
main90189-05055
9046805011
main90468-05011
9356055016
main93560-55016
15 parts on this diagram · 4 diagrams in section
