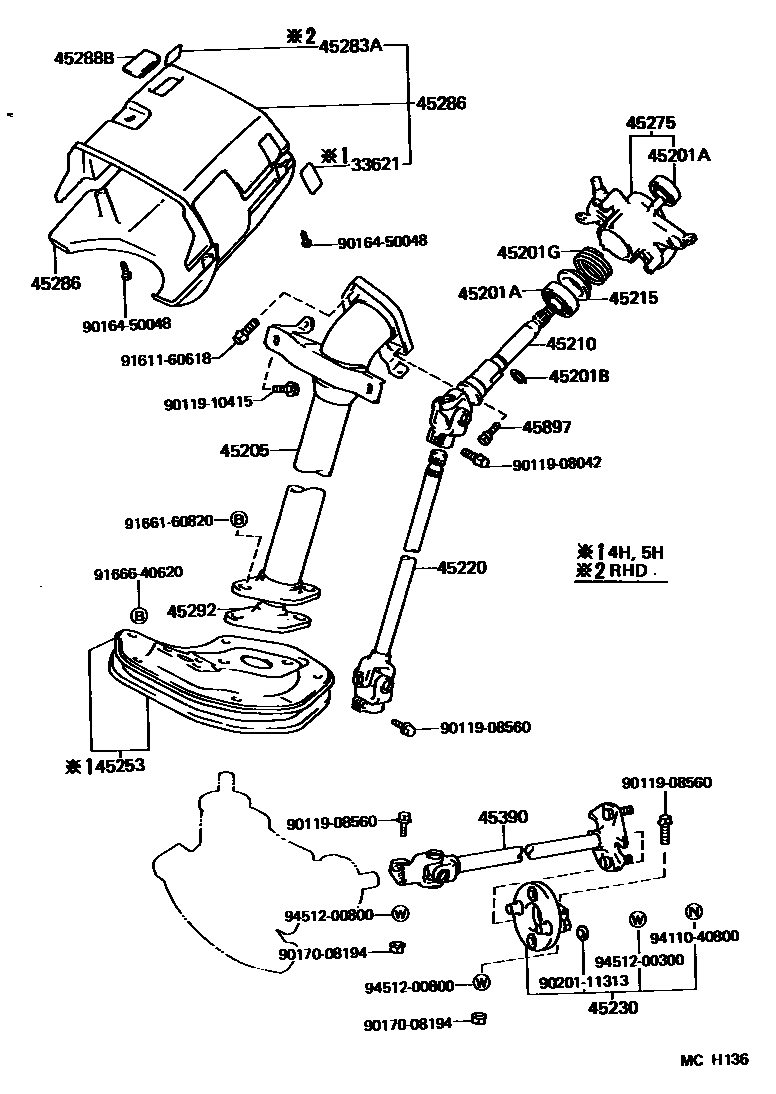

STEERING COLUMN & SHAFT

0001 1 0002 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iKM36..4H198808-199201

main33621-36030iCM36..5H198808-199201

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCM3#,KM3#198808-199201

UPR

main90363-28001iCM3#,KM3#198808-199201

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM3#,KM3#198808-199201

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iCM3#,KM3#198808-199201

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27090iCM36,KM36..RHD198808-199201

main45205-27110iCM3#,KM3#..LHD198808-199201

45210SHAFT ASSY, STEERING MAIN

main45210-22050iCM3#,KM3#198808-199201

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iCM3#,KM3#198808-199201

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-27110iCM36,KM36..RHD198808-199201

main45220-27120iCM3#,KM3#..LHD198808-199201

45230COUPLING ASSY, FLEXIBLE

main45230-27080iCM3#,KM3#198808-199201

45253COVER, STEERING COLUMN HOLE

main45253-27090iCM36,KM36..4H,5H198808-199201

45275BRACKET, STEERING COLUMN, UPPER

main45280-27101iCM36,KM36..RHD198808-199201

main45280-27121iCM36,KM36..4H,5H198808-199201

main45280-27131iCM3#,KM3#..LHD..(4F,5F)198808-199201

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iCM36,KM36..RHD198808-199201

45286COVER, STEERING COLUMN

main45286-27171-13iCM36,KM36..RHD198808-199201

GRAY,TRIM1#,UPR

main45286-27190-03iKM36..4H198808-199201

GRAY,TRIM1#,UPR

main45286-27200-03iCM36..5H198808-199201

GRAY,TRIM1#,UPR

main45286-27211-03iCM3#,KM3#..LHD..(4F,5F)198808-199201

GRAY,TRIM1#,UPR

main45286-27211-06iCM30,KM30..DLX198808-199201

SABLE,TRIM4#,UPR

main45287-27080-13iCM36,KM36..RHD198808-199201

GRAY,TRIM1#,LWR

main45287-27100-03iCM36,KM36..4H,5H198808-199201

GRAY,TRIM1#,LWR

main45287-27110-03iCM3#,KM3#..LHD..(4F,5F)198808-199201

GRAY,TRIM1#,LWR

main45287-27110-16iCM30,KM30..DLX198808-199201

SABLE,TRIM4#,LWR

45288BCOVER, STEERING COLUMN, UPPER

main45288-27030-03iCM36,KM36..RHD198808-199201

GRAY,TRIM1#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-27010iCM3#,KM3#198808-199201

45390SHAFT ASSY, STEERING TORQUE

main45390-27060iCM3#,KM3#198808-199201

45897BOLT, STEERING LOCK SET

main45897-14010iCM3#,KM3#198808-199201

9011908042

main90119-08042

9011908560

main90119-08560

9011910415

main90119-10415

9016450048

main90164-50048

9017008194

main90170-08194

9020111313

main90201-11313

9161160618

main91611-60618

9166160820

main91661-60820

9166640620

main91666-40620

9411040800

main94110-40800

9451200300

main94512-00300

9451200800

main94512-00800

29 parts on this diagram · 2 diagrams in section
