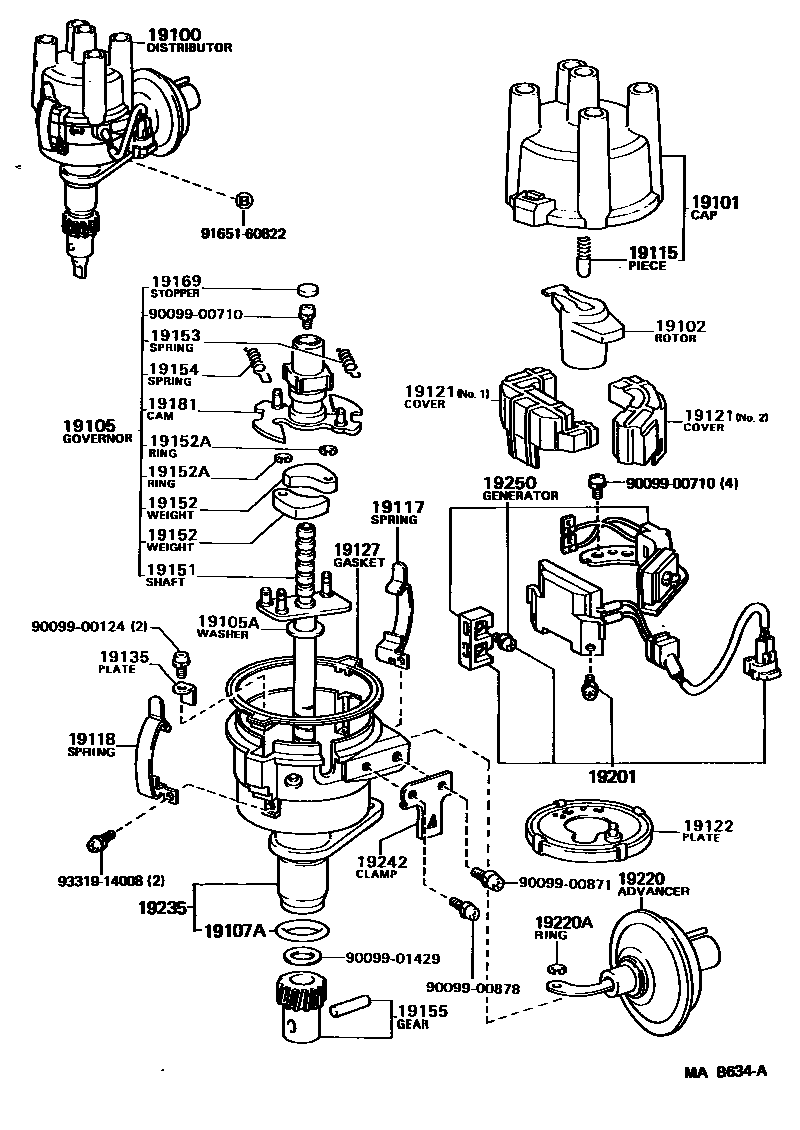

DISTRIBUTOR
19100DISTRIBUTOR ASSY
AUSTRIA & SWITZERLAND SPEC; AUSTRIA SPEC
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19105GOVERNOR SUB-ASSY
main19105-13101i5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S; 5K..KM36..5F..05S; 5K..KM36..V5D..5F198808-198902
AUSTRIA SPEC; SWITZERLAND SPEC; SWITZERLAND SPEC OR AUSTRIA SPEC
19105AWASHER(FOR GOVERNOR SHAFT THRUST)
T=2.5
T=2.7
T=2.9
T=2.3
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19117SPRING, DISTRIBUTOR CAP, A
19118SPRING, DISTRIBUTOR CAP, B
19121COVER, DUST PROOF
NO.2
NO.1
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
19135PLATE, HOLDER
19151SHAFT, GOVERNOR
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
AUSTRIA & SWITZERLAND SPEC; AUSTRIA SPEC
19154SPRING, GOVERNOR, B
AUSTRIA & SWITZERLAND SPEC; AUSTRIA SPEC
19155GEAR, SPIRAL, DISTRIBUTOR
19169STOPPER, CAM GREASE
19181ROTOR, DISTRIBUTOR, SIGNAL
AUSTRIA & SWITZERLAND SPEC; SWITZERLAND SPEC
AUSTRIA & SWITZERLAND SPEC
19201IGNITER
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
AUSTRIA & SWITZERLAND SPEC; AUSTRIA SPEC
19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
19235HOUSING, DISTRIBUTOR
19242CLAMP, CORD
19250GENERATOR ASSY, SIGNAL
9009900124
main90099-00124
9009900710
main90099-00710
9009900871
main90099-00871
9009900878
main90099-00878
9009901429
main90099-01429
9165160822
main91651-60822
9331914008
main93319-14008
34 parts on this diagram · 1 diagram in section
