1605

16321INLET, WATER

main16321-64040i198808-199201

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i198808-199201

sub16325-63011

16331OUTLET, WATER

main16304-13020i198904-199201

sub16304-13050

main16331-13060i198808-198904

sub16304-13H00

main16331-64050i198808-199201

16331ATHERMOSTAT

main90916-03046i198808-199201

*WAX 82-95

main90916-03078i198808-199201

*WAX 88-100

16331BPLUG(FOR WATER OUTLET)

main90344-53011i198808-198910

main90345-53030i198910-199201

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-63010i198808-199011

main16401-64500i199011-199201

sub16401-64501

main16401-71010i198808-199201

sub16401-54750

16331GBOLT, STUD(FOR WATER INLET)

main92122-60816i198808-199201

16341GASKET, WATER OUTLET

main16341-13011i198904-198912

sub16341-13040

main16341-13030i198808-198904

main16341-13040i198912-199201

main16341-64010i198808-198903

sub16341-64020

main16341-64020i198903-199110

sub16341-64021

main16341-64021i199110-199201

16345GASKET, WATER OUTLET PIPE

main16345-64010i198808-199008

sub16345-64030

main16345-64030i199008-199201

16361FAN

main16361-26040i198808-199201

main16361-38010i198808-199201

16381BAR, FAN BELT ADJUSTING

main16381-24011i198808-199201

main16381-64030i198808-199201

16382LOCK, FAN BELT ADJUSTING

main16382-64010i199008-199201

16385SLIDER, FAN BELT ADJUSTING

main16385-64011i198808-199201

16400RADIATOR ASSY

main16400-13380i198808-199201

sub16400-13400

main16400-64331i198808-199201

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i198808-199201

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i198808-199201

16470TANK ASSY, RADIATOR RESERVE

main16470-13050i198808-199201

main16470-13070i198808-199201

main16470-64050i198808-199201

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12013i198808

L=1000(*H,L=700)

sub90099-33534

main90445-12065i198808-199201

L=600(*H,L=580),NO.2

sub90445-12078

main90445-12073i198808-199201

L=420

sub90099-33370

main90445-12078i198808-199201

L=600,NO.1

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i198808-199201

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i198808-199201

L=600

16471CAP SUB-ASSY, RESERVE TANK

main16405-13050i198808-199201

main16405-13060i198808-199201

main16471-64030i198808-199201

16472HOSE, BREATHER

main85338-30010i198808-199201

main90445-12078i198808-199201

L=600

16473SUPPORT(FOR RADIATOR RESERVE TANK)

main53204-95702i198808-199201

16507PIPE SUB-ASSY, RADIATOR

main16507-64020i198808-199201

16508PIPE SUB-ASSY, RADIATOR, NO.2

main16508-64021i198808-199008

main16508-64030i199008-199201

16571HOSE, RADIATOR, INLET

main16571-13170i198808-199201

main16571-13180i198808-199201

main16571-64101i198808-199201

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31001i198904-199201

RADIATOR SIDE

sub90466-30001

main90467-31003i198808-198904

main90467-31003i198904-199201

ENGINE SIDE

main90467-37001i198808-199201

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-13140i198808-199201

main16572-13160i198808-199201

main16572-64120i198808-199201

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i198808-199201

RADIATOR SIDE

sub90467-37003

main90467-37002i198808-199201

ENGINE SIDE

sub90467-37005

16573BHOSE, RADIATOR, NO.3

main16573-64030i198808-199201

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-13001i198808-199201

sub96135-51300

16701SHROUD SUB-ASSY, FAN

main16711-13250i198808-199201

main16711-13260i198808-198809

sub16711-13261

main16711-13261i198809-199201

main16711-64160i198808-199008

main16711-64250i199008-199201

16712SHROUD, FAN, NO.2

main16712-13090i198808-199201

main16712-64070i198808-199008

main16712-64090i199008-199201

8401

9011908445

main90119-08445

9011908908

main90119-08908

9011908996

main90119-08996

9017906026

main90179-06026

9017906070

main90179-06070

9017908040

main90179-08040

9017908123

main90179-08123

9046400108

main90464-00108

9161160640

main91611-60640

9161160814

main91611-60814

9161160818

main91611-60818

9161160830

main91611-60830

9162140835

main91621-40835

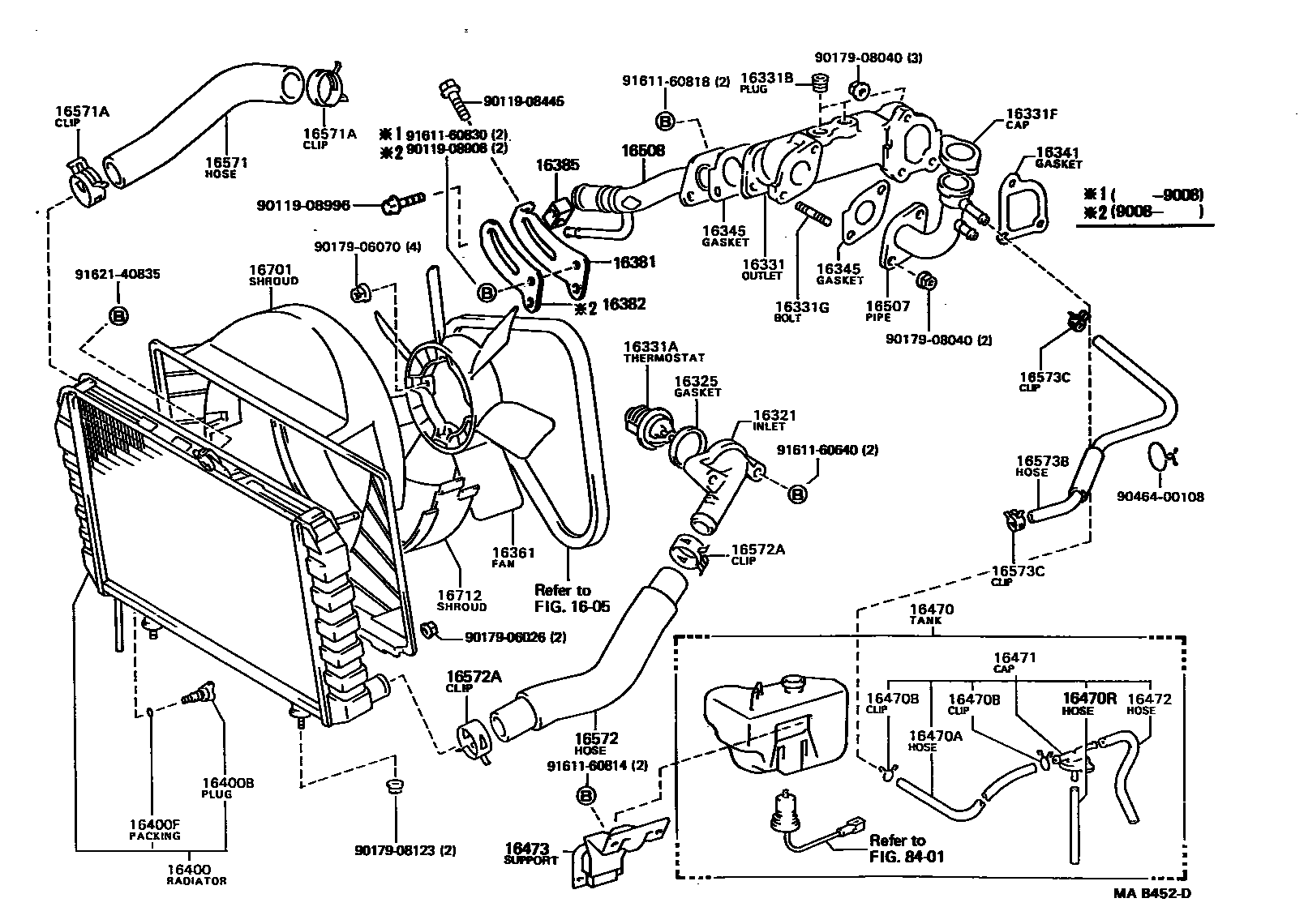

RADIATOR & WATER OUTLET
