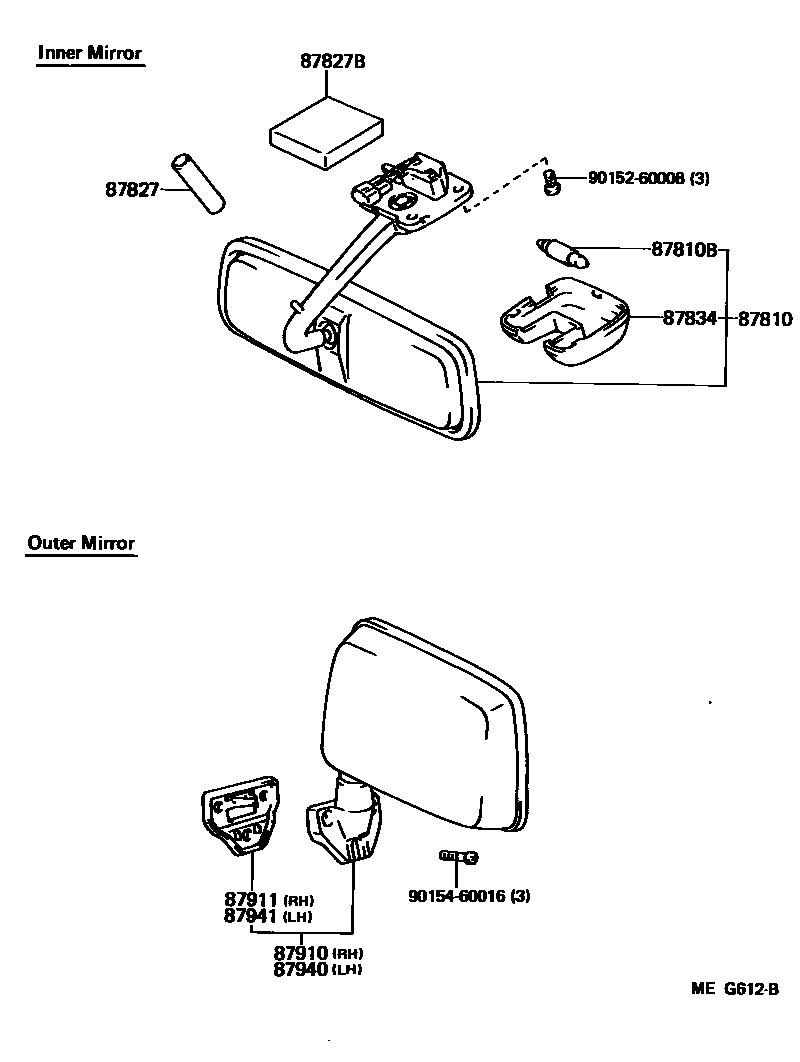

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-95706iCM35,KM3#198510-198606

STD TYPE

main87810-95709iCM35,KM30,36198606-198808

STD TYPE

main87810-95J06iCM35,KM3#198608-198808

NON-GLARE TYPE

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iCM35,KM3#198510-198808

12V 10W,12V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020iCM35,KM3#198510-198704

L=35

main87828-23010iCM35,KM3#198510-198808

L=38.5

main87828-87002iCM35,KM3#198704-198808

L=32

87827BPAD, INNER REAR VIEW MIRROR

main87827-95700iCM35,KM3#198611-198808

W/NON-GLARE TYPE MIRROR

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iCM35,KM3#198510-198808

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-95713iCM35,KM3#198510-198606

main87910-95721iCM35,KM30,36198606-198808

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87959-95701iCM35,KM3#198510-198808

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-95717iCM35,KM3#198510-198606

main87940-95726iCM35,KM30,36198606-198808

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87959-95701iCM35,KM3#198510-198808

9015260008

main90152-60008

9015460016

main90154-60016

11 parts on this diagram · 1 diagram in section
