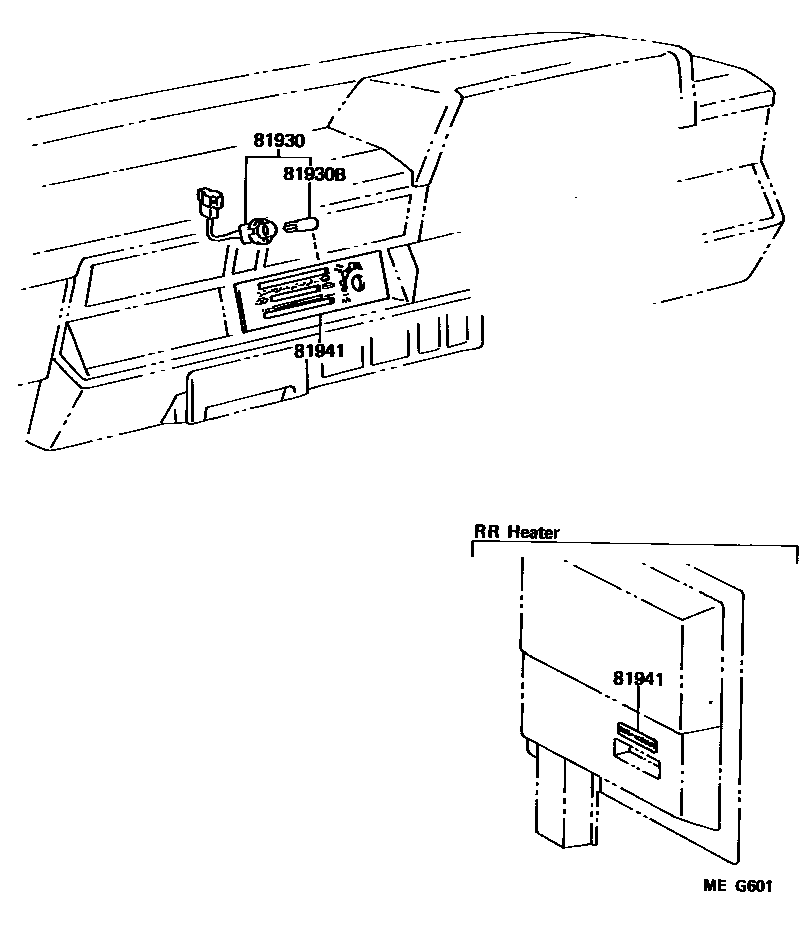

INDICATOR

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-95700iCM35,KM3#198510-198808

81930BBULB, HEATER CONTROL INDICATOR LAMP

main84999-10170iCM35,KM3#198510-198808

12V 1.12W,12V 1.4W

81941PLATE, HEATER CONTROL NAME

main55519-95716iCM35,KM3#198510-198808

FR HEATER

main55519-95J05iCM35,KM3#..05S,08S198510-198808

RR HEATER=TRIM BUILT-IN TYPE

3 parts on this diagram · 1 diagram in section
