SIDE MEMBER

0001 1 0002 1 0003 1

53829APROTECTOR, FRONT FENDER, LOWER

main53829-95700iCM35,KM3#198510-198808

RH

main53839-95700iCM35,KM3#198510-198808

LH

58741BPROTECTOR, QUARTER PANEL, RH

main58741-95700iCM35,KM3#198510-198808

58742BPROTECTOR, QUARTER PANEL, LH

main58742-95701iCM35,KM3#198510-198808

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95702iCM35,KM3#..LHD198510-198808

W/FR PILLAR GARNISH

main61023-95703iCM35,KM36..LHD..02S198510-198808

main61023-95704iCM35,KM36..RHD198510-198808

W/FR PILLAR GARNISH

main61023-95705iCM35,KM36..RHD198510-198808

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95702iCM35,KM36..RHD198510-198808

W/FR PILLAR GARNISH

main61024-95703iCM35,KM36..RHD198510-198808

main61024-95706iCM35,KM3#..LHD198510-198808

W/FR PILLAR GARNISH

main61024-95707iCM35,KM36..LHD..02S198510-198808

main61024-95708iKM30..DLX198511-198808

*FRG

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95700iCM35,KM36..RHD198510-198808

main61027-95701iCM35,KM3#..LHD198510-198808

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95701iCM35,KM36..RHD198510-198808

main61028-95703iCM35,KM3#..LHD198510-198808

61211RAIL, ROOF SIDE, OUTER RH

main61211-95705iCM35,KM3#198510-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-95705iCM35,KM3#198510-198808

61214RAIL, ROOF SIDE, OUTER REAR LH

main61214-95701iKM36..SRF;CM35,KM36..RHD198510-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-95705iCM35,KM3#198510-198808

61232RAIL, ROOF SIDE, INNER LH

main61232-95704iCM35,KM3#198510-198808

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61207-95704iKM30..STD198510-198808

main61207-95705iKM30..DLX198510-198808

main61207-95706iCM35,KM31,36..05S198510-198608

main61207-95708iCM35,KM36..LHD..02S198608-198808

main61233-95706iCM35,KM36..RHD198510-198808

main61233-95711iCM35,KM36..LHD..02S198510-198608

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61208-95709iCM35,KM36..RHD198608-198808

main61208-95710iCM35,KM36..05S198608-198808

main61208-95711iKM30..DLX198510-198808

main61234-95708iKM36..SRF;CM35,KM36..RHD198510-198608

main61234-95712iCM35,KM31,36..05S198510-198608

main61234-95713iCM35,KM36..LHD..MRF..02S198510-198808

61261CHANNEL, ROOF DRIP, RH

main61263-95701iCM35,KM3#198510-198601

FR

main61263-95702iCM35,KM3#198601-198808

FR

main61267-95701iCM35,KM3#198510-198601

RR

main61267-95702iCM35,KM3#198601-198808

RR

61262CHANNEL, ROOF DRIP, LH

main61264-95701iCM35,KM3#198510-198601

FR

main61264-95702iCM35,KM3#198601-198808

FR

main61268-95701iCM35,KM3#198510-198601

RR

main61268-95702iCM35,KM3#198601-198808

RR

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-95713iKM36..SRF;CM35,KM36..RHD198510-198808

main61302-95714iKM36..SRF;CM35,KM36..RHD198510-198808

W/MUD GUARD

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-95707iKM36..SRF;CM35,KM36..RHD198510-198808

61339BSEAL, CENTER BODY PILLAR, INNER NO.1

main61339-95701iCM35,KM36..RHD198510-198808

61351COVER, CENTER BODY, INNER RH

main61347-95710iCM35,KM36..02S198510-198808

W/O FR SEAT BELT

main61347-95711iCM35,KM3#..STD198510-198808

61352COVER, CENTER BODY, INNER, LH

main61347-95710iCM35,KM36..02S198510-198808

W/O FR SEAT BELT

main61347-95711iCM35,KM3#..STD198510-198808

61371RAIL, NO.1 CENTER INNER, RH

main61371-95702iCM35,KM36..RHD198510-198808

61382ARAIL, NO.2 CENTER, INNER LH

main61382-95702iKM36..SRF;CM35,KM36..RHD198510-198808

61411DPANEL, FENDER, OUTER RH

main61401-95701iCM35,KM3#198510-198808

W/SPOILER

main61411-95702iCM35,KM36..02S198510-198808

61412DPANEL, FENDER, OUTER LH

main61402-95701iCM35,KM3#198510-198808

W/SPOILER

main61412-95702iCM35,KM36..02S198510-198808

61421APANEL, FENDER, INNER RH

main61421-95702iCM35,KM3#198510-198808

61422APANEL, FENDER, INNER LH

main61422-95702iCM35,KM3#198510-198808

61423APANEL, FENDER, INNER LOWER RH

main61423-95702iCM35,KM3#198510-198808

61424APANEL, FENDER, INNER LOWER LH

main61424-95703iCM35,KM3#198510-198808

61512PILLAR, QUARTER LOCK, LH

main61502-95703iKM36..SRF;CM35,KM36..RHD198510-198808

61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61705-95700iKM36..SRF198510-198808

main61705-95702iCM35,KM3#..MRF198510-198808

61607FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61706-95700iKM36..SRF198510-198808

main61706-95701iCM35,KM3#..MRF198510-198808

61611PANEL, QUARTER, RH

main61601-95764iKM36..SRF198510-198808

main61601-95766iCM35,KM36..LHD..MRF..02S198510-198707

main61601-95768iKM36..SRF198510-198808

W/MUD GUARD

main61601-95770iCM35,KM36..LHD..MRF..02S198510-198707

W/MUD GUARD

main61601-95G11iCM35,KM3#..05S,08S198510-198808

main61601-95G17iCM35,KM3#..05S,08S198510-198808

W/MUD GUARD

main61601-95G18iCM35,KM36..RHD198510-198707

main61601-95G19iCM35,KM36..RHD198510-198707

W/MUD GUARD

main61601-95G34iCM35,KM36..LHD..MRF..02S198707-198808

main61601-95G37iCM35,KM36..LHD..MRF..02S198707-198808

W/MUD GUARD

main61601-95G53iCM35,KM36..RHD198707-198808

main61601-95G55iCM35,KM36..RHD198707-198808

W/MUD GUARD

61612PANEL, QUARTER, LH

main61602-95762iCM35,KM36..LHD..MRF..02S198510-198707

main61602-95764iCM35,KM36..LHD..MRF..02S198510-198707

W/MUD GUARD

main61602-95765iKM36..SRF198510-198808

main61602-95766iCM35,KM3#..05S,08S198510-198808

main61602-95767iCM35,KM36..RHD198510-198707

main61602-95768iCM35,KM36..RHD198510-198707

W/MUD GUARD

main61602-95769iKM36..SRF198510-198808

W/MUD GUARD

main61602-95770iCM35,KM3#..05S,08S198510-198808

W/MUD GUARD

main61602-95779iCM35,KM36..LHD..MRF..02S198707-198808

main61602-95780iCM35,KM36..RHD198707-198808

main61602-95782iCM35,KM36..RHD198707-198808

W/MUD GUARD

main61602-95783iCM35,KM36..LHD..MRF..02S198707-198808

W/MUD GUARD

61617APANEL, QUARTER INNER, REAR RH

main61605-95705iCM35,KM36..02S198510-198808

main61605-95706iCM35,KM31,36..05S198510-198808

main61605-95708iKM30..STD198510-198808

main61605-95709iKM30..DLX198510-198808

61618APANEL, QUARTER, INNER REAR LH

main61606-95705iCM35,KM36..02S198510-198808

main61606-95706iCM35,KM31,36..05S198510-198808

main61606-95708iKM30..STD198510-198808

main61606-95709iKM30..DLX198510-198808

61619AREINFORCEMENT, QUARTER PANEL

main61619-95704×3iCM35,KM3#..MRF198510-198808

61623AEXTENSION, QUARTER PANEL, OUTER RH

main61623-95703iKM36..SRF198510-198808

main61623-95704iCM35,KM3#..STD..(05S,08S)198510-198808

main61623-95705iKM30..DLX198510-198808

main61623-95706iCM35,KM36..MRF..02S198510-198808

61624AEXTENSION, QUARTER PANEL, OUTER LH

main61624-95703iKM36..SRF198510-198808

main61624-95704iCM35,KM3#..STD..(05S,08S)198510-198808

main61624-95705iKM30..DLX198510-198808

main61624-95706iCM35,KM36..MRF..02S198510-198808

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-95705iCM35,KM3#198510-198808

61631DREINFORCEMENT, QUARTER WHEEL HOUSE, RH

main61647-95700iCM35,KM3#198510-198808

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61631-95705iCM35,KM3#198510-198808

61632DREINFORCEMENT, QUARTER WHEEL HOUSE, LH

main61647-95700iCM35,KM3#198510-198808

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-95701iCM35,KM3#198510-198708

main61633-95702iCM35,KM3#198708-198808

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-95701iCM35,KM3#198510-198708

main61634-95702iCM35,KM3#198708-198808

61662APLATE, QUARTER PANEL OUTER EXTENSION, LOWER REAR

main61662-95700iCM35,KM3#..MRF; KM36..SRF198510-198808

61666SEAL, QUARTER PANEL

main61667-95701iCM35,KM3#..MRF; KM36..SRF198510-198808

61703FPANEL SUB-ASSY, QUARTER, INNER FRONT RH

main61703-95709iCM35,KM36..RHD198510-198808

61707EEXTENSION, QUARTER INNER PANEL, RH

main61735-95706iCM35,KM36..RHD198510-198808

61789AWEIGHT, QUARTER PANEL

main61789-95700iCM35,KM31,36198510-198808

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-95701iCM35,KM3#198510-198808

main76607-95708iKM30..STD198805-198806

BLUE-M(8D7)

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-95703iCM35,KM3#198510-198808

main76608-95710iKM30..STD198805-198808

BLUE-M(8D7)

9004871021

main90048-71021

9011906012

main90119-06012

9015960304

main90159-60304

9017906015

main90179-06015

9018906006

main90189-06006

9033325001

main90333-25001

9046707064

main90467-07064

9095001011

main90950-01011

9095001065

main90950-01065

9095001119

main90950-01119

9095001398

main90950-01398

9095006031

main90950-06031

9338516020

main93385-16020

9356056016

main93560-56016

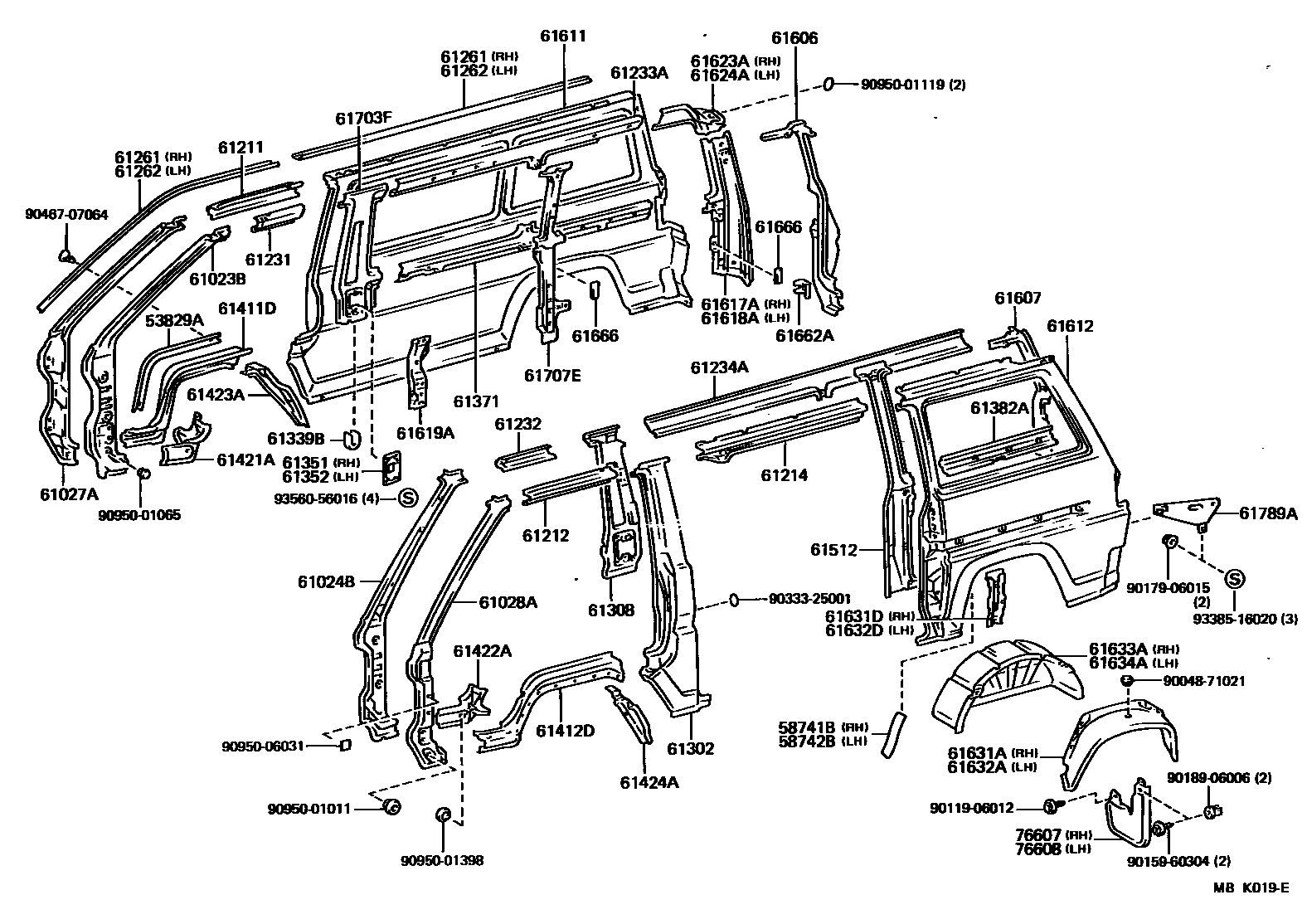

66 parts on this diagram · 3 diagrams in section
