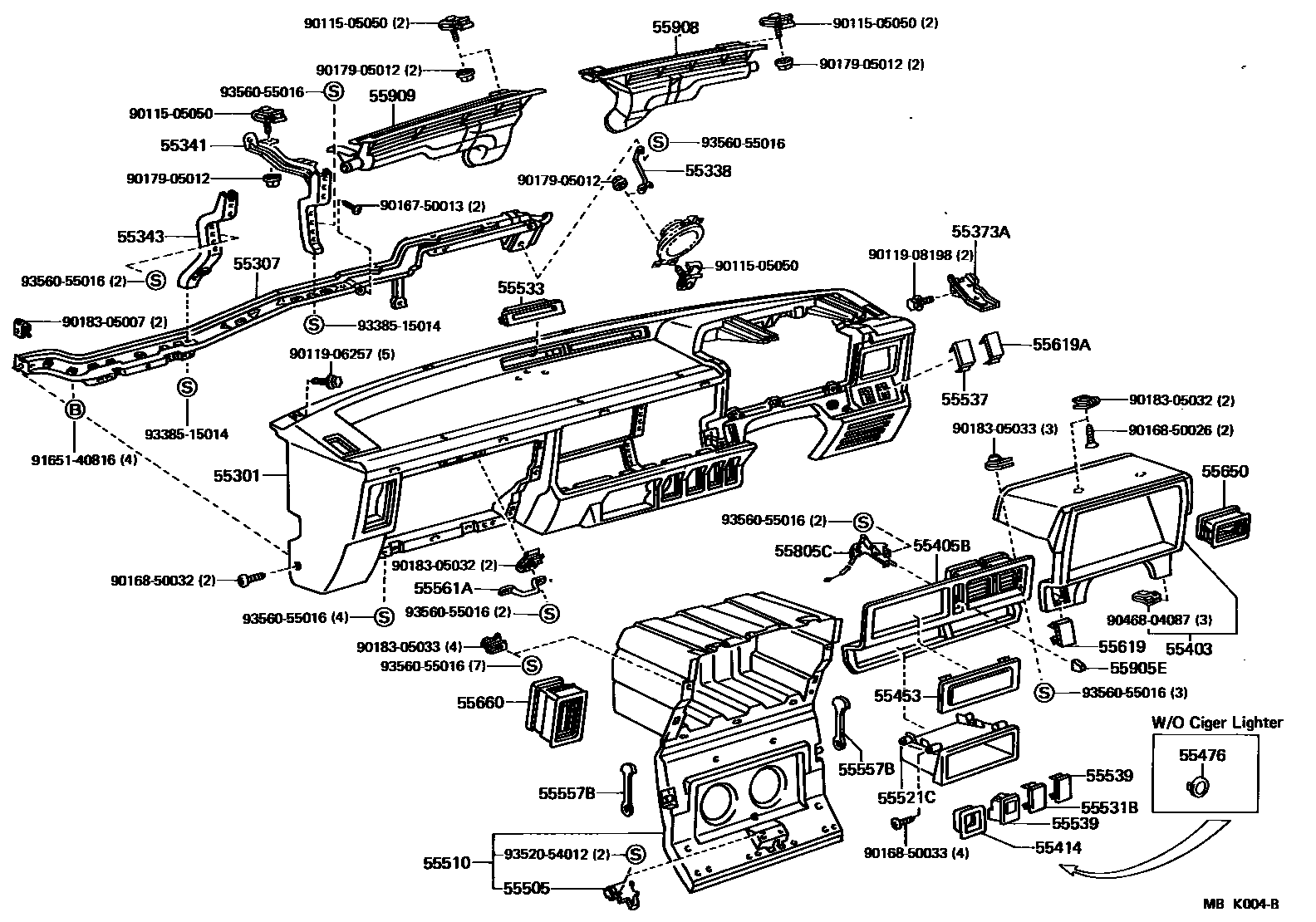

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95712-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55311-95712-06iKM30; KM31; KM36..LHD..MRF..02S198510-198808

*FRG,BROWN,BROWN,TRIM4#; BROWN,BROWN,TRIM4#

main55311-95713-06iCM35,KM36..RHD198510-198808

BROWN,BROWN,TRIM4#

main55311-95714-06iCM35,KM31,36..LHD198510-198808

BROWN,BROWN,TRIM4#

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95703iCM35,KM36..RHD198510-198808

main55307-95704iCM35,KM3#..LHD198510-198808

55338EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.1

main55338-95700iCM35,KM36..RHD198510-198808

main55338-95701iCM35,KM3#..LHD198510-198808

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-95702iCM35,KM3#198510-198808

55343BRACE, INSTRUMENT PANEL, NO.3

main55344-95700iCM35,KM36..RHD198510-198808

main55344-95701iCM35,KM3#..LHD198510-198808

LH

main55344-95702iCM35,KM3#..LHD198510-198808

RH

55373ABRACKET, OIL RESERVOIR TANK

main55373-95700iCM35,KM36..RHD198510-198808

main55373-95701iCM35,KM3#..LHD198510-198808

55403HOOD SUB-ASSY, METER

main55403-95702-06iCM35,KM36..RHD198510-198808

BROWN,BROWN,TRIM4#

main55403-95703-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55403-95703-06iCM35,KM3#..LHD198510-198808

BROWN,BROWN,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-95703-04iKM30..DLX198510-198808

W/RADIO,BLUE,BLUE,TRIM8#

main55405-95703-06iCM35,KM3#198510-198808

W/RADIO,BROWN,BROWN,TRIM4#

main55405-95704-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55405-95704-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iCM35,KM3#198510-198808

55453COVER, RADIO TUNER OPENING

main55308-95701iCM35,KM3#198708-198808

W/O RADIO

main55522-14070iCM35,KM3#198510-198808

55476COVER, CIGARETTE LIGHTER HOLE

main55477-95010-06iCM35,KM3#..STD198510-198808

BROWN,BROWN,TRIM4#

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-95704-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55560-95704-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95707-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55501-95707-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

55521CCOVER, STEREO OPENING

main55308-95701iCM35,KM3#198510-198808

55531BCOVER, CHOKE KNOB HOLE

main55539-24010-06iCM35,KM30,31;KM36..LHD..(4F,5F)198510-198808

BROWN,BROWN,TRIM4#

main55539-24010-24iKM30..DLX198610-198808

BLUE,DEEP BLUE,TRIM8#

main55539-24010-34iKM30..DLX198510-198610

BLUE,BLUE,TRIM8#

55533COVER, AUTO CLOCK HOLE

main55423-95702-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55423-95702-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55539-32010-24iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55539-32010-26iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

55539COVER, SPARE SWITCH HOLE

main55539-24010-06iCM35,KM3#..STD198510-198808

W/O RR HEATER,BROWN,BROWN,TRIM4#

main58824-95703-04iKM30..DLX198510-198608

W/O RHEOSTAT,BLUE,BLUE,TRIM8#

main58824-95703-06iCM35,KM36..RHD198608-198808

W/O RHEOSTAT,BROWN,BROWN,TRIM4#

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95700×2iCM35,KM3#198510-198808

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95702iCM35,KM3#198510-198808

55619COVER, SWITCH HOLE

main55539-32010-24iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55539-32010-26iCM35,KM3#198510-198708

BROWN,BROWN,TRIM4#

55619ACOVER, SWITCH HOLE, NO.2

main55539-32010-26iCM35,KM36..RHD198510-198608

BROWN,BROWN,TRIM4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95701-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55650-95701-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-95701-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main55660-95701-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

55805CBRACKET SUB-ASSY, AIR DAMPER CONTROL LEVER

main55805-95704iCM35,KM3#198510-198808

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iCM35,KM3#198510-198808

BLACK,BLACK

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-95702iCM35,KM3#198510-198703

main55950-95703iCM35,KM3#198703-198808

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55960-95701iCM35,KM3#198510-198703

main55960-95702iCM35,KM3#198703-198808

9011505050

main90115-05050

9011906257

main90119-06257

9011908198

main90119-08198

9016750013

main90167-50013

9016850026

main90168-50026

9016850032

main90168-50032

9016850033

main90168-50033

9017905012

main90179-05012

9018305007

main90183-05007

9018305032

main90183-05032

9018305033

main90183-05033

9046804087

main90468-04087

9165140816

main91651-40816

9338515014

main93385-15014

9352054012

main93520-54012

9356055016

main93560-55016

44 parts on this diagram · 2 diagrams in section
