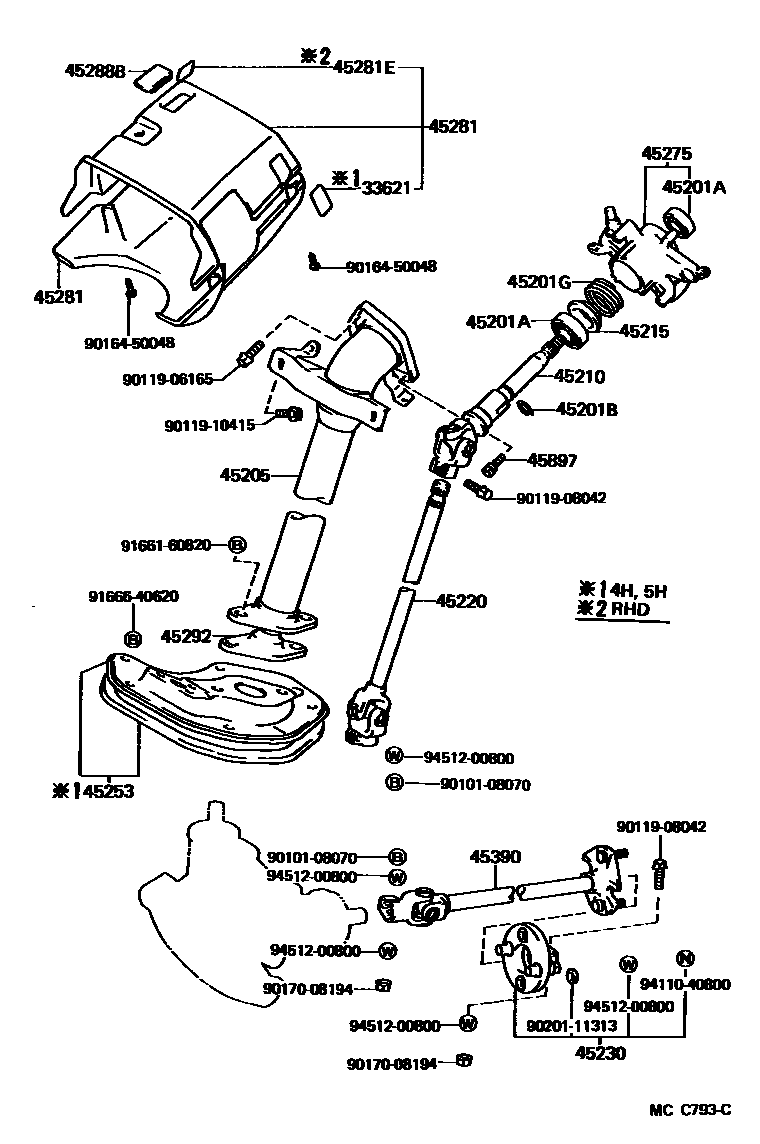

STEERING COLUMN & SHAFT

0001 1 0002 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36010iKM36..4H198510-198808

main33621-36030iCM35..5H198510-198808

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCM35,KM3#198510-198808

UPR

main90363-28001iCM35,KM3#198510-198808

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCM35,KM3#198510-198808

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iCM35,KM3#198510-198808

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-27090iCM35,KM36..RHD198510-198808

main45205-27110iCM35,KM3#..LHD198510-198808

45210SHAFT ASSY, STEERING MAIN

main45210-22050iCM35,KM3#198510-198808

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iCM35,KM3#198510-198808

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-27070iCM35,KM36..RHD198510-198808

main45220-27080iCM35,KM3#..LHD198510-198808

45230COUPLING ASSY, FLEXIBLE

main45230-27020iCM35,KM3#198510-198808

45253COVER, STEERING COLUMN HOLE

main45253-27090iCM35,KM36..4H,5H198510-198808

45275BRACKET, STEERING COLUMN, UPPER

main45280-27100iCM35,KM36..RHD198510-198709

main45280-27101iCM35,KM36..RHD198709-198808

main45280-27120iCM35,KM36..4H,5H198510-198709

main45280-27121iKM36..4H198709-198808

main45280-27130iCM35,KM3#..LHD..(4F,5F)198510-198709

main45280-27131iCM35..5F198709-198808

45281HOUSING, STEERING COLUMN

main45286-27170-06iCM35,KM36..RHD198510-198808

UPR,BROWN,BROWN,TRIM4#

main45286-27190-06iKM36..4H198510-198808

UPR,BROWN,BROWN,TRIM4#

main45286-27200-06iCM35..5H198510-198808

UPR,BROWN,BROWN,TRIM4#

main45286-27210-04iKM30..DLX198510-198808

UPR,BLUE,BLUE,TRIM8#

main45286-27210-06iCM35,KM3#..LHD..(4F,5F)198510-198808

UPR,BROWN,BROWN,TRIM4#

main45287-27080-06iCM35,KM36..RHD198510-198808

LWR,BROWN,BROWN,TRIM4#

main45287-27100-06iCM35,KM36..4H,5H198510-198808

LWR,BROWN,BROWN,TRIM4#

main45287-27110-04iKM30..DLX198510-198808

LWR,BLUE,BLUE,TRIM8#

main45287-27110-06iCM35,KM3#..LHD..(4F,5F)198510-198808

LWR,BROWN,BROWN,TRIM4#

45281EPLATE, SAFETY CAUTION

main45283-22010iCM35,KM36..RHD198510-198808

45288BCOVER, STEERING COLUMN, UPPER

main45288-27030iCM35,KM36..RHD198708-198808

45292SEAL, MAIN SHAFT LOWER DUST

main45292-27010iCM35,KM3#198510-198808

45390SHAFT ASSY, STEERING TORQUE

main45390-27010iCM35,KM3#198510-198808

45897BOLT, STEERING LOCK SET

main45897-14010iCM35,KM3#198510-198808

9010108070

main90101-08070

9011906165

main90119-06165

9011908042

main90119-08042

9011910415

main90119-10415

9016450048

main90164-50048

9017008194

main90170-08194

9020111313

main90201-11313

9166160820

main91661-60820

9166640620

main91666-40620

9411040800

main94110-40800

9451200800

main94512-00800

28 parts on this diagram · 2 diagrams in section
