TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

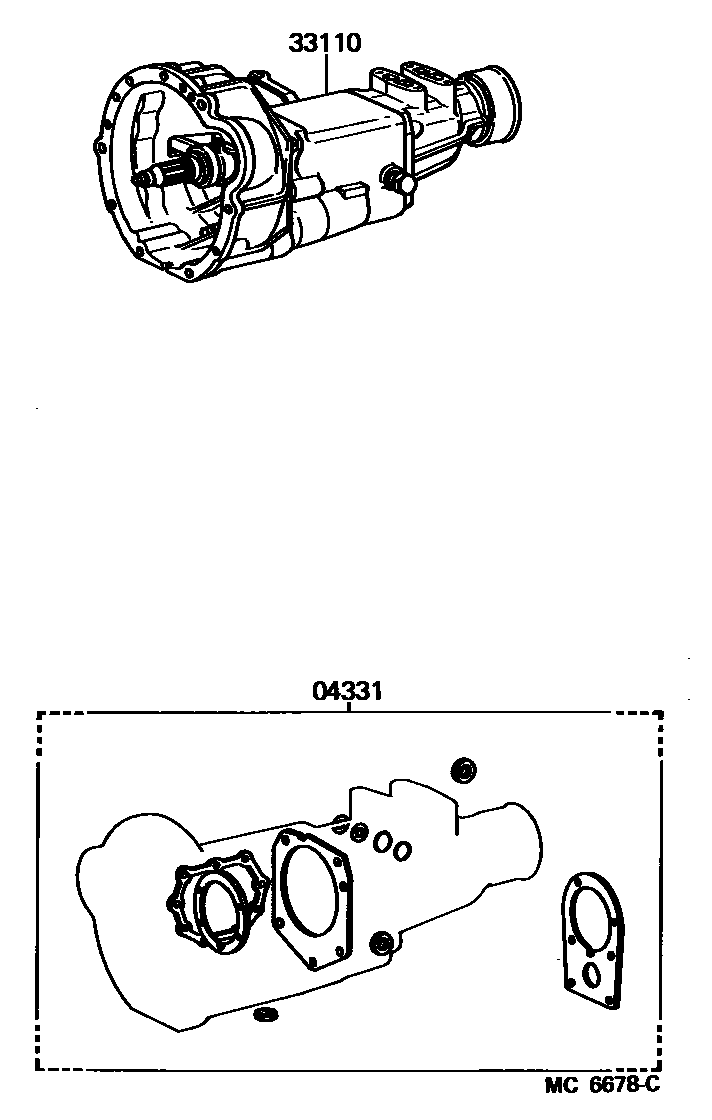

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35090i198510-198808

main04331-35101i198510-198808

33110TRANSMISSION ASSY, MANUAL

main33030-27170i198510-198808

main33030-27230i198510-198808

main33030-27250i198510-198808

main33030-27270i198510-198808

main33030-27902i198510-198808

2 parts on this diagram · 2 diagrams in section
