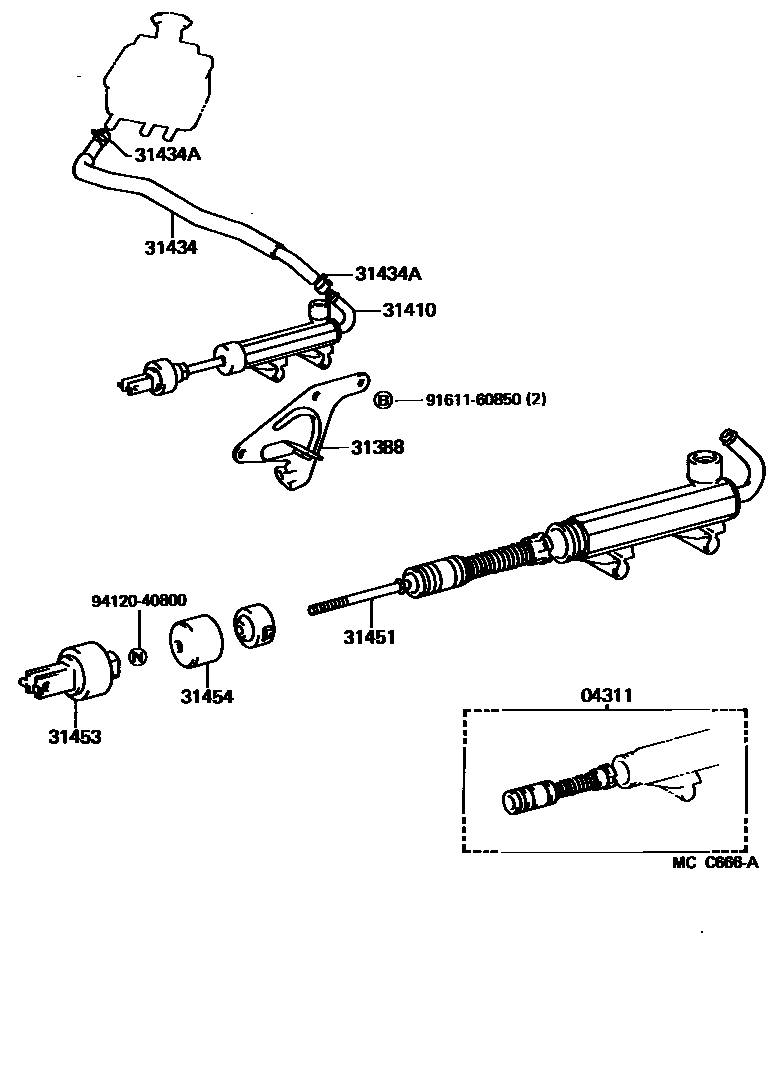

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-27010iKM3#..5F198510-198808

main04311-30090iCM35198510-198704

main04311-30091iCM35198704-198808

31388SUPPORT, CLUTCH MASTER CYLINDER

main55105-95707iCM35..RHD198510-198808

main55105-95708iCM35,KM3#..LHD..(5F,5H)198510-198808

31410CYLINDER ASSY, CLUTCH MASTER

main31420-27050iKM36..RHD198701-198710

main31420-27052iKM36..RHD198710-198808

main31420-27070iCM35..RHD198510-198710

main31420-27071iCM35..RHD198710-198808

main31420-27080iCM35..LHD198510-198710

main31420-27082iCM35..LHD198710-198808

main31420-27090iKM3#..LHD..5F198510-198704

main31420-27091iKM3#..LHD..5F198704-198710

main31420-27092iKM3#..LHD..5F198710-198808

31434TUBE, CLUTCH RESERVOIR

main31434-27040iCM35,KM36..RHD..5F198510-198808

main31434-27050iCM35,KM3#..LHD..(5F,5H)198510-198808

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800×2iCM35,KM3#..5F,5H198510-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iKM3#..5F198510-198609

main31451-27010iKM36..RHD198701-198808

main31451-27020iCM35198510-198808

main31451-30120iKM3#..LHD..5F198609-198808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-27010iKM36..RHD198701-198808

main31453-22010iKM3#..5F198510-198610

main31453-35010iKM3#..LHD..5F198610-198808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iKM3#..LHD..5F198510-198808

main31454-27010iCM35198510-198808

9161160850

main91611-60850

9412040800

main94120-40800

10 parts on this diagram · 2 diagrams in section
