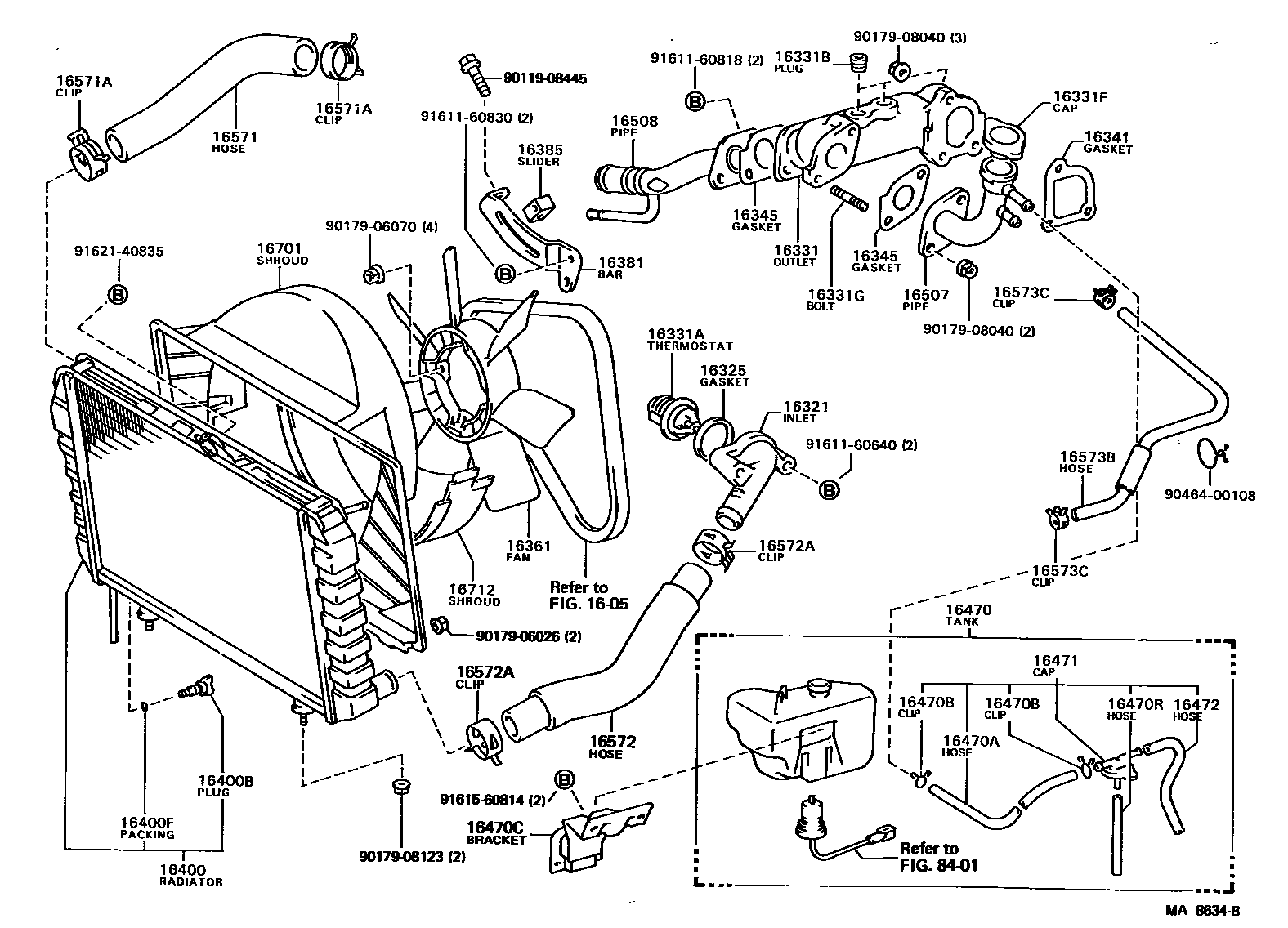

RADIATOR & WATER OUTLET
1605
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16331ATHERMOSTAT
*WAX 82-95
*WAX 88-100
16331BPLUG(FOR WATER OUTLET)
16331GBOLT, STUD(FOR WATER INLET)
16345GASKET, WATER OUTLET PIPE
sub16345-64030
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=700,NO.2
L=1800(*H,L=760),NO.2
L=1450(*H,L=420)
L=1000(*H,L=150),NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600(*H,L=110)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
L=1800(*H,L=180)
16507PIPE SUB-ASSY, RADIATOR
16508PIPE SUB-ASSY, RADIATOR, NO.2
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
sub96135-51300
16712SHROUD, FAN, NO.2
8401
9011908445
main90119-08445
9017906026
main90179-06026
9017906070
main90179-06070
9017908040
main90179-08040
9017908123
main90179-08123
9046400108
main90464-00108
9161160640
main91611-60640
9161160818
main91611-60818
9161160830
main91611-60830
9161560814
main91615-60814
9162140835
main91621-40835
45 parts on this diagram · 3 diagrams in section
