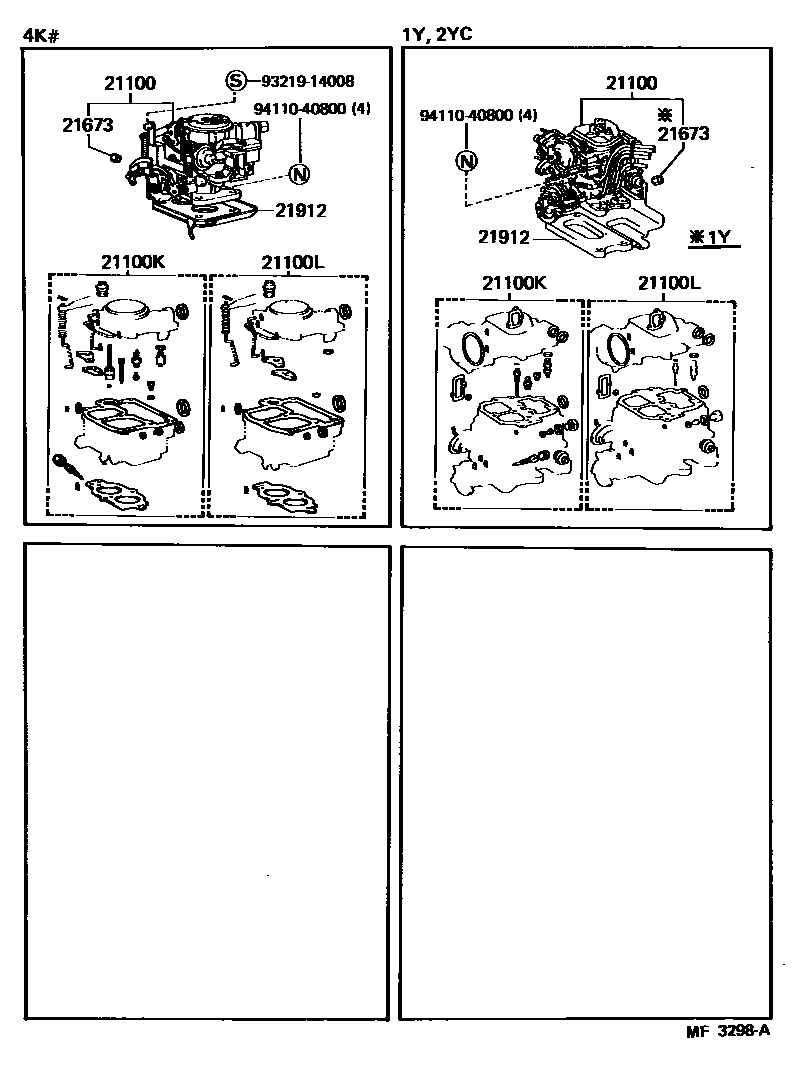

CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-13100i4K..KM20..ARL197910-198508

main21100-13110i4K..KM20..RHD..GEN197910-198202

HONG KONG SPEC

main21100-13120i4K..KM20..ARL197910-198508

main21100-13130i4K..KM20..GEN197910-198508

main21100-13420i4K..KM20..EUR198210-198508

main21100-13440i4K..KM20..V4D..4F198210-198508

SWITZERLAND SPEC

main21100-13510i4K..KM20..RHD..03S198409-198508

SINGAPORE SPEC

main21100-71010i1Y..YM20198402-198508

main21100-72140i2YC..YM21198311-198508

21100KCARBURETOR KIT

main04211-13110i4K..KM20..ARL197910-198206

main04211-13111i4K..KM20..ARL198206-198508

main04211-13120i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198206

main04211-13121i4K..KM20..ARL198206-198508

main04211-13130i4K..KM20..4F;4K..KM20..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR197910-198210

main04211-13140i4K..KM20..GEN197910-198508

main04211-13290i4K..KM20..EUR198210-198508

main04211-13300i4K..KM20..V4D..4F198210-198508

SWITZERLAND SPEC

main04211-71011i1Y..YM20198402-198508

main04211-72080i2YC..YM21198311-198508

21100LGASKET KIT, CARBURETOR

main04212-13022i4K..KM20197910-198508

main04212-71020i1Y,2YC..YM2#198311-198508

21673CAP, IDLE LIMIT

main21673-13280i4K..KM20..ARL198206-198508

main21673-38020i4K..KM20..ARL197910-198206

21912INSULATOR, CARBURETOR HEAT

main21912-13030i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S198108-198112

main21912-13031i4K..KM20198112-198508

main21912-24090i4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)197910-198108

main21912-71010i1Y,2YC..YM2#198311-198408

main21912-72010i1Y,2YC..YM2#198408-198508

9321914008

main93219-14008

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section
