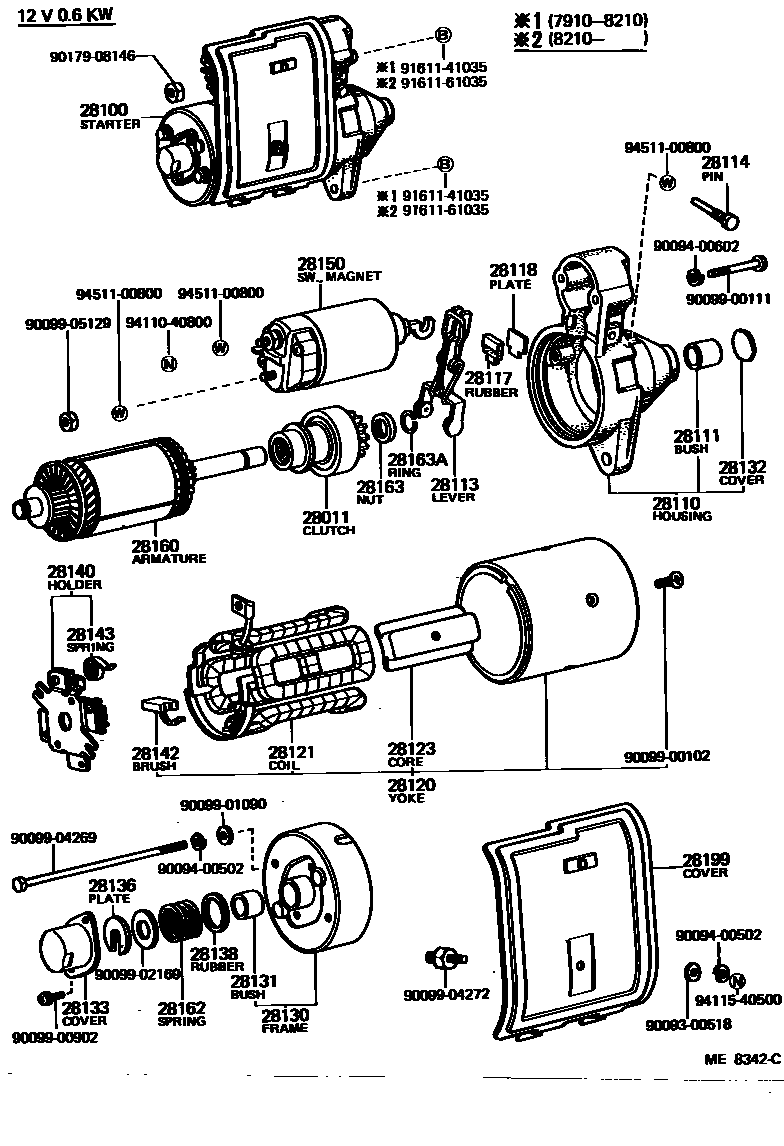

STARTER
28011CLUTCH SUB-ASSY, STARTER
12V 0.8KW
12V 1.0KW
main28011-64010i1C..CM20..RHD;1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198210-198508
12V 1.4KW
sub28011-67030
12V 2.0KW
28100STARTER ASSY
12V 0.8KW,12V 0.8KW
12V 1.4KW,12V 1.4KW
main28100-64100i1C..CM20..RHD;1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198309-198508
12V 1.4KW,12V 1.4KW
12V 1.0KW,12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
12V 0.8KW
12V 0.6KW
main28110-64070i1C..CM20..RHD;1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198309-198508
12V 1.4KW
12V 1.0KW
12V 1.4KW
12V 2.0KW
28111BUSH(FOR STARTER HOUSING)
12V 0.8KW
28113LEVER, STARTER PINION DRIVE
main28113-15011i4K..KM20..4F;4K..KM20..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR198006-198210
12V 0.8KW
12V 0.6KW
28114PIN, STARTER DRIVE LEVER SET
12V 0.6KW
28117RUBBER(FOR STARTER YOKE)
12V 0.6KW
12V 1.4KW
main90099-14064×2i1C..CM20..RHD;1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198309-198508
12V 1.4KW
28118PLATE(FOR STARTER YOKE)
12V 0.6KW
28120YOKE ASSY, STARTER
main28120-15090i1C..CM20..RHD;1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198309-198508
12V 1.4KW
12V 0.6KW
main28120-26140i4K..KM20..4F;4K..KM20..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR198006-198210
12V 0.8KW
12V 1.4KW
12V 2.0KW
28121COIL, STARTER FIELD
28123CORE, STARTER POLE
12V 0.6KW
28130FRAME ASSY, STARTER COMMUTATOR END
12V 0.8KW
12V 0.6KW
main28130-64100i1C..CM20..RHD;1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198309-198508
12V 1.4KW
12V 1.0KW
28131BUSH, COMMUTATOR END FRAME
STD,12V 0.6KW
U/S 0.3,12V 0.6KW
U/S 0.5,12V 0.6KW
12V 0.8KW
28132COVER, STARTER BEARING(FOR DRIVE HOUSING)
12V 0.6KW
12V 0.6KW
28133COVER, BEARING(FOR END FRAME)
main28132-15010i4K..KM20..4F;4K..KM20..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR198006-198210
12V 0.8KW
sub28132-15011
12V 0.6KW
28136PLATE, STARTER LOCK
12V 0.8KW
12V 0.6KW
28138RUBBER(FOR STARTER BEARING COVER)
12V 0.8KW
12V 0.6KW
28140HOLDER ASSY, STARTER BRUSH
12V 0.8KW
main28140-15090i1C..CM20..RHD;1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198309-198508
12V 1.4KW
12V 0.6KW
12V 1.0KW
12V 1.4KW
12V 2.0KW
28142BRUSH, STARTER
12V 0.6KW
28143SPRING, STARTER BRUSH
main90099-17112×4i1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S;1C,1Y,2YC..CM20,YM2#..RHD198210-198508
12V 1.0KW,1.4KW
12V 2.0KW
28150SWITCH ASSY, MAGNET STARTER
12V 0.8KW
12V 1.0KW
main28150-37010i4K..KM20..LHD..HRF;4K..KM20..V4D..SRF..4F..02S;4K..KM20..LHD..SRF..(03S,05S,06S,08S,09S)198303-198508
12V 0.8KW
sub28150-37011
12V 1.4KW
12V 2.0KW
main28150-64070i1C..CM20..RHD;1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198309-198508
12V 1.4KW
28160ARMATURE ASSY, STARTER
main28160-15010i4K..KM20..4F;4K..KM20..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR198006-198210
12V 0.8KW
main28160-15090i1C..CM20..RHD;1C..CM20..05S;1C..CM20..HRF..5F..02S;1C..CM20..LHD..SRF..02S198309-198508
12V 1.4KW
sub28160-15091
12V 0.6KW
12V 1.4KW
28162SPRING, STARTER BRAKE
main28162-15010i4K..KM20..4F;4K..KM20..SRF..4H..EUR;4K..KM20..HRF..VSP..4H..EUR;4K..KM20..HRF..4H..(05S,07S)..EUR198006-198210
12V 0.8KW
12V 0.6KW
28163NUT OR COLLAR, PINION STOP, STARTER
12V 0.6KW,0.8KW
28163ARING, SNAP(FOR STARTER PINION STOP NUT)
12V 0.6KW,0.8KW
28199COVER, STARTER
main28199-15110i4K..KM20..LHD..HRF;4K..KM20..V4D..SRF..4F..02S;4K..KM20..LHD..SRF..(03S,05S,06S,08S,09S)198304-198508
12V 0.8KW
12V 0.6KW
12V 0.8KW
9009300518
main90093-00518
9009400502
main90094-00502
9009400602
main90094-00602
9009900102
main90099-00102
9009900111
main90099-00111
9009900902
main90099-00902
9009901090
main90099-01090
9009902169
main90099-02169
9009904269
main90099-04269
9009904272
main90099-04272
9009905129
main90099-05129
9017908146
main90179-08146
9161141035
main91611-41035
9161161035
main91611-61035
9411040800
main94110-40800
9411540500
main94115-40500
9451100800
main94511-00800
43 parts on this diagram · 6 diagrams in section
