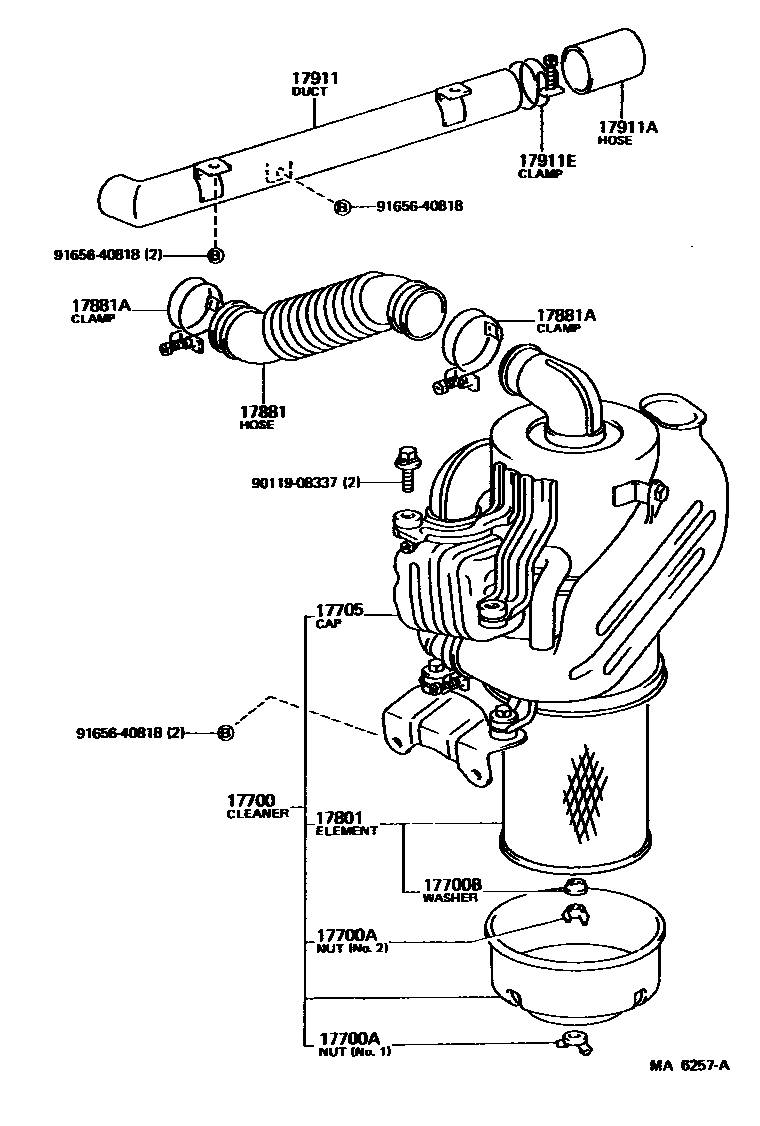

AIR CLEANER

0001 1 0002 1 0004 1 0005 1 0006 1

17700CLEANER ASSY, AIR

main17700-13100i4K..KM20..RHD198010-198210

main17700-13110i4K..KM20..ARL197910-198508

main17700-13120i4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

main17700-13180i4K..KM20..LHD..GEN198001-198210

CYCLONE

main17700-13400i4K..KM20..LHD..EUR198210-198508

main17700-13410i4K..KM20..V4D..4F198210-198508

SWITZERLAND SPEC

main17700-13430i4K..KM20..VSP..4H..EUR198210-198508

main17700-13490i4K..KM20..LHD..GEN198210-198508

main17700-13500i4K..KM20..LHD..GEN198210-198508

CYCLONE

main17700-64050i1C..CM20..EUR198210-198508

main17700-64070i1C..CM20..ARL,GEN198210-198508

CYCLONE AIR CLEANER

main17700-71020i1Y,2YC..YM2#198311-198508

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i1C..CM20198210-198508

NO.1

main94271-00800i1C..CM20198210-198508

NO.2

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08024i1C..CM20198210-198508

main90210-09006i4K..KM20..LHD..GEN198001-198508

CYCLONE

17705CAP SUB-ASSY, AIR CLEANER

main17703-13010i4K..KM20..LHD..GEN198001-198508

CYCLONE

main17705-13020i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198210

main17705-13040i4K..KM20..ARL197910-198508

main17705-13080i4K..KM20..EUR198210-198508

main17705-13090i4K..KM20..V4D..4F198210-198508

SWITZERLAND SPEC

main17705-64040i1C..CM20..EUR198210-198508

main17705-64060i1C..CM20..ARL,GEN198210-198508

CYCLONE AIR CLEANER

main17705-71010i1Y,2YC..YM2#198311-198508

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13030i4K..KM20..EUR198210-198508

main17801-23020i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198210

main17801-54020i4K..KM20..LHD..GEN198001-198508

CYCLONE

main17801-54050i1Y,2YC..YM2#198311-198508

main17801-64030i1C..CM20198210-198508

17881HOSE, AIR CLEANER, NO.1

main17881-13040i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198210

main17881-13090i4K..KM20..VSP..4H..EUR198210-198508

main17881-13100i4K..KM20..LHD..EUR198210-198508

main17881-64030i1C..CM20198210-198508

main17881-71040i1Y,2YC..YM2#198311-198508

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-78001×2i4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S)197910-197911

main90460-78002×2i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197911-198210

sub90460-78006

main96111-10670i1C..CM20198210-198508

INTAKE MANIFOLD SIDE

main96111-10690×2i1Y,2YC..YM2#198311-198508

main96111-10710i1C..CM20198307-198508

AIR CLEANER SIDE

main96111-10730i1C..CM20198210-198307

AIR CLEANER SIDE

17911DUCT, COOL AIR INTAKE, NO.1

main17760-95701i1C..CM20198210-198508

main17761-95705i4K..KM20..LHD..EUR198210-198508

main17761-95706i4K..KM20..VSP..4H..EUR198210-198508

main17761-95707i1Y,2YC..YM2#198311-198508

17911AHOSE, COOL AIR INTAKE, NO.1

main17813-95700i1C..CM20198210-198508

17911ECLAMP, COOL AIR INTAKE HOSE, NO.1

main96111-10620i1C..CM20198210-198508

9011908337

main90119-08337

9165640818

main91656-40818

12 parts on this diagram · 5 diagrams in section
