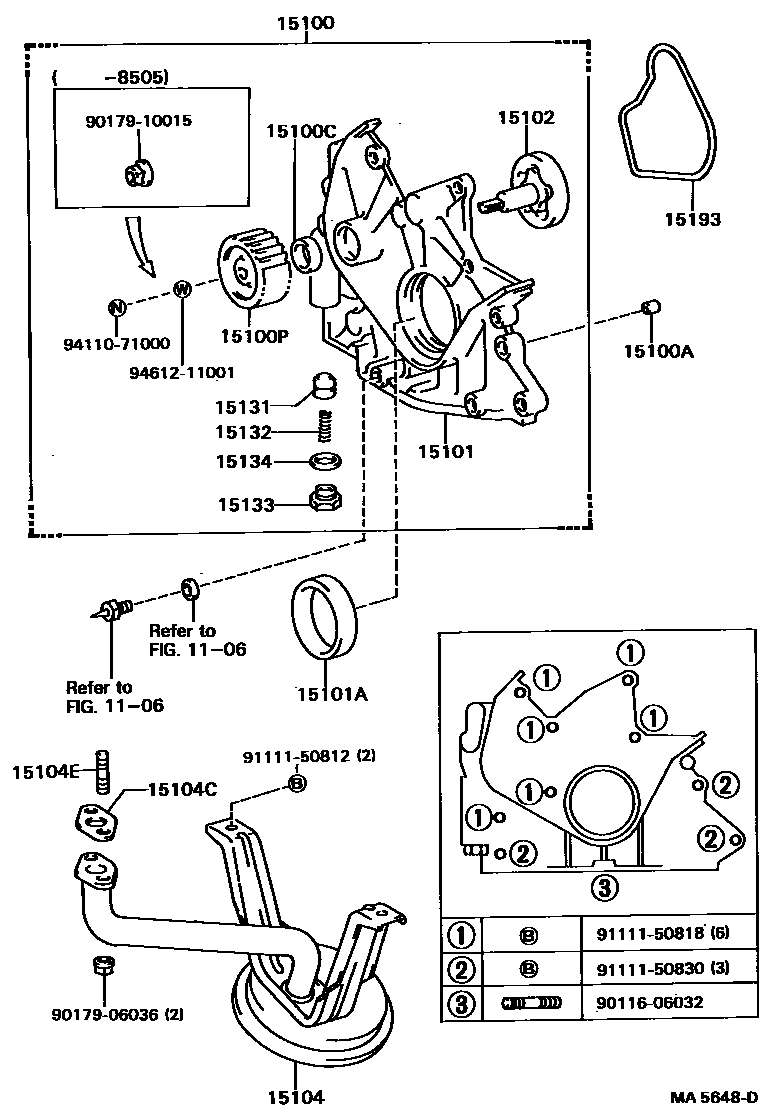

Toyota LITEACE — ENGINE OIL PUMP
1106TIMING GEAR COVER & REAR END PLATE
15100APIN, RING(FOR OIL PUMP SET)
15100CSEAL(FOR OIL PUMP)
15100PPULLEY, OIL PUMP DRIVE SHAFT
15101ASEAL(FOR CRANKSHAFT)
15104CGASKET(FOR OIL STRAINER)
15104EBOLT, STUD(FOR OIL STRAINER)
15134GASKET, OIL PUMP RELIEF VALVE
15193GASKET, OIL PUMP
9011606032
9017906036
9017910015
9111150812
9111150818
9111150830
9411071000
9461211001
24 parts on this diagram · 3 diagrams in section
ENGINE OIL PUMP for Toyota LITEACE
This section contains 33 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota LITEACE. Key components include: TIMING GEAR COVER & REAR END PLATE, COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), SEAL(FOR OIL PUMP).
