STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-22020i3K..KM10197105-197511

main28011-41011i3KJ..KM10197511-197802

12V 0.8KW

28100STARTER ASSY

main28100-22012i3K..KM10197105-197404

12V 0.6KW

sub28100-12012

main28100-22021i3K..KM10197105-197404

12V 0.8KW

main28100-24022i3K..KM10197404-197511

12V 0.8KW

sub28100-24110

main28100-24030i3K..KM10197404-197511

12V 0.6KW

main28100-24031i4KJ..KM11197802-197909

12V 0.6W,12V 0.6KW

sub28100-13060

main28100-24060i4KJ..KM11197802-197909

12V 0.8KW

sub28100-13020

main28100-24070i3KJ..KM10197511-197802

12V 0.6KW

sub28100-13061

main28100-24090i3KJ..KM10197511-197802

12V 0.8KW

sub28100-24023

28110HOUSING ASSY, STARTER DRIVE

main28110-22012i3K..KM10197105-197404

main28110-24010i3K#,4KJ..KM1#197404-197909

28111BUSH(FOR STARTER HOUSING)

main28111-51011i3K#,4KJ..KM1#197105-197909

STD

main90099-10033i3K..KM10197105-197511

U/S 0.3

main90099-10038i3K..KM10197105-197511

U/S 0.5

28113LEVER, STARTER PINION DRIVE

main28113-41011i3K#,4KJ..KM1#197105-197909

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i3K#,4KJ..KM1#197404-197909

main28114-41011i3K..KM10197105-197404

28117RUBBER(FOR STARTER YOKE)

main28117-41012i3K..KM10197105-197511

main28117-41013i3KJ,4KJ..KM1#197511-197909

28118PLATE(FOR STARTER YOKE)

main28118-41012i3K..KM10197105-197511

main28118-41013i3KJ,4KJ..KM1#197511-197909

28120YOKE ASSY, STARTER

main28120-22011i3K..KM10197105-197511

12V 0.6KW

main28120-24020i4KJ..KM11197802-197909

12V 0.8KW

main28120-24030i4KJ..KM11197802-197909

12V 0.6KW

main28120-36040i3KJ..KM10197511-197802

12V 0.8KW

main28120-89101i3K..KM10197105-197511

12V 0.8KW

28121COIL, STARTER FIELD

main28121-22011i3K#,4KJ..KM1#197105-197909

12V 0.6KW

sub28121-22012

main28121-36040i3KJ,4KJ..KM1#197511-197909

12V 0.8KW

main28121-40014i3K..KM10197105-197511

12V 0.8KW

28123CORE, STARTER POLE

main28123-10011×4i3K#..KM10197105-197802

12V 0.6KW

main28123-40012×4i3K#..KM10197105-197802

12V 0.8KW

main28123-41020×4i4KJ..KM11197802-197909

12V 0.8KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i3K#,4KJ..KM1#197105-197909

28130BBOLT(FOR STARTER COMMUTATOR END FRAME SETTING)

main90099-04269×2i3K#,4KJ..KM1#197404-197909

0.6KW

main90099-04816×2i3K..KM10197105-197404

0.6KW

main90099-04817×2i3K..KM10197105-197404

0.8KW

main90099-04884×2i3K#,4KJ..KM1#197404-197909

0.8KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i3K#,4KJ..KM1#197105-197909

STD

main90099-10039i3K#,4KJ..KM1#197105-197909

U/S 0.3

main90099-10040i3K#,4KJ..KM1#197105-197909

U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i3K#,4KJ..KM1#197105-197909

28133COVER, BEARING(FOR END FRAME)

main28132-41011i3K#,4KJ..KM1#197105-197909

28133SSCREW, W/WASHER(FOR BEARING COVER SETTING)

main90099-00879×2i4KJ..KM11197802-197909

main90099-00902×2i3KJ..KM10197511-197802

main93219-14008×2i3K..KM10197105-197404

28136PLATE, STARTER LOCK

main28136-41011i3K#,4KJ..KM1#197105-197909

28138RUBBER(FOR STARTER BEARING COVER)

main28138-41011i3K#,4KJ..KM1#197105-197909

28140HOLDER ASSY, STARTER BRUSH

main28140-22011i3K#..KM10197105-197802

12V 0.6KW

main28140-41012i3K#..KM10197105-197802

12V 0.8KW

main28140-41013i4KJ..KM11197802-197909

12V 0.8KW

28142BRUSH, STARTER

main28142-10011×2i4KJ..KM11197802-197909

12V 0.6KW

main28142-10021×4i3KJ..KM10197511-197802

12V 0.6KW

main28142-21010×2i4KJ..KM11197802-197909

12V 0.8KW

28143SPRING, STARTER BRUSH

main28143-40010×4i3K#..KM10197105-197802

main28143-40040×4i4KJ..KM11197802-197909

28150SWITCH ASSY, MAGNET STARTER

main28150-22011i3K..KM10197105-197404

main28150-24010i3K..KM10197404-197511

12V 0.8KW

main28150-24060i4KJ..KM11197802-197909

12V 0.6KW

main28150-24061i4KJ..KM11197802-197909

12V 0.8KW

main28150-25010i3KJ..KM10197511-197802

12V 0.6KW

sub28150-25030

main28150-25032i3KJ..KM10197511-197802

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-22011i3K#..KM10197105-197802

12V 0.6KW

main28160-22021i3K..KM10197105-197511

12V 0.8KW

main28160-40014i3KJ..KM10197511-197802

12V 0.8KW

28162SPRING, STARTER BRAKE

main28162-41011i3K#,4KJ..KM1#197105-197909

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i3K#,4KJ..KM1#197105-197909

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i3K#,4KJ..KM1#197105-197909

28246COVER, MAGNET SWITCH

main28246-25010i3KJ..KM10197511-197802

9009220604

main90092-20604

9009331202

main90093-31202

9009900102

main90099-00102

9009900111

main90099-00111

9009901090

main90099-01090

9009901140

main90099-01140

9009902092

main90099-02092

9009902169

main90099-02169

9009905809

main90099-05809

9161141035

main91611-41035

9162140840

main91621-40840

9411040800

main94110-40800

9451100400

main94511-00400

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

9454200800

main94542-00800

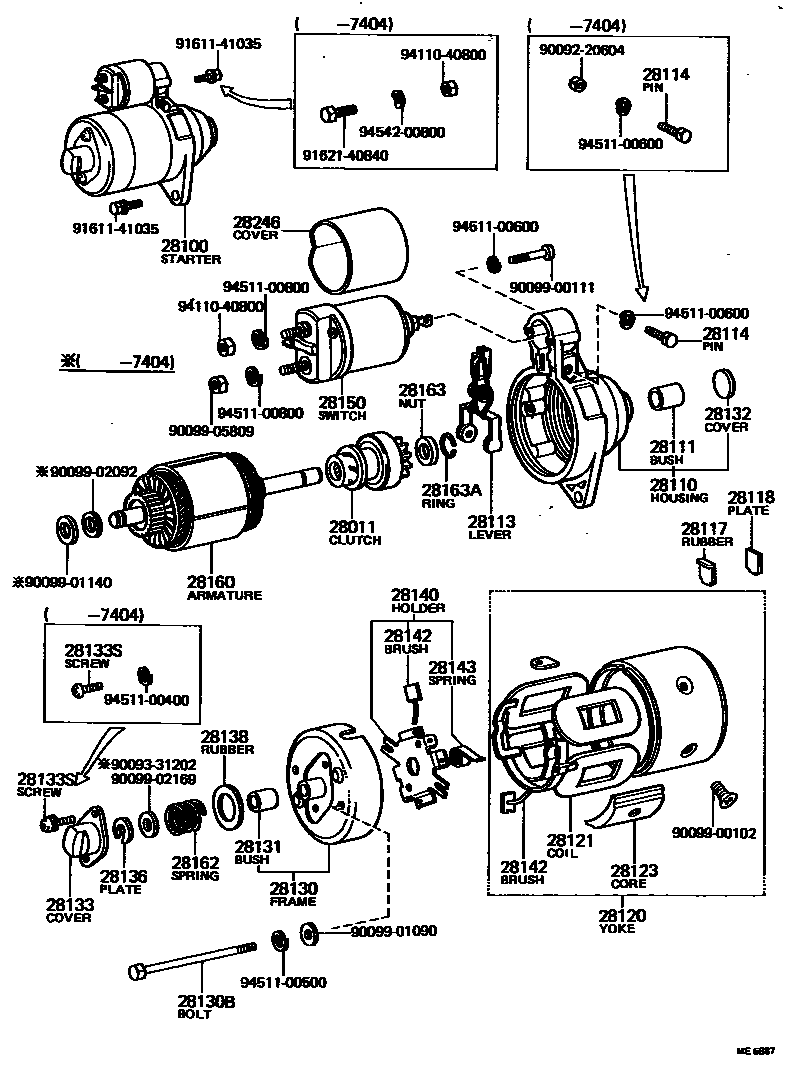

45 parts on this diagram · 2 diagrams in section
