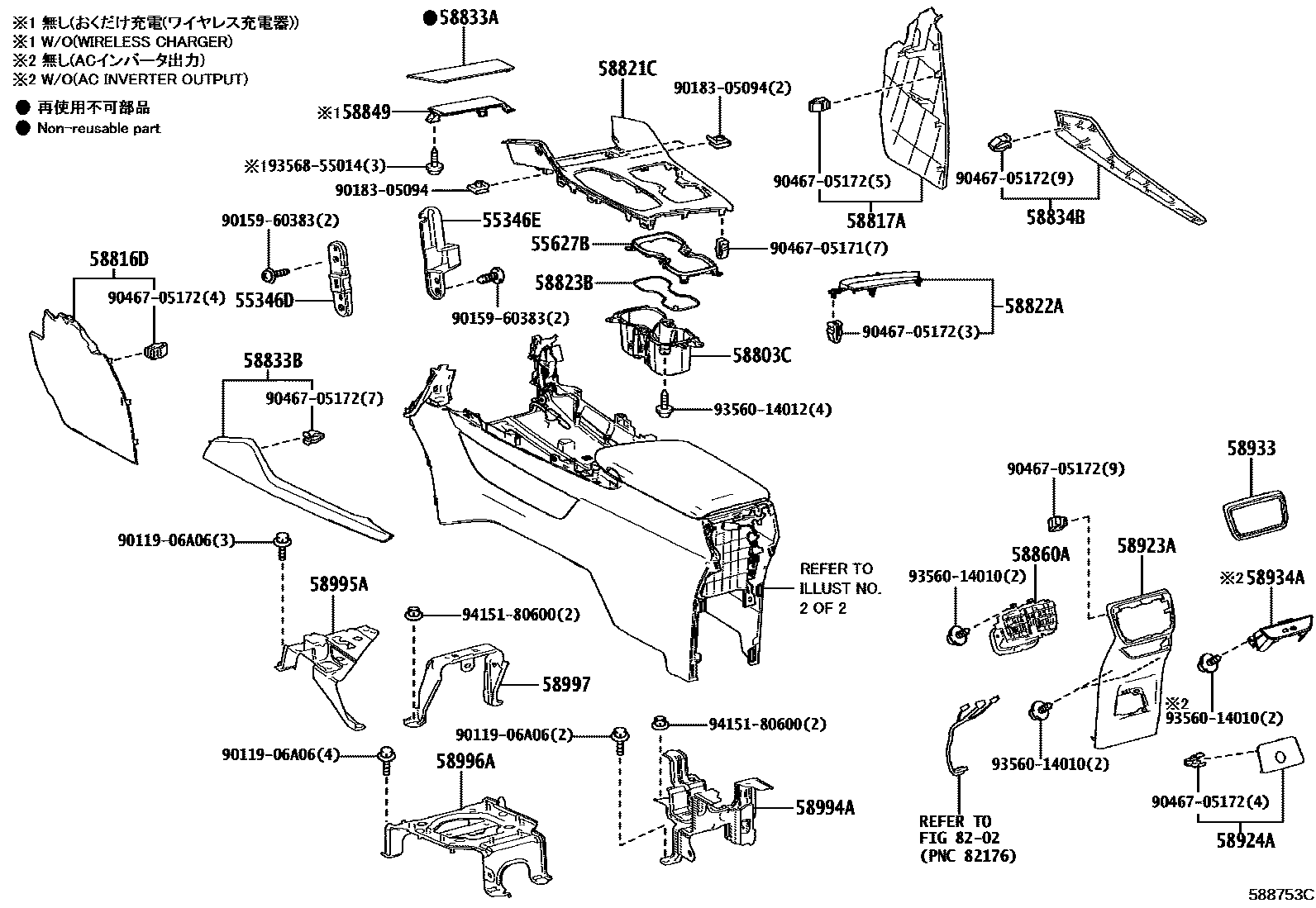

CONSOLE BOX & BRACKET
55346DBRACKET, AIR CONDITIONING MOUNTING, NO.1
55346EBRACKET, AIR CONDITIONING MOUNTING, NO.2
55627BRAIL, CONSOLE BOX CUP HOLDER
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM1#,8#
BLACK,TRIM1#
HAZEL,TRIM4#
BLACK,TRIM1#
BLACK,TRIM1#,8#
HAZEL,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM1#
BLACK,TRIM1#,8#
HAZEL,TRIM4#
BLACK,TRIM1#
BLACK,TRIM1#,8#
HAZEL,TRIM4#
58821CPANEL, CONSOLE, UPPER
TSUYASUMI,TRIM1#,4#,8#
INSTRUMENT FINISH PANEL-WITH(DECORATE),TSUYASUMI,TRIM1#,4#,8#
INSTRUMENT FINISH PANEL-WITH(DECORATE)&WIRELESS CHARGER-WITH,TSUYASUMI,TRIM1#,4#,8#
INSTRUMENT FINISH PANEL-WITH(DECORATE)&WIRELESS CHARGER-WITH,TSUYASUMI,TRIM1#,4#,8#
TSUYASUMI,TRIM1#,4#,8#
INSTRUMENT FINISH PANEL-WITH(DECORATE),TSUYASUMI,TRIM1#,4#,8#
58822APANEL, CONSOLE, UPPER REAR
58823BBOX, CONSOLE COMPARTMENT
58833ACOVER, CONSOLE, UPPER
INSTRUMENT FINISH PANEL-WITH(DECORATE)&WIRELESS CHARGER-WITH
sub58833-46031
main58833-46031iXEBM15..LHD..C;XEBM10..LHD..(B,C);XEBM15..LHD..B..EUR;XEBM15..LHD..L..(CHI,GEN)202312
WIRELESS CHARGER-WITH
INSTRUMENT FINISH PANEL-WITH(DECORATE)&WIRELESS CHARGER-WITH
INSTRUMENT FINISH PANEL-WITH(DECORATE)&WIRELESS CHARGER-WITH
sub58833-46041
WIRELESS CHARGER-WITH
sub58833-46041
WIRELESS CHARGER-WITH
INSTRUMENT FINISH PANEL-WITH(DECORATE)&WIRELESS CHARGER-WITH
main58833-46050iXEBM15..LHD..C;XEBM10..LHD..(B,C);XEBM15..LHD..B..EUR;XEBM15..LHD..L..(CHI,GEN)202301-202312
WIRELESS CHARGER-WITHOUT
sub58833-46051
WIRELESS CHARGER-WITHOUT
WIRELESS CHARGER-WITHOUT
sub58833-46061
WIRELESS CHARGER-WITHOUT
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
FROMAGE,TRIM8#
BLACK,TRIM1#,4#
BLACK,TRIM1#
FROMAGE,TRIM8#
BLACK,TRIM1#,4#
BLACK,TRIM1#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
FROMAGE,TRIM8#
BLACK,TRIM1#
BLACK,TRIM1#,4#
FROMAGE,TRIM8#
BLACK,TRIM1#
BLACK,TRIM1#,4#
58849COVER, CONSOLE BOX HOLE, NO.2
WIRELESS CHARGER-WITHOUT
58860AREGISTER ASSY, CONSOLE BOX
58923APANEL, CONSOLE REAR END
BLACK,TRIM1#
BLACK,TRIM1#,8#
HAZEL,TRIM4#
58924APANEL, CONSOLE REAR END, NO.2
main58924-46010iXEBM10..CHI,EUR;XEBM15..ARL,EUR;XEBM10..LHD..GEN;XEBM15..LHD..(C,L)..(CHI,GEN)202311
AC INVERTER OUTPUT-WITHOUT
AC INVERTER OUTPUT-220V/1500W
AC INVERTER OUTPUT-220V/150W
58933GARNISH, CONSOLE REAR END PANEL
58934AGARNISH, CONSOLE REAR END PANEL, NO.2
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8202
9011906A06
main90119-06A06
9015960383
main90159-60383
9018305094
main90183-05094
9046705171
main90467-05171
9046705172
main90467-05172
9356014010
main93560-14010
9356014012
main93560-14012
9356855014
main93568-55014
9415180600
main94151-80600
32 parts on this diagram · 4 diagrams in section
