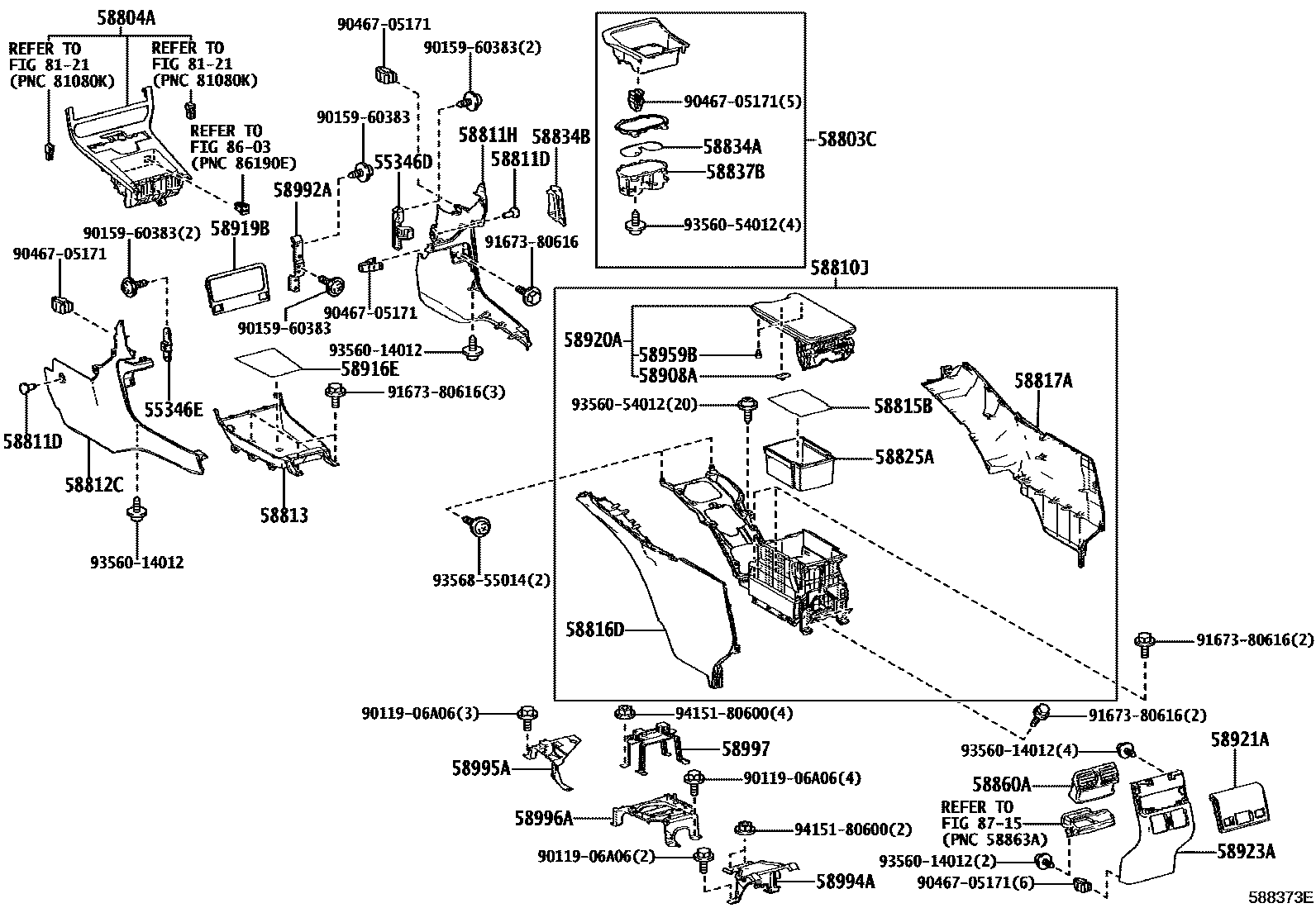

CONSOLE BOX & BRACKET

0001 1 0002 1

55346DBRACKET, AIR CONDITIONING MOUNTING, NO.1

main55346-42040iXEAM10,YEAM15..LHD202203-202411

main55346-42060iXEAM10,YEAM15..RHD202203-202411

55346EBRACKET, AIR CONDITIONING MOUNTING, NO.2

main55346-42050iXEAM10,YEAM15..LHD202203-202411

main55346-42070iXEAM10,YEAM15..RHD202203-202411

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-42070-C0iXEAM10..TAIW;XEAM10,YEAM15..H202311-202411

BLACK,TRIM1#,2#

main58803-42070-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

main58803-42080-C0iXEAM10,YEAM15..P..EUR202203-202311

BLACK,TRIM2#

main58803-42080-C0iXEAM10,YEAM15..P..EUR202203-202311

BLACK,TRIM1#,2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-42450iXEAM10,YEAM15..LHD..M202203-202411

main58804-42500iXEAM10..TAIW202203-202311

WIRELESS CHARGER-WITHOUT

main58804-42520iXEAM10,YEAM15..LHD..(H,P)..EUR202203-202311

WIRELESS CHARGER-WITH

main58804-42570iXEAM10,YEAM15..RHD..M202203-202411

main58804-42600iXEAM10,YEAM15..RHD..(H,P)202203-202311

main58804-42680iXEAM10..TAIW202311-202411

WIRELESS CHARGER-WITHOUT

main58804-42690iXEAM10..TAIW202311-202411

WIRELESS CHARGER-WITH

main58804-42700iXEAM10,YEAM15..RHD..P..EUR202311-202411

WIRELESS CHARGER-WITHOUT

main58804-42710iYEAM15..RHD;XEAM10..RHD..(H,P)..EUR202311-202411

WIRELESS CHARGER-WITH

58810JBOX ASSY, CONSOLE

main58810-42080-C0iXEAM10,YEAM15..M202203-202411

BLACK,TRIM2#

main58810-42090-C6iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK/LT.GRAY,TRIM1#

main58810-42090-C7iXEAM10,YEAM15..H,P202203-202411

BLACK/BLACK,TRIM2#

58811DCLIP(FOR CONSOLE BOX)

main55328-10070-C0iXEAM10,YEAM15202203-202411

BLACK

58811HBOX, CONSOLE, RH

main58811-42040-C0iXEAM10,YEAM15..LHD..(M,P)..EUR202203-202411

BLACK,TRIM2#

main58811-42040-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM1#,2#

main58812-42070-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM2#

main58812-42070-C0iXEAM10,YEAM15..RHD..(M,P)202203-202411

BLACK,TRIM1#,2#

58812CBOX, CONSOLE, LH

main58811-42050-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM1#,2#

main58811-42050-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM2#

main58812-42060-C0iXEAM10,YEAM15..LHD..(M,P)..EUR202203-202411

BLACK,TRIM2#

main58812-42060-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM1#,2#

58813BOX, CONSOLE, UPPER

main58813-42110-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM1#,2#

main58813-42110-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM2#

main58813-42120-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM2#

main58813-42120-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM1#,2#

58815BCARPET, CONSOLE BOX

main58815-42060iXEAM10,YEAM15202203-202411

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-42140-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

main58816-42140-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-42140-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

main58817-42140-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

58825APOCKET, CONSOLE BOX

main58825-42040iXEAM10,YEAM15202203-202411

58834ACOVER, CONSOLE, LOWER

main58834-42130iXEAM10,YEAM15202203-202411

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-42110-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM1#,2#

main58834-42110-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM2#

main58834-42120-C0iXEAM10,YEAM15..RHD..(M,P)202203-202411

BLACK,TRIM2#

main58834-42120-C0iXEAM10,YEAM15..RHD..(M,P)202203-202411

BLACK,TRIM1#,2#

58837BBOX, CONSOLE CUP HOLDER

main58837-42100iXEAM10,YEAM15202203-202411

58860AREGISTER ASSY, CONSOLE BOX

main58860-48050-C2iXEAM10,YEAM15202203-202411

BLACK

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iXEAM10,YEAM15202203-202411

58916EMAT, BOX BOTTOM

main58916-42060-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM2#

main58916-42060-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM1#,2#

main58916-42070-C0iXEAM10,YEAM15..RHD..(M,P)202203-202411

BLACK,TRIM2#

main58916-42070-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM1#,2#

58919BPLATE, CONSOLE BOX

main58919-42010iXEAM10,YEAM15202203-202411

58920AARMREST ASSY, REAR CONSOLE

main58920-42040-C0iXEAM10,YEAM15..M202203-202411

BLACK,TRIM2#

main58920-42050-B3iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

LT.GRAY,TRIM1#

main58920-42050-C1iXEAM10,YEAM15..H,P202203-202411

BLACK,TRIM2#

58921APANEL, REAR CONSOLE, UPPER

main58921-42070iXEAM10,YEAM15202203-202411

58923APANEL, CONSOLE REAR END

main58923-42110-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

main58923-42110-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iXEAM10,YEAM15202203-202411

58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH

main58992-42020iXEAM10,YEAM15..LHD202203-202411

main58992-42030iXEAM10,YEAM15..RHD202203-202411

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-42040iXEAM10,YEAM15202203-202411

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-42040iXEAM10,YEAM15202203-202411

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-42090iXEAM10,YEAM15202203-202411

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-42050iXEAM10,YEAM15202203-202411

8121

8603

8715

9011906A06

main90119-06A06

9015960383

main90159-60383

9046705171

main90467-05171

9167380616

main91673-80616

9356014012

main93560-14012

9356054012

main93560-54012

9356855014

main93568-55014

9415180600

main94151-80600

40 parts on this diagram · 2 diagrams in section
