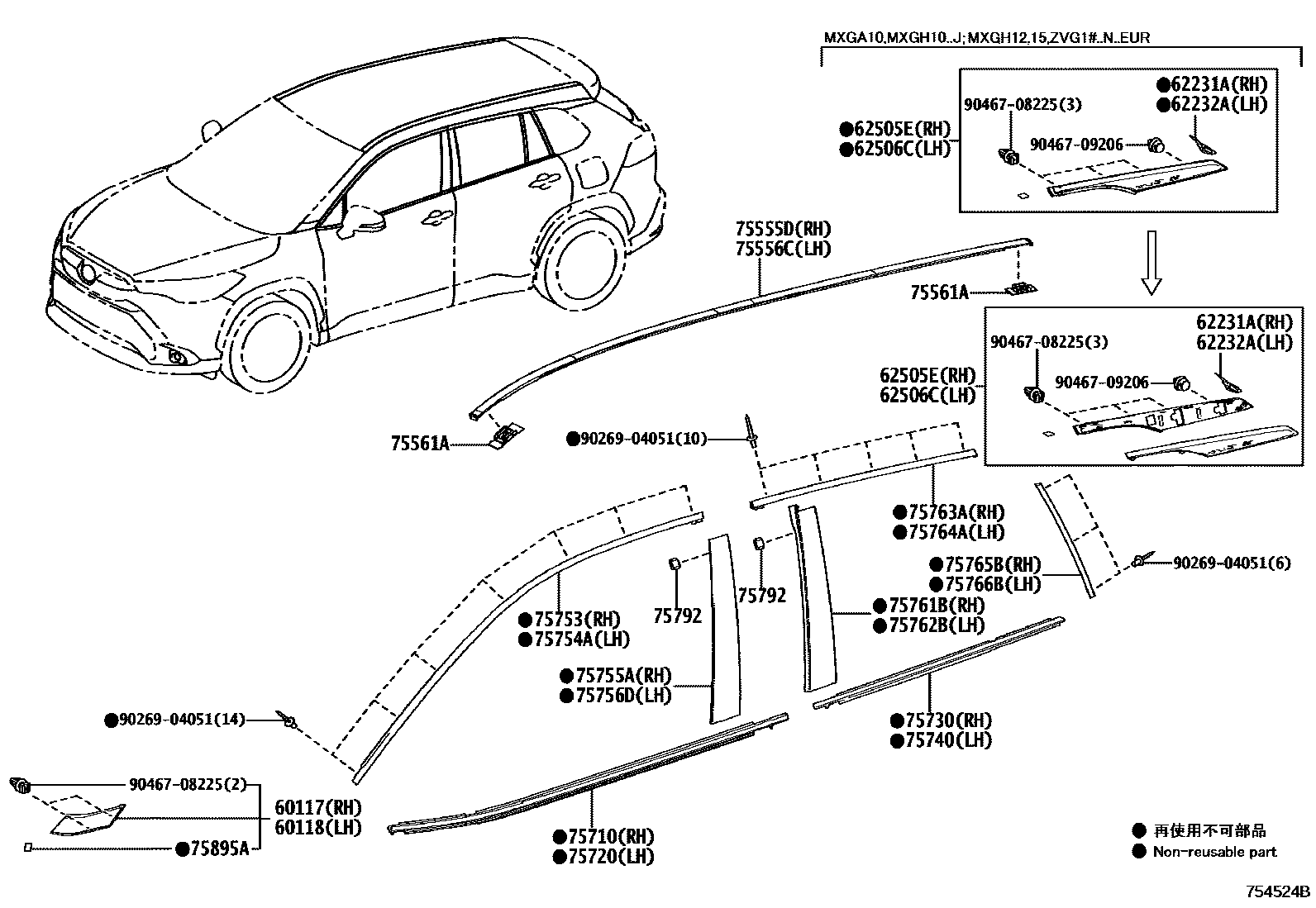

SIDE MOULDING

0001 1PILLAR & ROOF MOULDING 0002 1ROCKER & ARCH MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-16010iMXGA10,MXGH1#,ZVG1#202207

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-16010iMXGA10,MXGH1#,ZVG1#202207

62231APAD, QUARTER PILLAR, RH

main62523-16040iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main62523-16050iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

62232APAD, QUARTER PILLAR, LH

main62524-16040iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main62524-16050iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

NO PAINT REQ.

main62505-16020iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

PLATED

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

NO PAINT REQ.

main62506-16020iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

PLATED

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

MOON ROOF-WITH(PANORAMA ROOF)

main75555-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

ROOF RAIL-WITH

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

MOON ROOF-WITH(PANORAMA ROOF)

main75556-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

ROOF RAIL-WITH

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-48020iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

MOON ROOF-WITH(PANORAMA ROOF)

main75561-48020iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

ROOF RAIL-WITH

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-16220iMXGA10,MXGH1#,ZVG1#202207

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-16220iMXGA10,MXGH1#,ZVG1#202207

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-16090iMXGA10,MXGH1#,ZVG1#202207

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-16090iMXGA10,MXGH1#,ZVG1#202207

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main75753-16020iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main75754-16020iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-16010iMXGA10,MXGH1#,ZVG1#202207

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-16010iMXGA10,MXGH1#,ZVG1#202207

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-16010iMXGA10,MXGH1#,ZVG1#202207

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-16010iMXGA10,MXGH1#,ZVG1#202207

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main75763-16020iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main75764-16020iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-16010iMXGA10,MXGH1#,ZVG1#202207

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-16010iMXGA10,MXGH1#,ZVG1#202207

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iMXGA10,MXGH1#,ZVG1#202207

75895ATAPE, MOULDING, NO.1

main75895-16030iMXGA10,MXGH1#,ZVG1#202207

9026904051

main90269-04051

9046708225

main90467-08225

9046709206

main90467-09206

28 parts on this diagram · 2 diagrams in section
