CONSOLE BOX & BRACKET

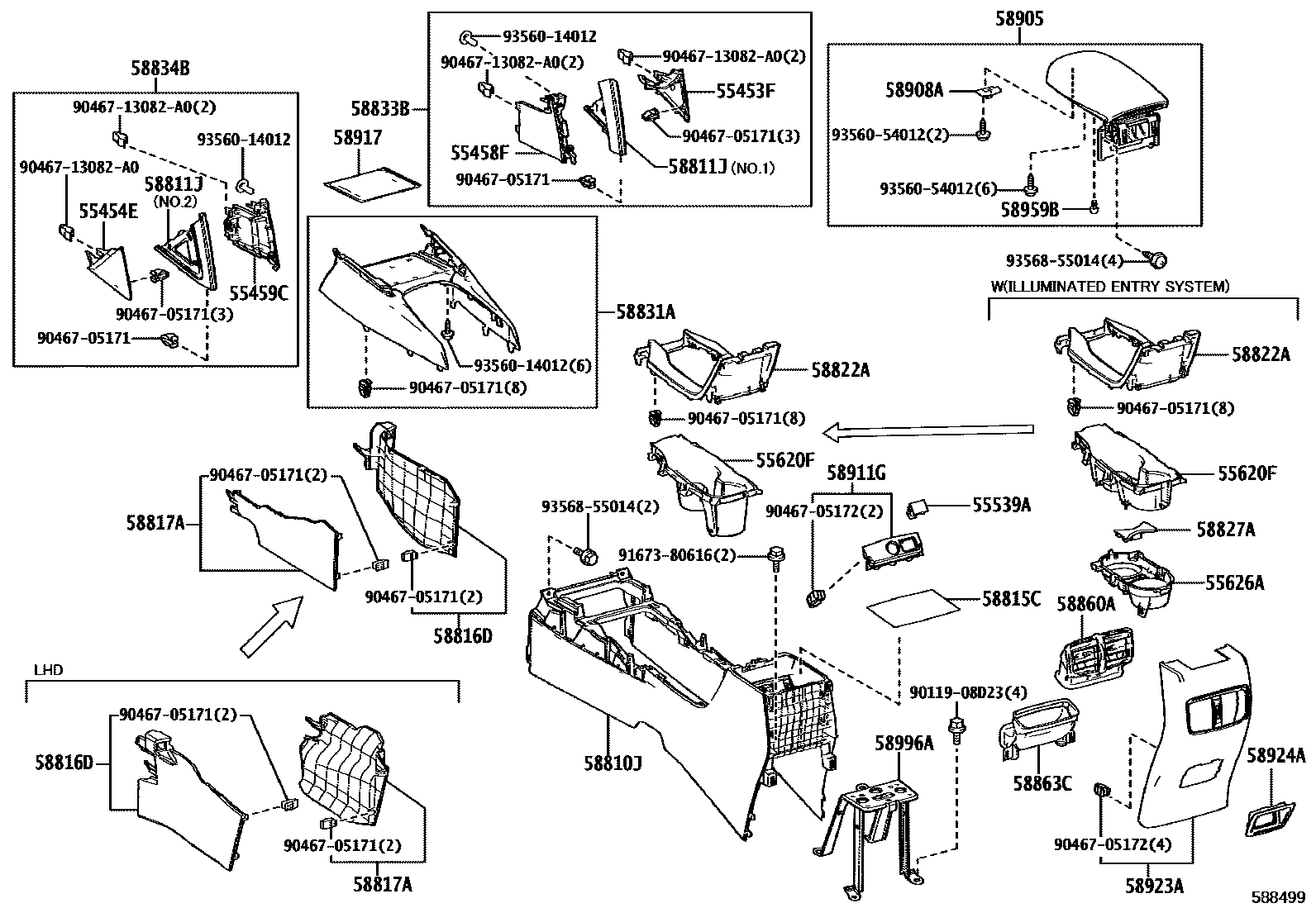

Parts diagram
55453FPAD, INSTRUMENT, LOWER RH
main55453-16030i202207
55454EPAD, INSTRUMENT, LOWER LH
main55454-16020i202207
55458FCOVER, INSTRUMENT, LOWER RH
main55458-16030i202207
55459CCOVER, INSTRUMENT, LOWER LH
main55459-16080i202207
55539ACOVER, SPARE SWITCH HOLE
main55539-12260-C0i202207
BLACK,TRIM2#
main55539-12260-C0i202207
BLACK,TRIM1#,2#
55620FHOLDER ASSY, CONSOLE BOX CUP
main55620-16010i202207
main55620-16020i202207
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP)
main55620-16030i202207
main55620-16040i202207
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP)
55626ARETAINER, INSTRUMENT PANEL UNDER TRAY WALL
main55626-16010i202207
58810JBOX ASSY, CONSOLE
main58810-16010-C0i202207
BLACK,TRIM2#
main58810-16010-C0i202207
BLACK,TRIM1#,2#
58811JPLATE, CONSOLE
main58811-16120-B0i202207
SILVER,TRIM2#,NO.1:REFER ILLUST.
main58811-16120-B0i202207
SILVER,TRIM1#,2#,NO.1:REFER ILLUST.
main58812-16020-B0i202207
SILVER,TRIM2#,NO.2:REFER ILLUST.
main58812-16020-B0i202207
SILVER,TRIM1#,2#,NO.2:REFER ILLUST.
58815CCARPET, CONSOLE BOX
main58815-12240i202207
58816DINSERT, CONSOLE BOX, FRONT NO.1
main58816-16010-C0i202207
BLACK,TRIM2#
main58816-16010-C0i202207
BLACK,TRIM1#,2#
main58816-16020-C0i202207
BLACK,TRIM1#,2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
main58817-16010-C0i202207
BLACK,TRIM2#
main58817-16010-C0i202207
BLACK,TRIM1#,2#
main58817-16020-C0i202207
BLACK,TRIM1#,2#
58822APANEL, CONSOLE, UPPER REAR
main58822-16010i202207
SEAT COVER MATERIAL-FABRIC & LEATHER
main58822-16020i202207
58827AGARNISH, CONSOLE BOX POCKET
main58827-12030i202207
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
main58831-16020-C0i202207
BLACK,TRIM2#
main58831-16020-C0i202207
BLACK,TRIM1#,2#
main58831-16030-C0i202207
BLACK,TRIM2#
main58831-16030-C0i202207
WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
main58833-16030-B0i202207
SILVER,TRIM2#
main58833-16030-B0i202207
SILVER,TRIM1#,2#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
main58834-16010-B0i202207
SILVER,TRIM2#
main58834-16010-B0i202207
SILVER,TRIM1#,2#
58860AREGISTER ASSY, CONSOLE BOX
main58860-16010i202207
58863CDUCT, CONSOLE BOX, NO.3
main58863-12040i202207
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-12A90-B2i202207
MID. GRAY,TRIM10
main58905-12A90-B2i202207
MID. GRAY,TRIM1#
main58905-12A90-C3i202207
BLACK,TRIM10,2#
main58905-12A90-C3i202207
BLACK,TRIM1#,2#
main58905-12A90-C3i202207
BLACK,TRIM2#
main58905-12B00-24i202207
BLACK,TRIM2#
main58905-12B00-24i202207
BLACK,TRIM11,2#
main58905-12B00-24i202207
SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM10,11,2#
main58905-12B00-B2i202207
MEDIUM GRAY,TRIM11
main58905-12B00-B2i202207
SEAT COVER MATERIAL-FABRIC & LEATHER,MEDIUM GRAY,TRIM10,11
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-33030i202207
58911GPANEL, BOX, NO.1
main58911-12540-C0i202207
BLACK,TRIM2#
main58911-12540-C0i202207
BLACK,TRIM1#,2#
58917MAT, BOX BOTTOM, NO.2
main58917-16020i202207-202305
sub58917-16021
main58917-16021i202306
58923APANEL, CONSOLE REAR END
main58923-16040-C0i202207
BLACK,TRIM2#
main58923-16040-C0i202207
BLACK,TRIM1#,2#
main58923-16050-C0i202207
BLACK,TRIM1#,2#
58924APANEL, CONSOLE REAR END, NO.2
main58924-16010-C0i202207
BLACK,TRIM2#
main58924-16010-C0i202207
BLACK,TRIM1#,2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060i202207
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-16080i202207
9011908D23
main90119-08D23
9046705171
main90467-05171
9046705172
main90467-05172
9046713082A0
main90467-13082A0
9167380616
main91673-80616
9356014012
main93560-14012
9356054012
main93560-54012
9356855014
main93568-55014

35 parts on this diagram · 1 diagram in section
