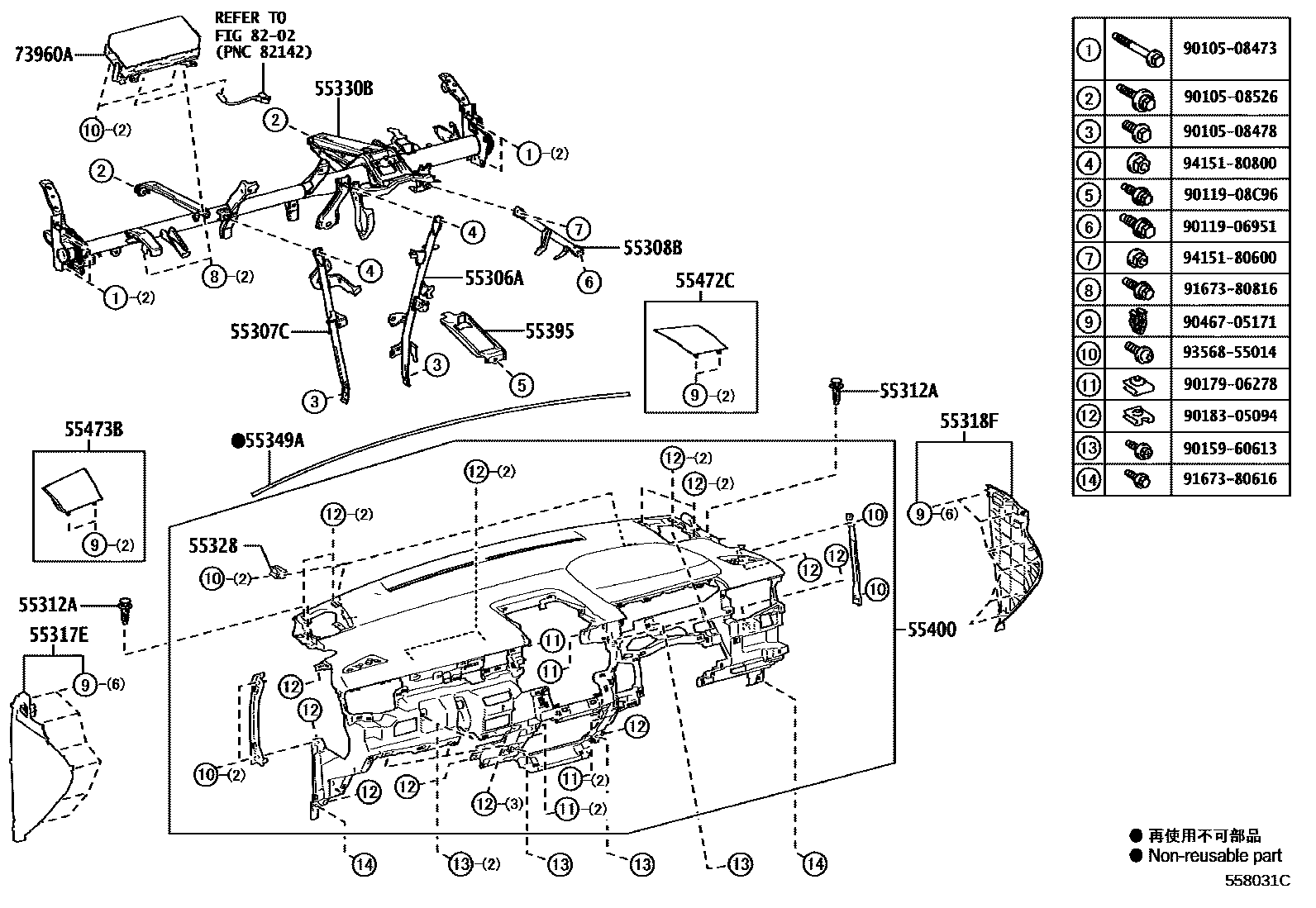

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16140iMXGA10,MXGH1#,ZVG13..RHD202207-202401

main55306-16160iMXGH12,15,ZVG1#..LHD202207-202401

main55306-16170iMXGA10,MXGH1#,ZVG13..RHD202401

main55306-16180iMXGH12,15,ZVG1#..LHD202401

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16140iMXGA10,MXGH1#,ZVG13..RHD202207

main55307-16160iMXGH12,15,ZVG1#..LHD202207

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-16100iMXGA10,MXGH1#,ZVG13..RHD202207

main55308-16110iMXGH12,15,ZVG1#..LHD202207

55312ACLIP, INSTRUMENT PANEL

main52161-16010×2iMXGA10,MXGH1#,ZVG1#202207

sub52161-0K040

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-16020-C0iMXGH12,15,ZVG1#..LHD;MXGA10,MXGH10,15..(J,N)..ARL202207

BLACK,TRIM2#

main55317-16030-C0iMXGH12,15,ZVG13..RHD..EUR202207

BLACK,TRIM1#,2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-16020-C0iMXGH15..N..ARL;MXGH12,15..RHD..EUR;MXGA10,MXGH10,ZVG13..RHD..(G,J,N)202207

BLACK,TRIM2#

main55318-16030-C0iMXGH12,15,ZVG1#..LHD202207

BLACK,TRIM1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iMXGA10,MXGH1#,ZVG1#202207

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-16250iMXGA10,MXGH1#,ZVG13..RHD202207

main55330-16260iMXGH12,15,ZVG1#..LHD202207

55349ACUSHION, INSTRUMENT PANEL

main55349-16050iMXGA10,MXGH1#,ZVG1#202207

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-10010iMXGA10,MXGH1#,ZVG13..RHD202207

main55395-10020iMXGH12,15,ZVG1#..LHD202207

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-16010-C0iMXGH15..N..ARL;MXGH12,15..RHD..EUR;MXGA10,MXGH10,ZVG13..RHD..(G,J,N)202207

BLACK,TRIM2#

main55400-16030-C0iMXGH12,15,ZVG1#..LHD202207

BLACK,TRIM1#,2#

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-16040-C0supersedes 55472-16050-C0iMXGA10,MXGH10,15..E..ARL202207

AUDIO(OVERSEAS MARKET)-10.5INCHI DISPLAY & 6SPEAKER,BLACK,TRIM2#

main55472-16070-C0iMXGH12,15,ZVG1#..LHD202207

BLACK,TRIM1#,2#

main55472-16080-C0iMXGH12,15,ZVG12..LHD..E202207

AUDIO(OVERSEAS MARKET)-10.5INCHI DISPLAY & 9SPEAKER(JBL),BLACK,TRIM1#,2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-16020-C0iMXGH15..N..ARL;MXGH12,15..RHD..EUR;MXGA10,MXGH10,ZVG13..RHD..(G,J,N)202207

BLACK,TRIM2#

main55473-16050-C0iMXGH12,15,ZVG1#..LHD202207

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-16030iMXGA10,MXGH1#,ZVG1#202207

8202

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908C96

main90119-08C96

9015960613

main90159-60613

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

29 parts on this diagram · 8 diagrams in section
