43211KNUCKLE, STEERING, RH

main43211-10130i202207

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013i202207

OD=15.9,TYPE A:REFER ILLUST.

main90105-17014i202207

OD=15,TYPE B:REFER ILLUST.

main90105-17015i202207

OD=14,TYPE C:REFER ILLUST.

main90105-17021i202207

OD=17,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002i202207

43212KNUCKLE, STEERING, LH

main43212-10110i202207

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013i202207

OD=15.9,TYPE A:REFER ILLUST.

main90105-17014i202207

OD=15,TYPE B:REFER ILLUST.

main90105-17015i202207

OD=14,TYPE C:REFER ILLUST.

main90105-17021i202207

OD=17,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002i202207

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19275i202207

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003i202207

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12407i202207

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019i202207

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19275i202207

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003i202207

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12407i202207

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019i202207

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-10130i202207

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16091i202207

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90179-14068i202207

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180i202207

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-10110i202207

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16091i202207

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90179-14068i202207

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180i202207

9538102525

main95381-02525

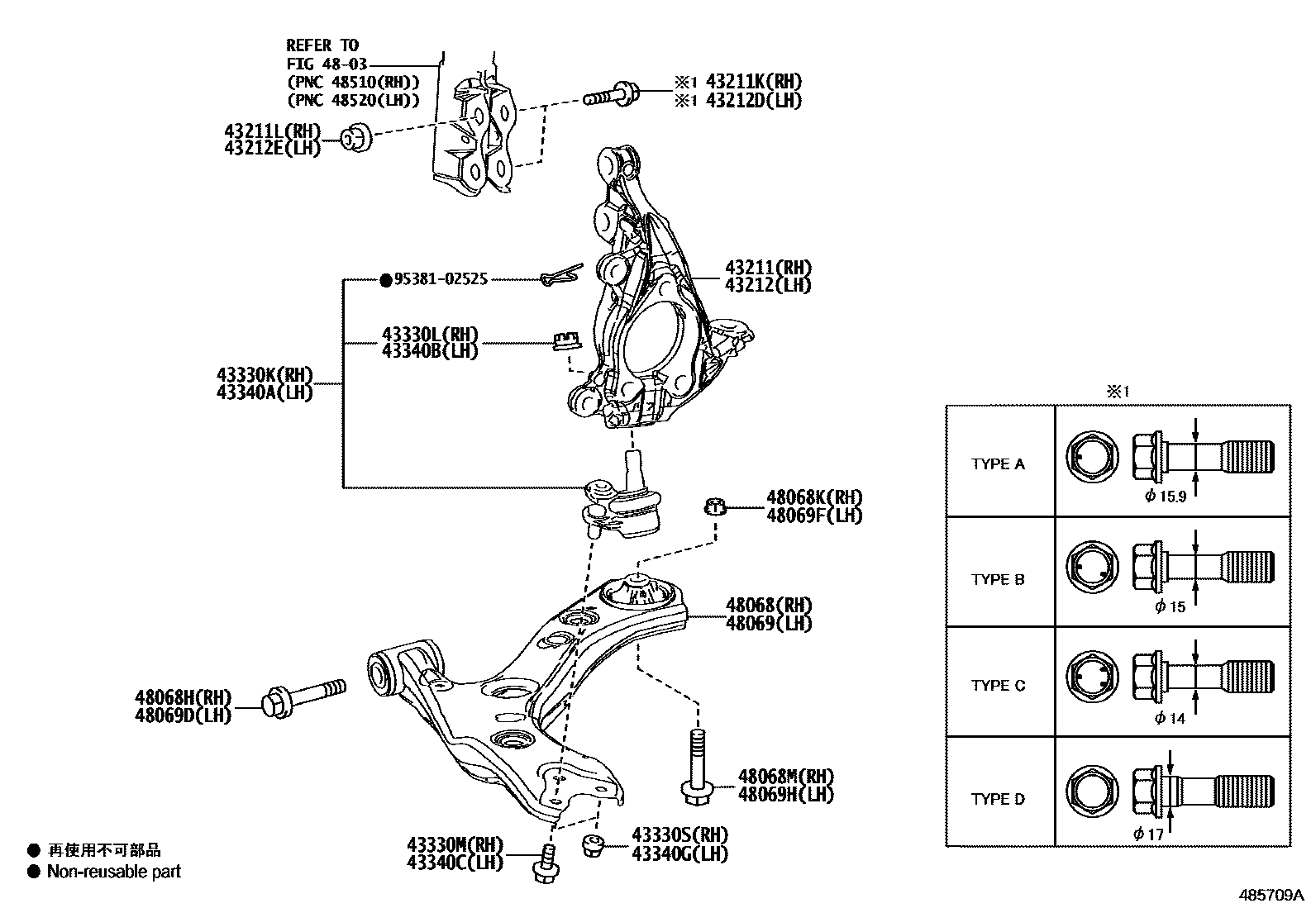

FRONT AXLE ARM & STEERING KNUCKLE
