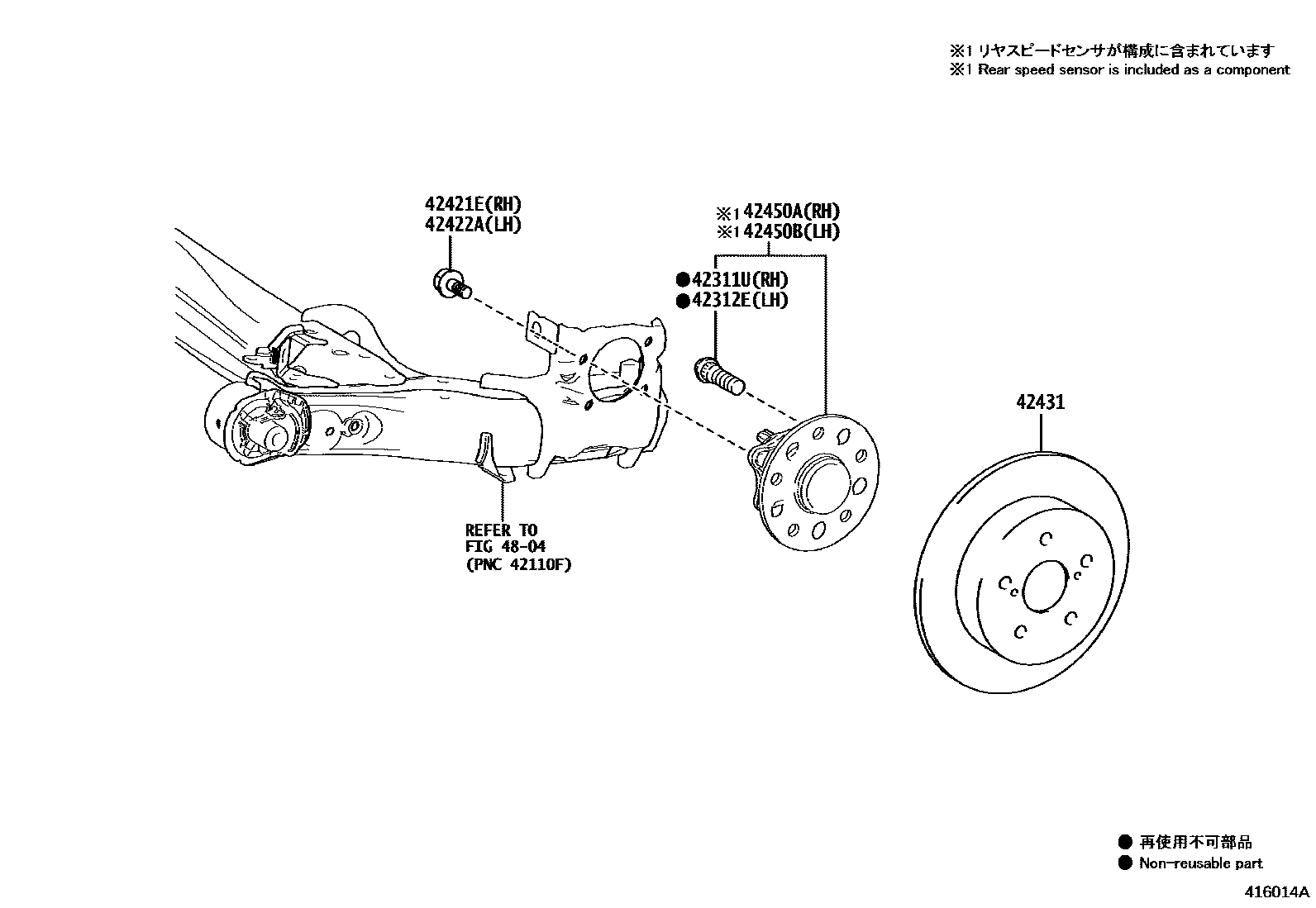

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMXGA10,MXGH1#,ZVG1#202207

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMXGA10,MXGH1#,ZVG1#202207

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iMXGH12,15,ZVG12202207

main90105-12408×4iMXGA10,MXGH10,ZVG13202207

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iMXGH12,15,ZVG12202207

main90105-12408×4iMXGA10,MXGH10,ZVG13202207

42431DISC, REAR

main42431-78010×2iMXGA10,MXGH1#,ZVG1#202207

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-42060iMXGH15202207-202312

main42410-47050iMXGH15202401

main42450-47090iMXGH12,ZVG12202401

main42450-52140iMXGA10,MXGH10,ZVG13202207

main42450-52160iMXGH12,ZVG12202207-202401

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-42060iMXGH15202207-202312

main42410-47050iMXGH15202401

main42450-47090iMXGH12,ZVG12202401

main42450-52140iMXGA10,MXGH10,ZVG13202207

main42450-52160iMXGH12,ZVG12202207-202401

4804

8 parts on this diagram · 4 diagrams in section
