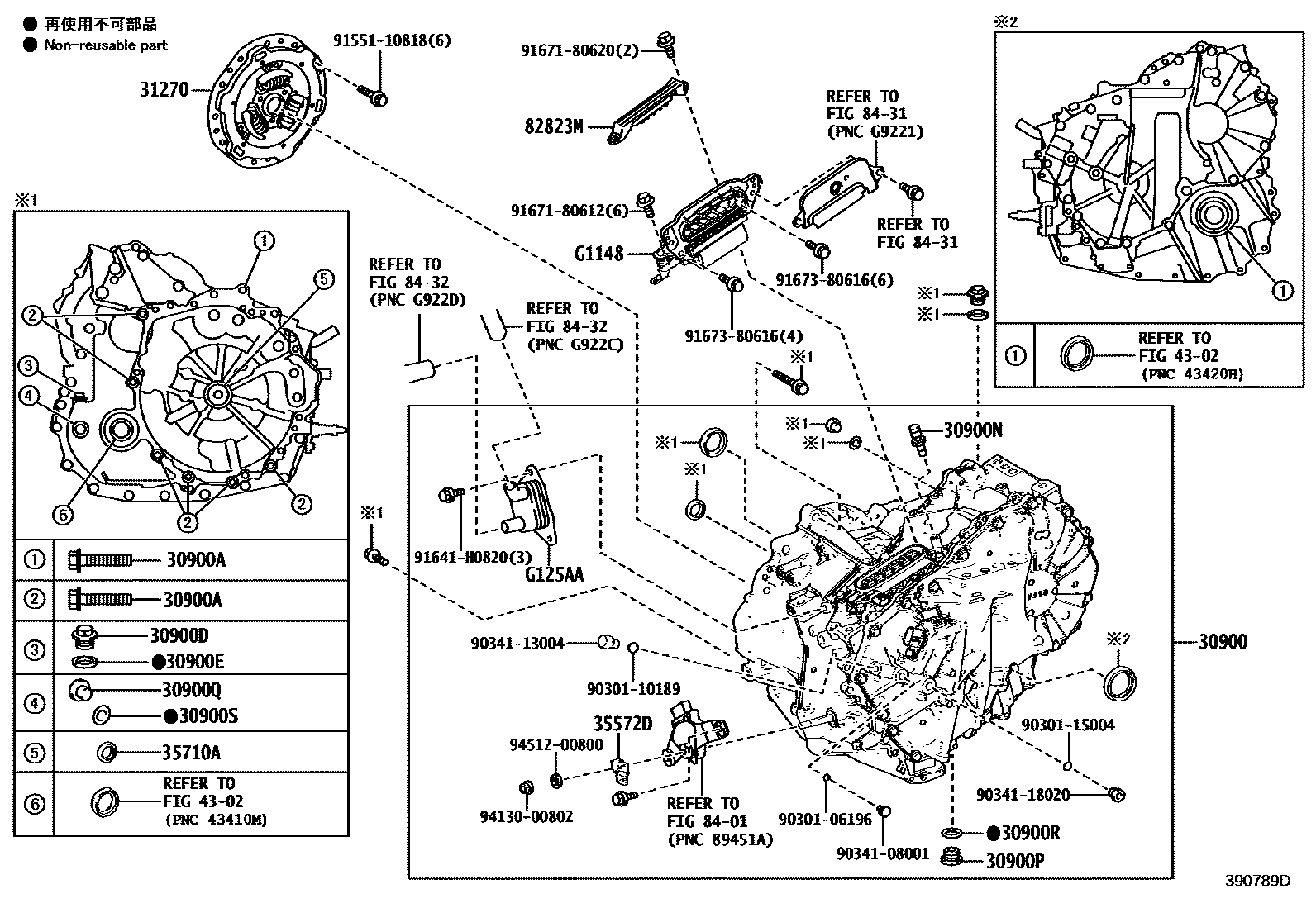

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1REAR TRACTION MOTOR

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-16010iMXGH1#202207

main30900-16030iZVG1#202207-202405

main30900-16040iZVG1#202405

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main91612-61045×7iZVG1#202207

*10-1.25PX45-30

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMXGH1#,ZVG1#202207

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMXGH1#,ZVG1#202207

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMXGH1#,ZVG1#202207

30900PPLUG, DRAIN(HEV)

main90341-18016iMXGH1#,ZVG1#202207

30900QPLUG, FILLER(HEV)

main90341-18090iMXGH1#,ZVG1#202207

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMXGH1#,ZVG1#202207

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMXGH1#,ZVG1#202207

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-28020iZVG1#202207

main31270-63010iMXGH1#202207

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-28140iZVG1#202207

main35572-63020iMXGH1#202207

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25035iZVG1#202207

main90311-27012iMXGH1#202207

4302

82823MCAP, TERMINAL

main82823-28110iMXGH1#,ZVG1#202207

8401

8431

8432

G1148CABLE, MOTOR

mainG114828040iZVG1#202207-202409

mainG114828041iZVG1#202410

mainG114863010iMXGH1#202207-202411

mainG114863011iMXGH1#202412

G125AACOOLER, MOTOR COOLING

mainG125A28010iZVG1#202207

mainG125A63010iMXGH1#202207

9030106196

main90301-06196

9030110189

main90301-10189

9030115004

main90301-15004

9034108001

main90341-08001

9034113004

main90341-13004

9034118020

main90341-18020

9155110818

main91551-10818

91641H0820

main91641-H0820

9167180612

main91671-80612

9167180620

main91671-80620

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

32 parts on this diagram · 3 diagrams in section
