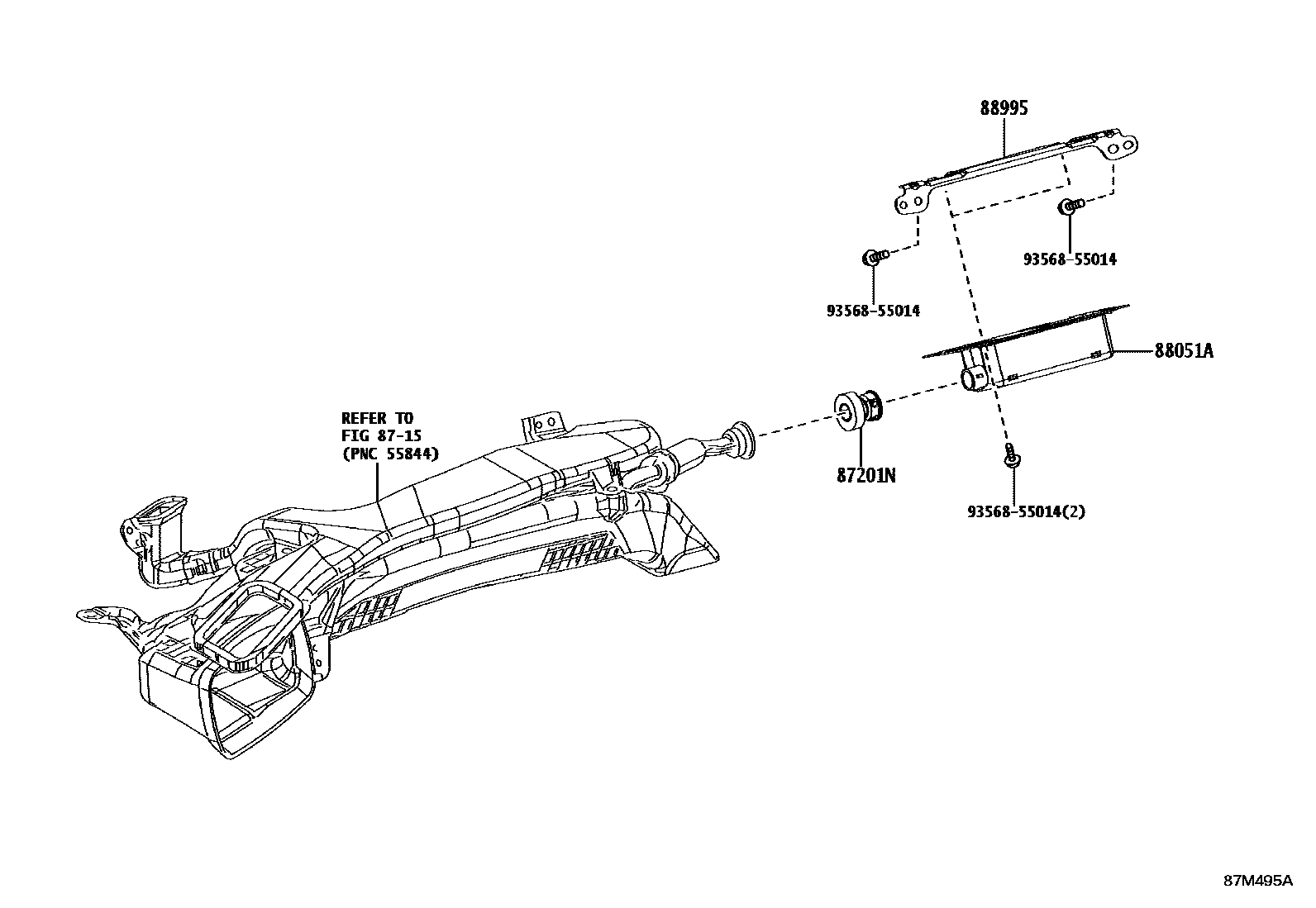

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main87201-K0010iMAYH1#..EUR; MAYH10..LHD..GEN; MAYH10..RHD..GEN; MAYH10..TWN;MAYH1#..RHD..(ARL,GEN)202312

MACAU SPEC; MINUS ION GENERATOR-WITH; PHILIPPINES SPEC

88051AGENERATOR SUB-ASSY,ION

main88051-48010iMAYH1#..EUR; MAYH10..LHD..GEN; MAYH10..RHD..GEN; MAYH10..TWN;MAYH1#..RHD..(ARL,GEN)202312

MACAU SPEC; MINUS ION GENERATOR-WITH; PHILIPPINES SPEC

88995BRACKET,ION GENERATOR, NO.1

main88995-52060iMAYH1#..EUR; MAYH10..LHD..GEN; MAYH10..RHD..GEN; MAYH10..TWN;MAYH1#..RHD..(ARL,GEN)202312

MACAU SPEC; MINUS ION GENERATOR-WITH; PHILIPPINES SPEC

9356855014

main93568-55014

5 parts on this diagram · 2 diagrams in section
