CONSOLE BOX & BRACKET

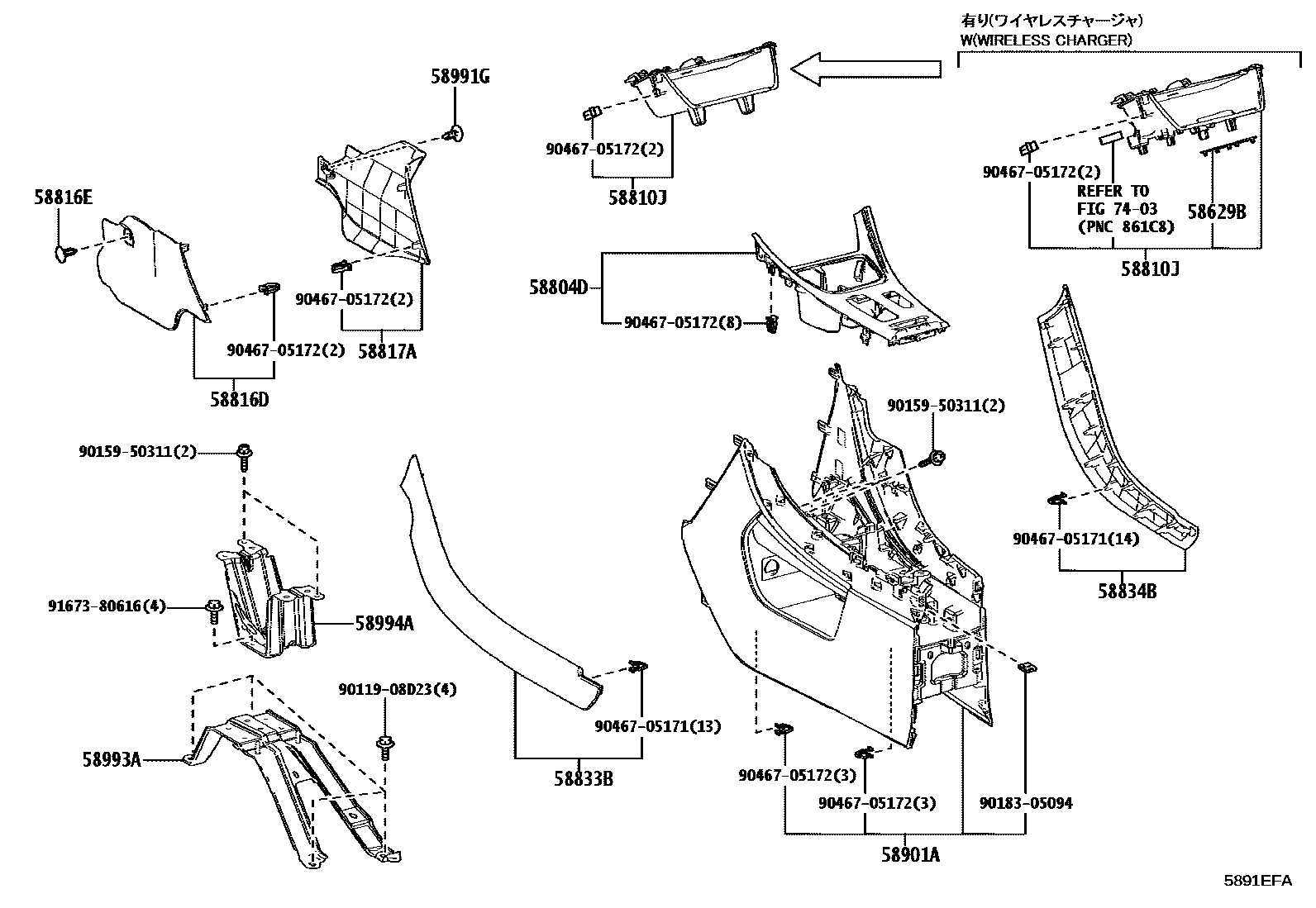

Parts diagram
58629BMAT, CENTER CONSOLE
58804DPANEL SUB-ASSY, CONSOLE, UPPER FRONT
main58804-52080-C2i202312
BLACK,TRIM2#
main58804-52090-C2i202312
BLACK,TRIM2#
main58804-52110-B1i202312
DK.METAL,TRIM0#,2#,3#,4#
main58804-52110-B1i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.METAL,TRIM0#,2#,3#,4#
main58804-52110-B1i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),DK.METAL,TRIM0#,2#,3#,4#
main58804-52110-B1i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,DK.METAL,TRIM0#,2#,3#,4#
main58804-52110-B1i202312
"COOL"&SEAT COVER MATERIAL-ULTRASUEDE-COMBI.,DK.METAL,TRIM0#,2#,3#,4#
main58804-52120-B1i202312
DK.METAL,TRIM0#,2#,3#,4#
main58804-52120-B1i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.METAL,TRIM0#,2#,3#,4#
main58804-52120-B1i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),DK.METAL,TRIM0#,2#,3#,4#
main58804-52120-B1i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,DK.METAL,TRIM0#,2#,3#,4#
main58804-52120-B1i202312
"COOL"&SEAT COVER MATERIAL-ULTRASUEDE-COMBI.,DK.METAL,TRIM0#,2#,3#,4#
58810JBOX ASSY, CONSOLE
main58810-52090i202312
main58810-52110i202312
58816DINSERT, CONSOLE BOX, FRONT NO.1
main58816-52040i202312
main58816-52050i202312
58816ECLIP, CONSOLE BOX INSERT, FRONT
main90467-07049-23i202312
BLACK
sub90467-07049
58817AINSERT, CONSOLE BOX, FRONT NO.2
main58817-52040i202312
main58817-52050i202312
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
main58833-52100-C2i202312
BLACK,TRIM2#
main58833-52110-09i202312
FROMAGE,TRIM0#
main58833-52110-09i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,FROMAGE,TRIM0#
main58833-52110-09i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),FROMAGE,TRIM0#
main58833-52110-09i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,FROMAGE,TRIM0#
main58833-52110-22i202312
BLACK/RED,TRIM20
main58833-52110-22i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RED,TRIM20
main58833-52110-22i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK/RED,TRIM20
main58833-52110-22i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,BLACK/RED,TRIM20
main58833-52110-24i202312
BLACK/LT.GRAY,TRIM20
main58833-52110-24i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/LT.GRAY,TRIM20
main58833-52110-24i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK/LT.GRAY,TRIM20
main58833-52110-24i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,BLACK/LT.GRAY,TRIM20
main58833-52110-M4i202312
MAUVE,TRIM41
main58833-52110-M4i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MAUVE,TRIM41
main58833-52110-M4i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),MAUVE,TRIM41
main58833-52110-M4i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,MAUVE,TRIM41
main58833-52110-N4i202312
SADDLE TAN,TRIM40
main58833-52110-N4i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SADDLE TAN,TRIM40
main58833-52110-N4i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),SADDLE TAN,TRIM40
main58833-52110-N4i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,SADDLE TAN,TRIM40
main58833-52130-C2i202312
BLACK,TRIM2#
main58833-52140-09i202312
FROMAGE/SHELL,TRIM0#
main58833-52140-09i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,FROMAGE/SHELL,TRIM0#
main58833-52140-09i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),FROMAGE/SHELL,TRIM0#
main58833-52140-09i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,FROMAGE/SHELL,TRIM0#
main58833-52140-22i202312
BLACK/RED,TRIM20
main58833-52140-22i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RED,TRIM20
main58833-52140-22i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK/RED,TRIM20
main58833-52140-22i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,BLACK/RED,TRIM20
main58833-52140-24i202312
BLACK/LT.GRAY,TRIM20
main58833-52140-24i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/LT.GRAY,TRIM20
main58833-52140-24i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK/LT.GRAY,TRIM20
main58833-52140-24i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,BLACK/LT.GRAY,TRIM20
main58833-52140-M4i202312
MAUVE/MEDIUM BROWN,TRIM41
main58833-52140-M4i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MAUVE/MEDIUM BROWN,TRIM41
main58833-52140-M4i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),MAUVE/MEDIUM BROWN,TRIM41
main58833-52140-M4i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,MAUVE/MEDIUM BROWN,TRIM41
main58833-52140-N4i202312
SADDLE TAN/BEIGE,TRIM40
main58833-52140-N4i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SADDLE TAN/BEIGE,TRIM40
main58833-52140-N4i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),SADDLE TAN/BEIGE,TRIM40
main58833-52140-N4i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,SADDLE TAN/BEIGE,TRIM40
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
main58834-52010-C2i202312
BLACK,TRIM2#
main58834-52020-09i202312
FROMAGE,TRIM0#
main58834-52020-09i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,FROMAGE,TRIM0#
main58834-52020-09i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),FROMAGE,TRIM0#
main58834-52020-09i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,FROMAGE,TRIM0#
main58834-52020-22i202312
BLACK/RED,TRIM20
main58834-52020-22i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RED,TRIM20
main58834-52020-22i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK/RED,TRIM20
main58834-52020-22i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,BLACK/RED,TRIM20
main58834-52020-24i202312
BLACK/LT.GRAY,TRIM20
main58834-52020-24i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/LT.GRAY,TRIM20
main58834-52020-24i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK/LT.GRAY,TRIM20
main58834-52020-24i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,BLACK/LT.GRAY,TRIM20
main58834-52020-M4i202312
MAUVE,TRIM41
main58834-52020-M4i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MAUVE,TRIM41
main58834-52020-M4i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),MAUVE,TRIM41
main58834-52020-M4i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,MAUVE,TRIM41
main58834-52020-N4i202312
SADDLE TAN,TRIM40
main58834-52020-N4i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SADDLE TAN,TRIM40
main58834-52020-N4i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),SADDLE TAN,TRIM40
main58834-52020-N4i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,SADDLE TAN,TRIM40
main58834-52040-C2i202312
BLACK,TRIM2#
main58834-52050-09i202312
FROMAGE/SHELL,TRIM0#
main58834-52050-09i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,FROMAGE/SHELL,TRIM0#
main58834-52050-09i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),FROMAGE/SHELL,TRIM0#
main58834-52050-09i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,FROMAGE/SHELL,TRIM0#
main58834-52050-22i202312
BLACK/RED,TRIM20
main58834-52050-22i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/RED,TRIM20
main58834-52050-22i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK/RED,TRIM20
main58834-52050-22i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,BLACK/RED,TRIM20
main58834-52050-24i202312
BLACK/LT.GRAY,TRIM20
main58834-52050-24i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/LT.GRAY,TRIM20
main58834-52050-24i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),BLACK/LT.GRAY,TRIM20
main58834-52050-24i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,BLACK/LT.GRAY,TRIM20
main58834-52050-M4i202312
MAUVE/MEDIUM BROWN,TRIM41
main58834-52050-M4i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,MAUVE/MEDIUM BROWN,TRIM41
main58834-52050-M4i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),MAUVE/MEDIUM BROWN,TRIM41
main58834-52050-M4i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,MAUVE/MEDIUM BROWN,TRIM41
main58834-52050-N4i202312
SADDLE TAN/BEIGE,TRIM40
main58834-52050-N4i202312
"ELEGANT"&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SADDLE TAN/BEIGE,TRIM40
main58834-52050-N4i202312
"ACTIVE"&SEAT COVER MATERIAL-SYNTHETIC LEATHER(PERFORATION),SADDLE TAN/BEIGE,TRIM40
main58834-52050-N4i202312
"RELAX"&SEAT COVER MATERIAL-SEMI-ANILINE,SADDLE TAN/BEIGE,TRIM40
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-52081-C0i202312
BLACK,TRIM0#,2#,3#,4#,W/O(USB PORT)
main58901-52111-C0i202312
BLACK,TRIM0#,2#,3#,4#,W/O(USB PORT)
58991GCLIP
main90467-07049-23i202312
BLACK
sub90467-07049
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
main58993-52050i202312
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
main58994-52010i202312
main58994-52020i202312
7403
9011908D23
main90119-08D23
9015950311
main90159-50311
9018305094
main90183-05094
9046705171
main90467-05171
9046705172
main90467-05172
9167380616
main91673-80616

19 parts on this diagram · 3 diagrams in section
