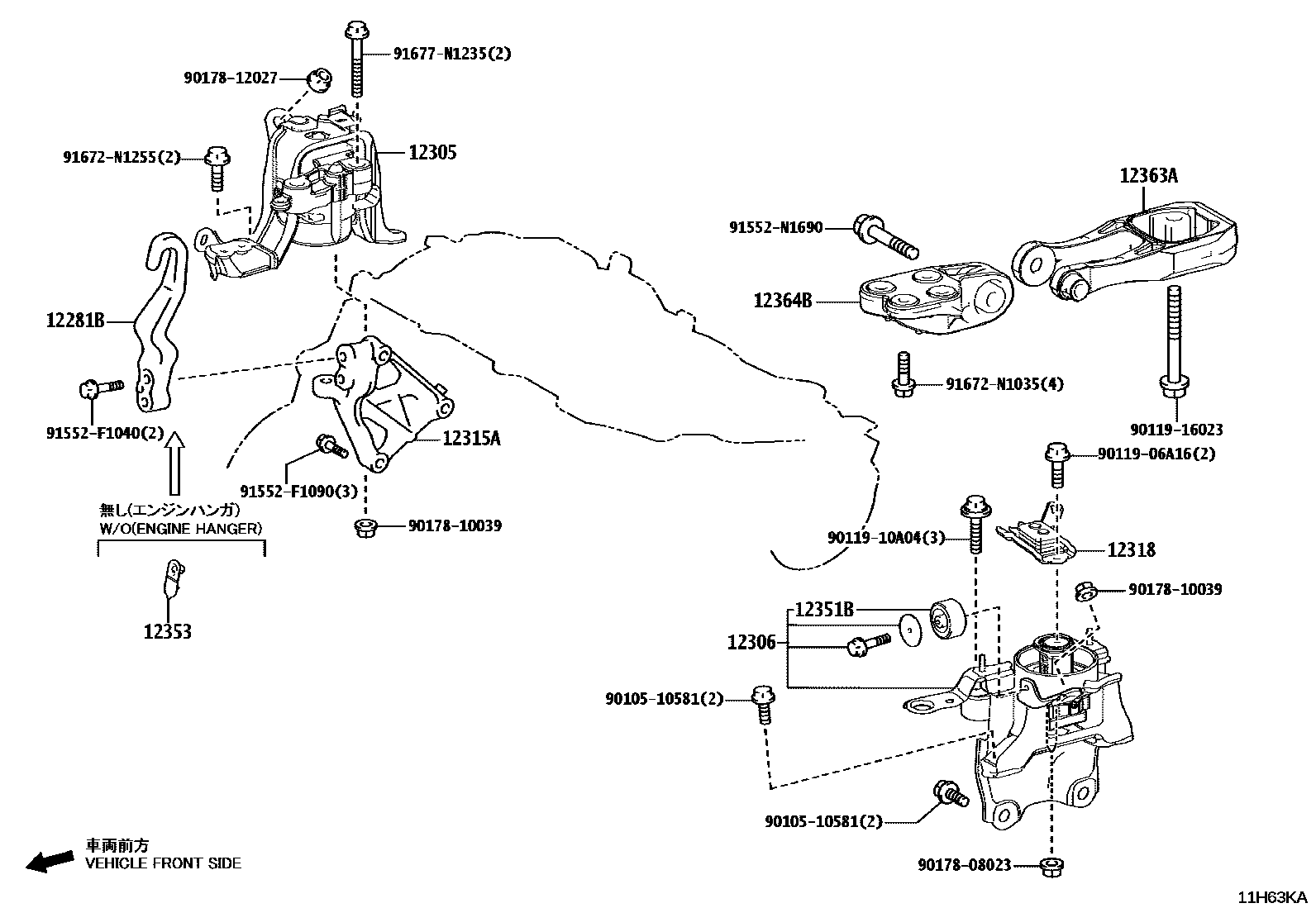

MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iM15AFXE..MAYH1#202312

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-15130iM15AFXE..MAYH1#202312

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12372-15310iM15AFXE..MAYH1#202312

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15100iM15AFXE..MAYH1#202312

12318STAY, ENGINE MOUNTING, LH

main12318-15090iM15AFXE..MAYH1#202312

12351BDAMPER, ENGINE MOUNTING

main12351-15120iM15AFXE..MAYH1#202312

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iM15AFXE..MAYH1#202312

12363AROD, ENGINE MOVING CONTROL

main12363-15080iM15AFXE..MAYH1#202312

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-15080iM15AFXE..MAYH1#202312

9010510581

main90105-10581

9011906A16

main90119-06A16

9011910A04

main90119-10A04

9011916023

main90119-16023

9017808023

main90178-08023

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91552N1690

main91552-N1690

91672N1035

main91672-N1035

91672N1255

main91672-N1255

91677N1235

main91677-N1235

22 parts on this diagram · 1 diagram in section
