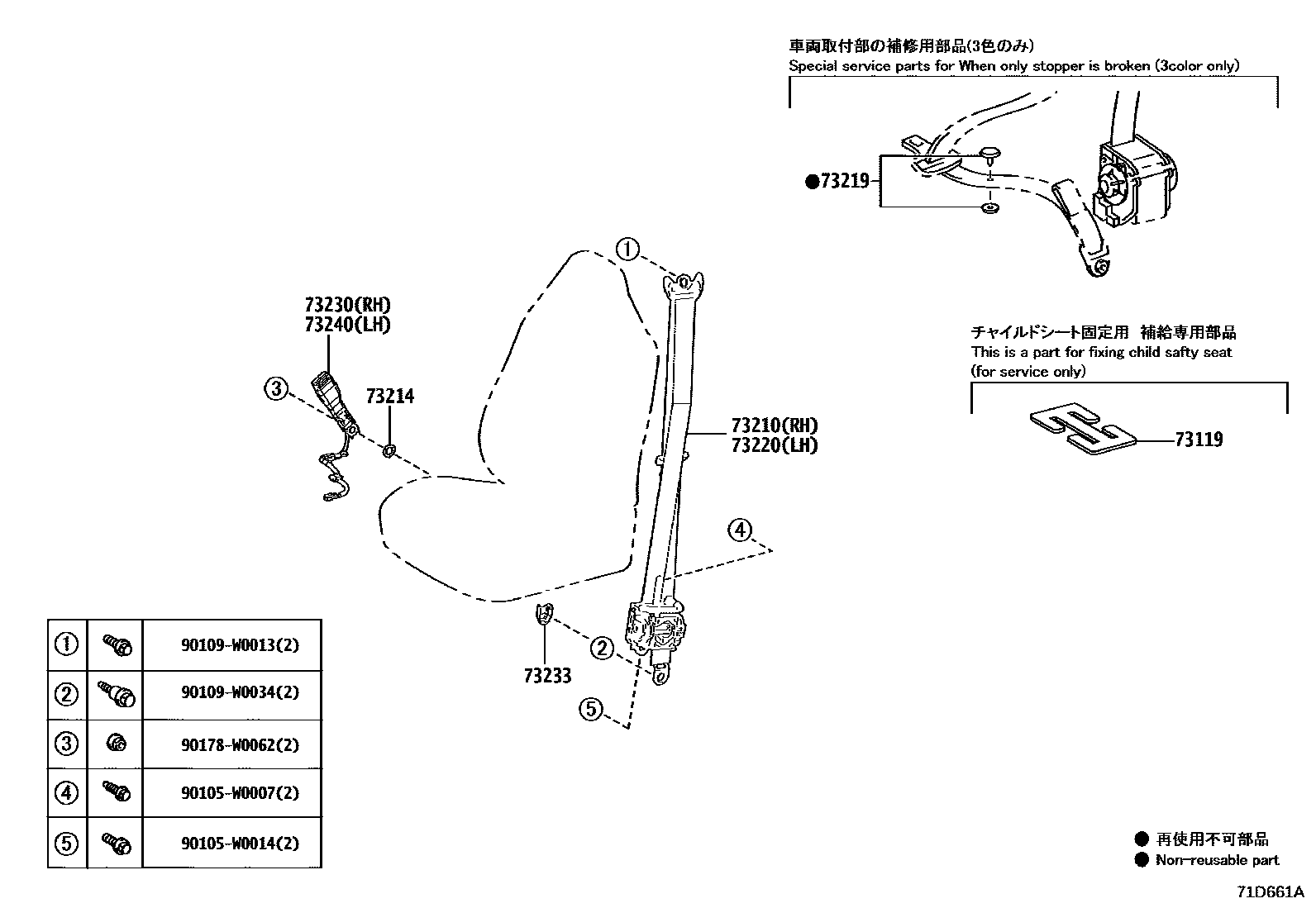

SEAT BELT & CHILD RESTRAINT SEAT

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010i202107-202206

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-K0010-C0i202107-202206

BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM2#

main73210-K0011-C0i202209-202404

BLACK,TRIM1#,2#; BLACK,TRIM1#,6#,8#; BLACK,TRIM2#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2i202404

73219STOPPER, TONGUE PLATE

main73219-33010i202404

BLACK

main73219-33020i202107-202404

GRAY

main73219-33030i202404

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-K0010-C0i202107-202208

BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM1#,2#,8#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main73220-K0011-C0i202209

BLACK,TRIM1#,2#; BLACK,TRIM1#,6#,8#; BLACK,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-K0010-C0i202404-202504

BLACK,TRIM2#,4#

main73230-K0040-C0i202107-202404

BLACK,TRIM2#

main73230-K0090-C0i202404

BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM2#; BLACK,TRIM2#,4#; SEAT HEATER-WITH,BLACK,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2i202107-202206

BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-K0010-C0i202107-202404

BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM2#; BLACK,TRIM2#,4#

main73230-K0040-C0i202107-202206

BLACK,TRIM2#

main73230-K0090-C0i202107-202404

BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM2#,4#

90105W0007

main90105-W0007

90105W0014

main90105-W0014

90109W0013

main90109-W0013

90109W0034

main90109-W0034

90178W0062

main90178-W0062

13 parts on this diagram · 2 diagrams in section
