INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

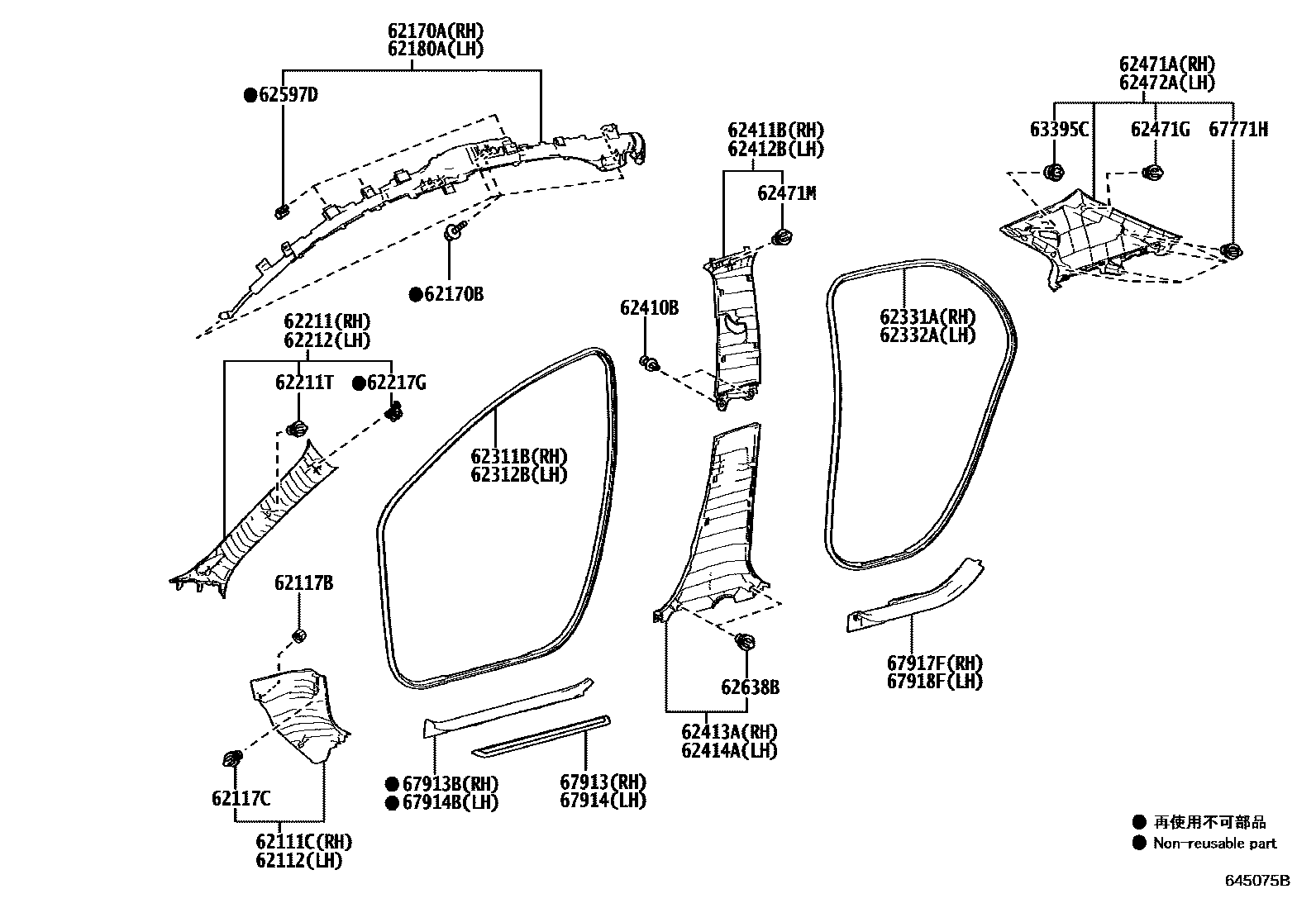

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-K0020-C1i202107-202404
BLACK,TRIM2#
main62111-K0020-C1i202107-202504
BLACK,TRIM2#,4#
main62111-K0020-C1i202107-202404
BLACK,TRIM1#,2#,6#,8#
main62111-K0030-C1i202404
BLACK,TRIM1#,2#
main62111-K0030-C1i202210-202404
BLACK,TRIM2#
main62111-K0030-C1i202107-202504
BLACK,TRIM1#,2#,6#,8#
main62111-K0030-C1i202107-202504
BLACK,TRIM2#,4#
main62111-K0030-C1i202107-202404
BLACK,TRIM1#,2#,8#
main62111-K0030-C1i202107
BLACK,TRIM4#
62112BOARD, COWL SIDE TRIM, LH
main62112-K0030-C1i202107-202404
BLACK,TRIM1#,2#,6#,8#
main62112-K0030-C1i202107-202404
BLACK,TRIM2#
main62112-K0030-C1i202107-202504
BLACK,TRIM2#,4#
main62112-K0050-C1i202107-202404
BLACK,TRIM1#,2#,8#
main62112-K0050-C1i202107-202504
BLACK,TRIM1#,2#,6#,8#
main62112-K0050-C1i202107
BLACK,TRIM4#
main62112-K0050-C1i202107-202504
BLACK,TRIM2#,4#
main62112-K0050-C1i202404
BLACK,TRIM1#,2#
main62112-K0050-C1i202210-202404
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-06147i202107-202504
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-10161i202107-202504
(J)
main90467-W0005i202107-202504
(L)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-0D040i202107-202207
sub62170-0D041
main62170-0D041i202208-202504
62170BBOLT, W/WASHER
main90119-W0037i202107-202504
(L)
main91673-80616i202107-202504
(J)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-0D060i202107-202207
sub62180-0D061
main62180-0D061i202208-202504
62211GARNISH, FRONT PILLAR, RH
main62211-0DB20-B0i202107-202404
LT.GRAY,TRIM1#,20,8#
main62211-0DB20-B0i202107-202404
LT.GRAY,TRIM10,80
main62211-0DB20-B0i202107-202206
LT.GRAY,TRIM10,8#
main62211-0DB20-B0i202107-202206
LT.GRAY,TRIM2#
main62211-0DB20-C0i202107-202404
BLACK,TRIM10,2#,6#,80
main62211-0DB20-C0i202107-202206
BLACK,TRIM10,2#,6#
main62211-0DB20-C0i202107-202404
BLACK,TRIM20
main62211-0DB21-B0i202404-202504
LT.GRAY,TRIM2#
main62211-0DB30-B0i202107-202404
SPEAKER-6SPEAKER,LT.GRAY,TRIM10,80
main62211-0DB30-B0i202107-202404
LT.GRAY,TRIM4#
main62211-0DB30-B0i202107-202206
SPEAKER-6SPEAKER,LT.GRAY,TRIM10,8#
main62211-0DB30-C0i202107-202404
SPEAKER-6SPEAKER,BLACK,TRIM10,2#,6#,80
main62211-0DB30-C0i202107-202404
BLACK,TRIM2#
main62211-0DB30-C0i202107-202206
SPEAKER-6SPEAKER,BLACK,TRIM10,2#,6#
main62211-0DB31-B0i202404-202504
SPEAKER-6SPEAKER,LT.GRAY,TRIM20
main62211-0DB31-B0i202404-202504
LT.GRAY,TRIM4#
main62211-0DB31-C0i202404-202504
BLACK,TRIM2#
main62211-0DB31-C0i202404-202504
SPEAKER-6SPEAKER,BLACK,TRIM20
main62211-0DB40-B0i202107-202207
SPEAKER-8SPEAKER,LT.GRAY,TRIM10,8#
main62211-0DB40-B0i202107-202404
SPEAKER-8SPEAKER,LT.GRAY,TRIM10,80
main62211-0DB40-B0i202107-202404
SPEAKER-8SPEAKER,LT.GRAY,TRIM4#
main62211-0DB40-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#
main62211-0DB40-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM10,2#,6#,80
main62211-0DB40-C0i202107-202207
SPEAKER-8SPEAKER,BLACK,TRIM10,2#,6#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-W0005i202107-202504
62212GARNISH, FRONT PILLAR, LH
main62212-0DB20-B0i202107-202206
LT.GRAY,TRIM10,8#
main62212-0DB20-B0i202107-202404
LT.GRAY,TRIM1#,20,8#
main62212-0DB20-B0i202107-202404
LT.GRAY,TRIM10,80
main62212-0DB20-B0i202107-202206
LT.GRAY,TRIM2#
main62212-0DB20-C0i202107-202404
BLACK,TRIM10,2#,6#,80
main62212-0DB20-C0i202107-202206
BLACK,TRIM10,2#,6#
main62212-0DB20-C0i202107-202404
BLACK,TRIM20
main62212-0DB21-B0i202404-202504
LT.GRAY,TRIM2#
main62212-0DB30-B0i202107-202404
LT.GRAY,TRIM4#
main62212-0DB30-B0i202107-202206
SPEAKER-6SPEAKER,LT.GRAY,TRIM10,8#
main62212-0DB30-B0i202107-202404
SPEAKER-6SPEAKER,LT.GRAY,TRIM10,80
main62212-0DB30-C0i202107-202404
SPEAKER-6SPEAKER,BLACK,TRIM10,2#,6#,80
main62212-0DB30-C0i202107-202404
BLACK,TRIM2#
main62212-0DB30-C0i202107-202206
SPEAKER-6SPEAKER,BLACK,TRIM10,2#,6#
main62212-0DB31-B0i202404-202504
SPEAKER-6SPEAKER,LT.GRAY,TRIM20
main62212-0DB31-B0i202404-202504
LT.GRAY,TRIM4#
main62212-0DB31-C0i202404-202504
SPEAKER-6SPEAKER,BLACK,TRIM20
main62212-0DB31-C0i202404-202504
BLACK,TRIM2#
main62212-0DB40-B0i202107-202404
SPEAKER-8SPEAKER,LT.GRAY,TRIM4#
main62212-0DB40-B0i202107-202404
SPEAKER-8SPEAKER,LT.GRAY,TRIM10,80
main62212-0DB40-B0i202107-202207
SPEAKER-8SPEAKER,LT.GRAY,TRIM10,8#
main62212-0DB40-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#
main62212-0DB40-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM10,2#,6#,80
main62212-0DB40-C0i202107-202207
SPEAKER-8SPEAKER,BLACK,TRIM10,2#,6#
62217GCLIP, FRONT PILLAR GARNISH
main62217-42050i202107-202504
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-K2010i202107-202504
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-K2010i202107-202504
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-K2010i202107-202504
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-K2010i202107-202504
62410BCLIP
main90467-10216i202107-202504
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-0D340-B0i202404-202504
LT.GRAY,TRIM10,20
main62411-0D340-B0i202107-202206
LT.GRAY,TRIM2#
main62411-0D340-B0i202107-202206
LT.GRAY,TRIM10,8#
main62411-0D340-B0i202107-202404
LT.GRAY,TRIM1#,20,8#
main62411-0D340-B0i202107-202404
LT.GRAY,TRIM10,80
main62411-0D340-B0i202107-202504
LT.GRAY,TRIM4#
main62411-0D340-B0i202404
LT.GRAY,TRIM1#,2#
main62411-0D340-C0i202107-202404
BLACK,TRIM10,2#,6#,80
main62411-0D340-C0i202107-202206
BLACK,TRIM10,2#,6#
main62411-0D340-C0i202404-202504
BLACK,TRIM10,20,6#,8#
main62411-0D340-C0i202107-202504
BLACK,TRIM2#
main62411-0D340-C0i202107-202404
BLACK,TRIM20
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-0D340-B0i202107-202206
LT.GRAY,TRIM2#
main62412-0D340-B0i202107-202206
LT.GRAY,TRIM10,8#
main62412-0D340-B0i202107-202504
LT.GRAY,TRIM4#
main62412-0D340-B0i202107-202404
LT.GRAY,TRIM10,80
main62412-0D340-B0i202107-202404
LT.GRAY,TRIM1#,20,8#
main62412-0D340-B0i202404-202504
LT.GRAY,TRIM10,20
main62412-0D340-B0i202404
LT.GRAY,TRIM1#,2#
main62412-0D340-C0i202107-202206
BLACK,TRIM10,2#,6#
main62412-0D340-C0i202107-202404
BLACK,TRIM20
main62412-0D340-C0i202107-202404
BLACK,TRIM10,2#,6#,80
main62412-0D340-C0i202107-202504
BLACK,TRIM2#
main62412-0D340-C0i202404-202504
BLACK,TRIM10,20,6#,8#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-K0020-C1i202107-202504
BLACK,TRIM1#,2#,6#,8#
main62413-K0020-C1i202107-202404
BLACK,TRIM2#
main62413-K0020-C1i202107-202404
BLACK,TRIM1#,2#,8#
main62413-K0020-C1i202107-202504
BLACK,TRIM2#,4#
main62413-K0020-C1i202107
BLACK,TRIM4#
main62413-K0020-C1i202404
BLACK,TRIM1#,2#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-K0020-C1i202107-202404
BLACK,TRIM2#
main62414-K0020-C1i202107-202504
BLACK,TRIM1#,2#,6#,8#
main62414-K0020-C1i202107-202404
BLACK,TRIM1#,2#,8#
main62414-K0020-C1i202107-202504
BLACK,TRIM2#,4#
main62414-K0020-C1i202107
BLACK,TRIM4#
main62414-K0020-C1i202404
BLACK,TRIM1#,2#
62471AGARNISH, ROOF SIDE, INNER RH
main62471-0DC60-B0i202107-202404
LT.GRAY,TRIM1#,20,8#
main62471-0DC60-B0i202107-202206
LT.GRAY,TRIM2#
main62471-0DC60-B0i202107-202206
LT.GRAY,TRIM10,8#
main62471-0DC60-B0i202107-202404
LT.GRAY,TRIM10,80
main62471-0DC60-B0i202107-202504
LT.GRAY,TRIM4#
main62471-0DC60-B0i202404-202504
LT.GRAY,TRIM10,20
main62471-0DC60-B0i202404
LT.GRAY,TRIM1#,2#
main62471-0DC60-C0i202107-202404
BLACK,TRIM20
main62471-0DC60-C0i202107-202404
BLACK,TRIM10,2#,6#,80
main62471-0DC60-C0i202107-202504
BLACK,TRIM2#
main62471-0DC60-C0i202404-202504
BLACK,TRIM10,20,6#,8#
main62471-0DC60-C0i202107-202206
BLACK,TRIM10,2#,6#
62471GCLIP, ROOF SIDE INNER GARNISH
main90467-10167i202107-202504
62471MCLIP
main90467-10167i202107-202504
62472AGARNISH, ROOF SIDE, INNER LH
main62472-0DC80-B0i202107-202504
LT.GRAY,TRIM4#
main62472-0DC80-B0i202107-202206
LT.GRAY,TRIM10,8#
main62472-0DC80-B0i202107-202206
LT.GRAY,TRIM2#
main62472-0DC80-B0i202107-202404
LT.GRAY,TRIM1#,20,8#
main62472-0DC80-B0i202107-202404
LT.GRAY,TRIM10,80
main62472-0DC80-B0i202404-202504
LT.GRAY,TRIM10,20
main62472-0DC80-B0i202404
LT.GRAY,TRIM1#,2#
main62472-0DC80-C0i202404-202504
BLACK,TRIM10,20,6#,8#
main62472-0DC80-C0i202107-202504
BLACK,TRIM2#
main62472-0DC80-C0i202107-202404
BLACK,TRIM20
main62472-0DC80-C0i202107-202404
BLACK,TRIM10,2#,6#,80
main62472-0DC80-C0i202107-202206
BLACK,TRIM10,2#,6#
62597DCLIP
main90467-18017i202107-202504
62638BCLIP
main90467-W0005i202107-202504
63395CCLIP(FOR ROOF SIDE INNER GARNISH)
main63395-12150i202107-202504
67771HRETAINER, DOOR TRIM
main67771-28150i202107-202504
67913PLATE, FRONT DOOR SCUFF, RH
main67913-YY560i202107-202206
DOOR SCUFF PLATE-WITH(INNER PANEL ONLY(MODEL NAME))
main67913-YY570i202404-202505
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-K0020-C1i202107-202504
BLACK,TRIM1#,2#,6#,8#
main67913-K0020-C1i202107-202404
BLACK,TRIM2#
main67913-K0020-C1i202107-202504
BLACK,TRIM2#,4#
main67913-K0020-C1i202107
BLACK,TRIM4#
main67913-K0020-C1i202107
BLACK,TRIM1#,2#,8#
main67913-K0020-C1i202404
BLACK,TRIM1#,2#
67914PLATE, FRONT DOOR SCUFF, LH
main67913-YY570i202404-202505
main67914-YY280i202107-202206
DOOR SCUFF PLATE-WITH(INNER PANEL ONLY(MODEL NAME))
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-K0020-C1i202107-202504
BLACK,TRIM1#,2#,6#,8#
main67914-K0020-C1i202107-202504
BLACK,TRIM2#,4#
main67914-K0020-C1i202404
BLACK,TRIM1#,2#
main67914-K0020-C1i202107-202404
BLACK,TRIM2#
main67914-K0020-C1i202107
BLACK,TRIM4#
main67914-K0020-C1i202107
BLACK,TRIM1#,2#,8#
67917FPLATE, REAR DOOR SCUFF, INSIDE RH
main67917-K0030-C1i202107
BLACK,TRIM1#,2#,8#
main67917-K0030-C1i202107
BLACK,TRIM4#
main67917-K0030-C1i202107-202206
BLACK,TRIM1#,2#,6#,8#
main67917-K0030-C1i202107-202206
BLACK,TRIM2#
main67917-K0040-C1i202210-202404
BLACK,TRIM2#
main67917-K0040-C1i202107-202404
BLACK,TRIM1#,2#,8#
main67917-K0040-C1i202107-202504
BLACK,TRIM1#,2#,6#,8#
main67917-K0040-C1i202107-202504
BLACK,TRIM2#,4#
main67917-K0040-C1i202404
BLACK,TRIM1#,2#
67918FPLATE, REAR DOOR SCUFF, INSIDE LH
main67918-K0030-C1i202107-202206
BLACK,TRIM1#,2#,6#,8#
main67918-K0030-C1i202107-202206
BLACK,TRIM2#
main67918-K0030-C1i202107
BLACK,TRIM1#,2#,8#
main67918-K0030-C1i202107
BLACK,TRIM4#
main67918-K0040-C1i202107-202504
BLACK,TRIM2#,4#
main67918-K0040-C1i202107-202504
BLACK,TRIM1#,2#,6#,8#
main67918-K0040-C1i202404
BLACK,TRIM1#,2#
main67918-K0040-C1i202210-202404
BLACK,TRIM2#
main67918-K0040-C1i202107-202404
BLACK,TRIM1#,2#,8#

34 parts on this diagram · 1 diagram in section
