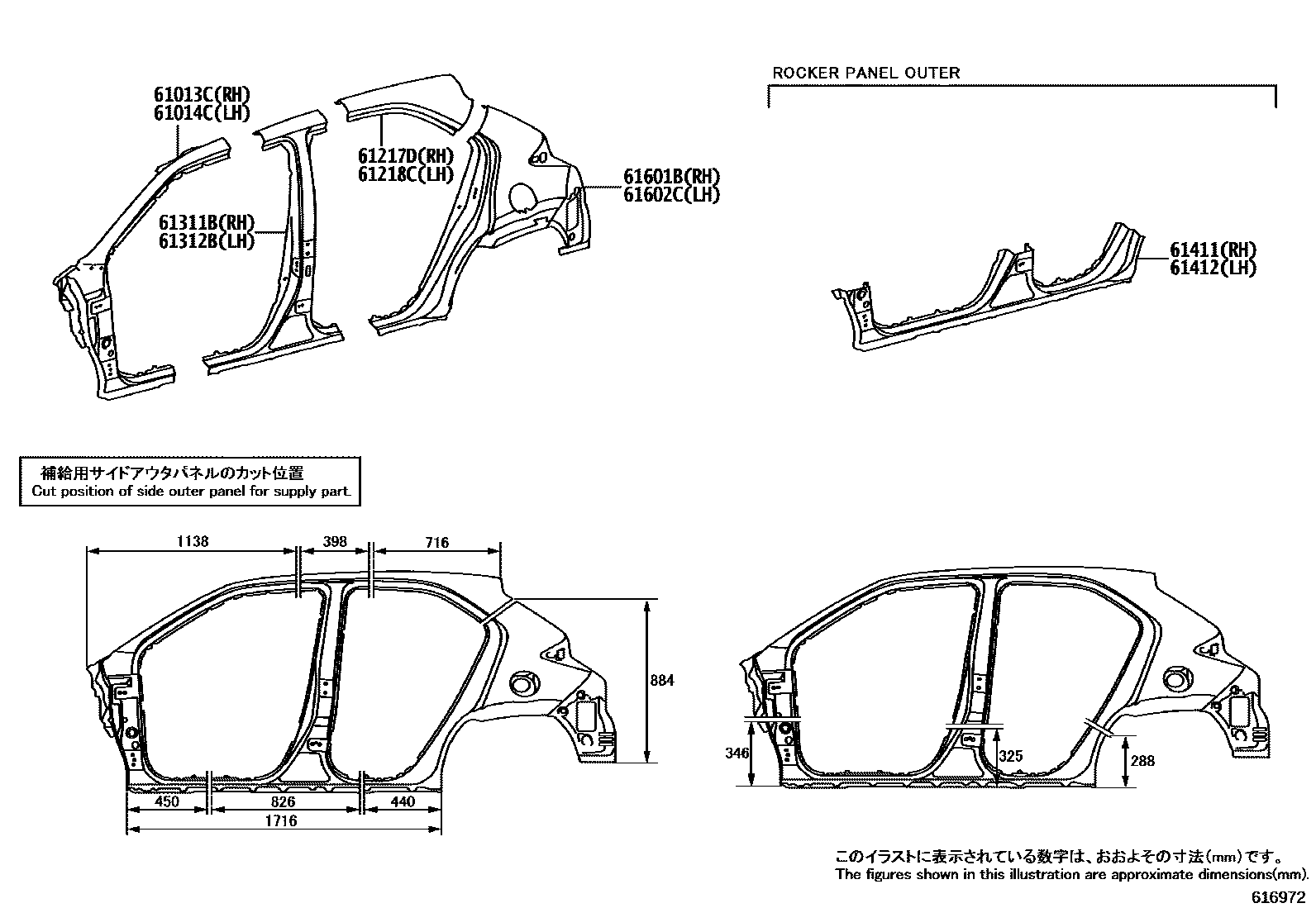

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-0D020iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F; MXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F..(G,N)202107

ROOF RAIL-WITH&MOON ROOF-PANORAMIC ROOF

main61013-0D030iMXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404

MOON ROOF-PANORAMIC ROOF

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-0D020iMXPB10..RHD..6F; MXPB10..RHD..6F..N202107-202206

ROOF RAIL-WITH&MOON ROOF-PANORAMIC ROOF

main61014-0D030iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F..(G,N)202107

MOON ROOF-PANORAMIC ROOF

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-0D020iMXPB10..RHD..6F202107-202206

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-0D020iMXPB10..RHD..6F202107-202206

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0D170iMXPB10..RHD..6F; MXPB10..RHD..6F..N202107-202206

ROOF RAIL-WITH&MOON ROOF-PANORAMIC ROOF

main61311-0D180iMXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404

MOON ROOF-PANORAMIC ROOF

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0D170iMXPB10..RHD..6F; MXPB10..RHD..6F..N202107-202206

ROOF RAIL-WITH&MOON ROOF-PANORAMIC ROOF

main61312-0D180iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F..(G,N)202107

MOON ROOF-PANORAMIC ROOF

61411PANEL, ROCKER, OUTER RH

main61411-0D190iMXPB10..RHD..6F202107-202206

61412PANEL, ROCKER, OUTER LH

main61412-0D190iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-0D370iMXPB10..RHD..6F202107-202206

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-0D520iMXPB10..RHD..6F202107-202206

10 parts on this diagram · 3 diagrams in section
