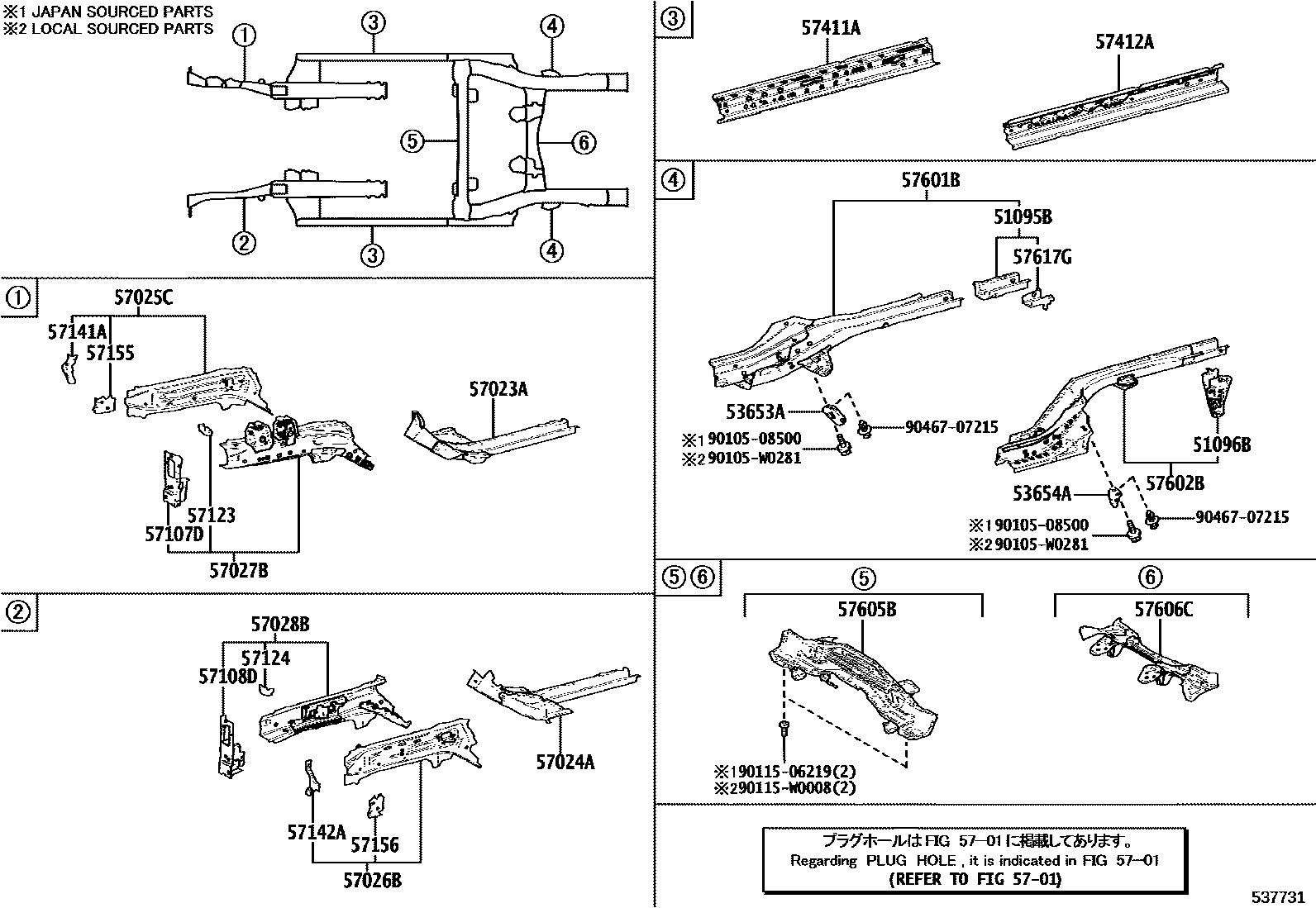

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0D040iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202401

main51095-K2010iMXPB10..LHD..6F;MXPB10,MXPJ1#..CVT202107-202312

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-K0010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

53653ABRACE, REAR SUSPENSION, LOWER RH

main53653-K0010iMXPB10..RHD..6F202107-202206

53654ABRACE, REAR SUSPENSION, LOWER LH

main53654-K0010iMXPB10..CVT;MXPB10..LHD..6F202107

5701HOLE PLUG

→ Go to FIG 57-01

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0D230iMXPB10..RHD..6F202107-202206

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0D210iMXPB10..RHD..6F202107-202206

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-K0010iMXPB10..RHD..6F202107-202206

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-K0010iMXPB10..RHD..6F202107-202206

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-K0010iMXPB10..RHD..6F202107-202206

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-K0010iMXPB10..RHD..6F202107-202206

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-K0010iMXPB10..RHD..6F202107-202206

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-K0010iMXPB10..RHD..6F202107-202206

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-K0010iMXPB10..RHD..6F202107-202206

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-K0010iMXPJ15..G;MXPJ15..LHD..N202404-202504

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-K0010iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-K0010iMXPB10..RHD..6F202107-202206

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-K0010iMXPB10..RHD..6F202107-202206

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-K0010iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-K2010iMXPB10..RHD..6F202107-202206

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-K2010iMXPB10..RHD..6F202107-202206

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-0D480iMXPB10..RHD..6F202107-202206

main57601-0D490iMXPJ15..RHD..N202107

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-0D440iMXPJ10202107-202404

main57602-0D450iMXPJ16202404

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-K0010iMXPB10..RHD..6F202107-202206

main57605-K0030iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D170iMXPJ15..G;MXPJ15..LHD..N202107-202404

main57606-0D190iMXPJ10202107-202404

57617GRETAINER, REAR BUMPER ARM

main57617-K0010iMXPB10..RHD..6F202107-202206

9010508500

main90105-08500

90105W0281

main90105-W0281

9011506219

main90115-06219

90115W0008

main90115-W0008

9046707215

main90467-07215

31 parts on this diagram · 3 diagrams in section
