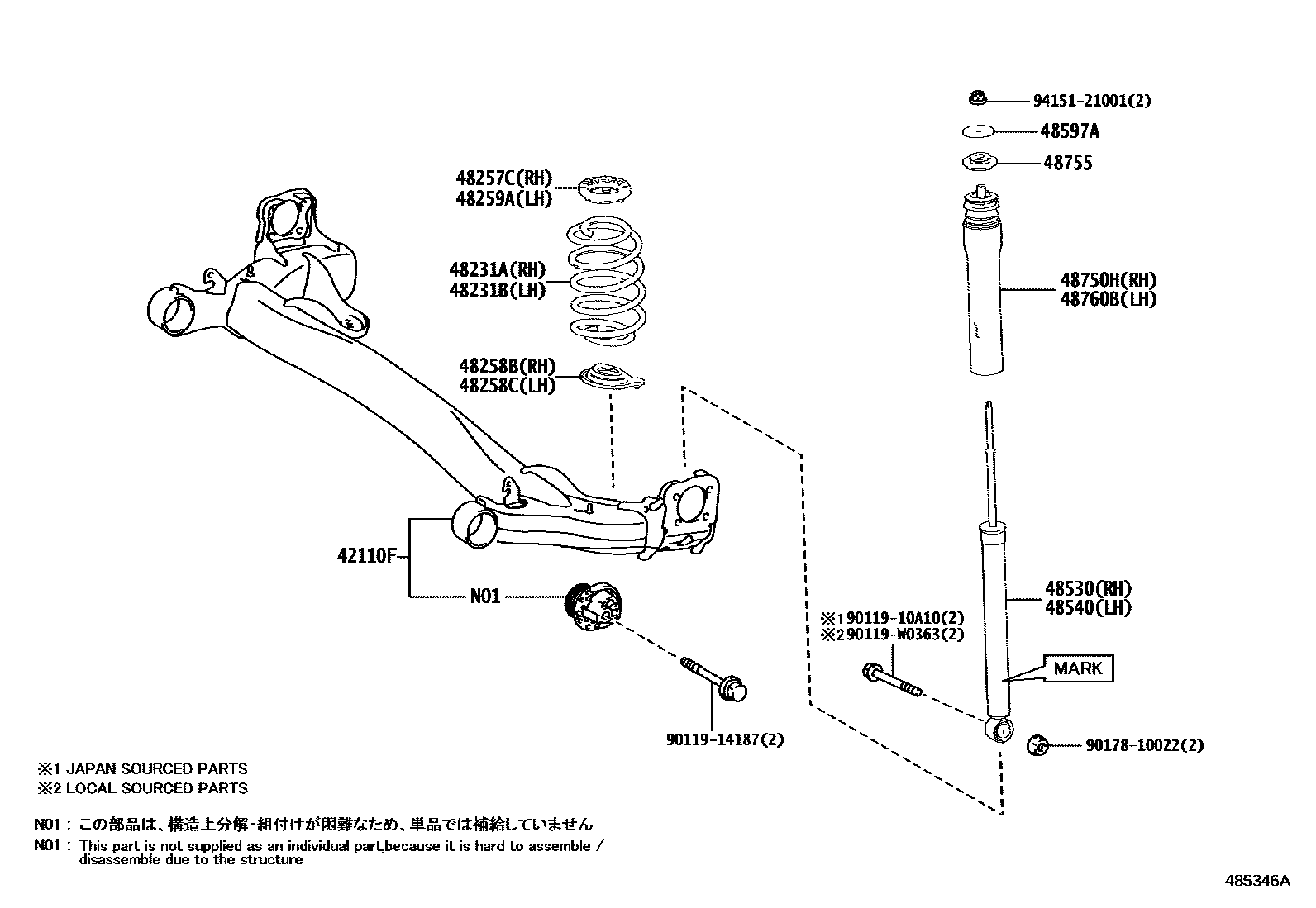

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

42110FBEAM ASSY, REAR AXLE

main42110-0D460iMXPB10..RHD..6F202107-202206

main42110-0D610iMXPJ10,11202408

48231ASPRING, COIL, REAR RH

main48231-0DB30iMXPB10..CVT;MXPB10..LHD..6F202107

main48231-0DB40iMXPJ10..G,N,R202107-202404

main48231-0DB70iMXPJ15..RHD..N202107

main48231-0DC20iMXPJ10,11..V202404

48231BSPRING, COIL, REAR LH

main48231-0DB30iMXPB10..CVT;MXPB10..LHD..6F202107

main48231-0DB40iMXPJ10..G,N,R202107-202404

main48231-0DB70iMXPJ16202404

main48231-0DC20iMXPJ10,11..V202404

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D010iMXPJ10202107-202404

main48257-K0020iMXPJ15..RHD..N202107

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-K0020iMXPJ15..G;MXPJ15..LHD..N202107-202404

main48258-K0030iMXPB10..RHD..6F202107-202206

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-K0020iMXPJ16202404

main48258-K0030iMXPB10..CVT;MXPB10..LHD..6F202107

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D010iMXPJ10,11202404

main48257-K0020iMXPJ15..RHD..N202107

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0DF80iMXPB10..CVT;MXPB10..LHD..6F202107

MARK 48530-0DF80

main48530-0DF90iMXPJ10..G,N,R202107-202404

MARK 48530-0DF90

main48530-0DG00iMXPJ15..G;MXPJ15..LHD..N202107-202404

MARK 48530-0DG00

main48530-0DJ60iMXPJ10..V202210-202404

MARK 48530-0DJ60

main48530-0DK20iMXPJ10,11..G,N,R202404

MARK 48530-0DK20

main48530-0DK30iMXPJ15..G;MXPJ15..LHD..N202404-202504

MARK 48530-0DK30

main48530-0DK40iMXPJ10,11..V202404

MARK 48530-0DK40

main48530-0DJ20iMXPB10..LHD202107

MARK 48530-0DJ20,EGYPT SPEC

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0DF80iMXPB10..RHD..6F202107-202206

MARK 48530-0DF80

main48530-0DF90iMXPJ10..G,N,R202107-202404

MARK 48530-0DF90

main48530-0DG00iMXPJ15..RHD..N202107

MARK 48530-0DG00

main48530-0DJ60iMXPJ10..V202210-202404

MARK 48530-0DJ60

main48530-0DK20iMXPJ10,11..G,N,R202404

MARK 48530-0DK20

main48530-0DK30iMXPJ15..G;MXPJ15..LHD..N202404-202504

MARK 48530-0DK30

main48530-0DK40iMXPJ10,11..V202404

MARK 48530-0DK40

main48530-0DJ20iMXPB10..LHD202107

MARK 48530-0DJ20,EGYPT SPEC

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10138×2iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-K0020iMXPJ15..G;MXPJ15..LHD..N202107-202404

main48750-K0030iMXPJ10,11202404

48755SUPPORT, REAR SUSPENSION

main48755-K0021×2iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-K0020iMXPJ15..G;MXPJ15..LHD..N202404-202504

main48750-K0030iMXPJ10202107-202404

9011910A10

main90119-10A10

9011914187

main90119-14187

90119W0363

main90119-W0363

9017810022

main90178-10022

9415121001

main94151-21001

18 parts on this diagram · 3 diagrams in section
