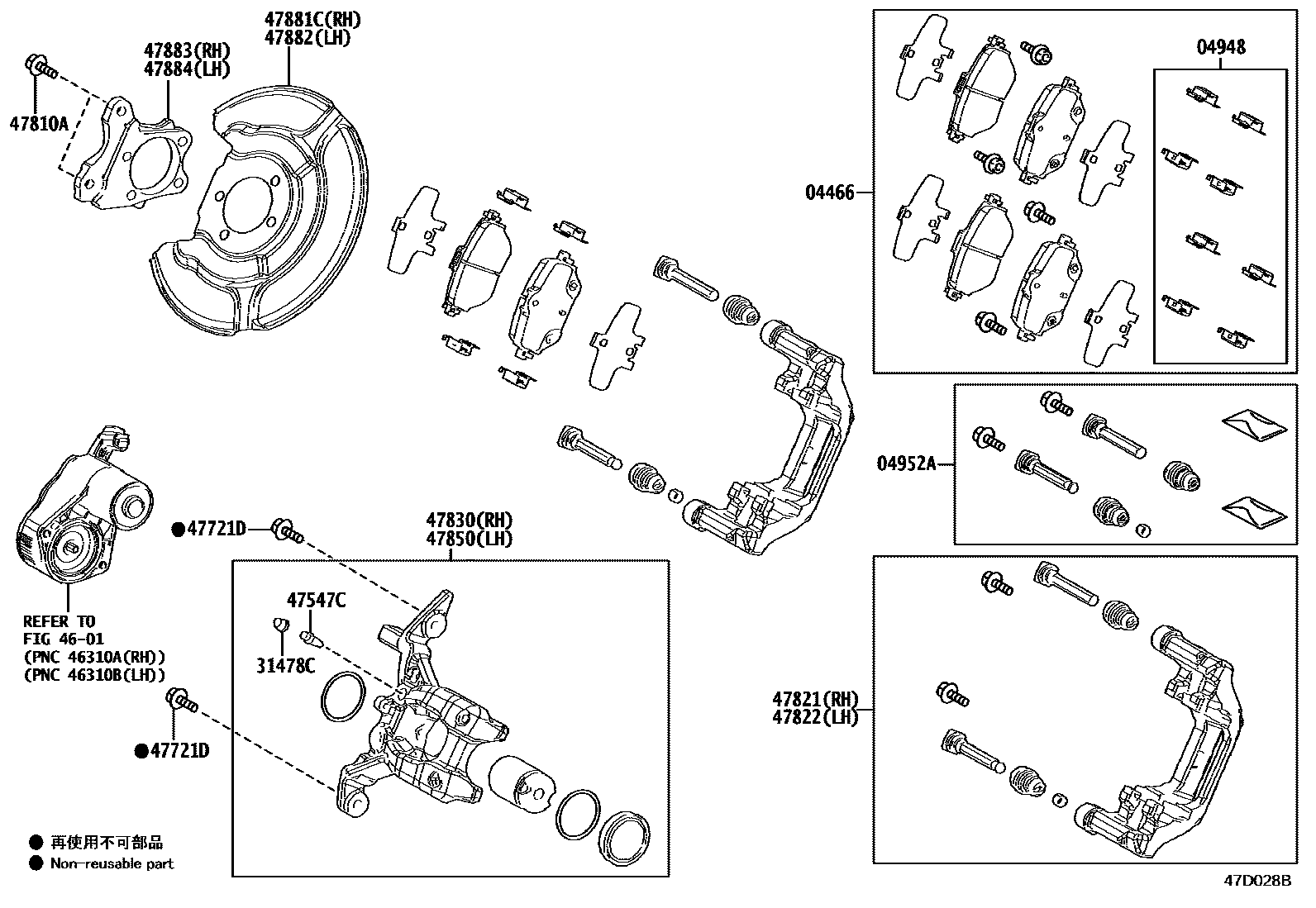

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-0D060iMXPJ10202107-202404

MARK NBK D6360

main04466-10011iMXPJ16202404

MARK AK NS554

04948FITTING KIT, DISC BRAKE, REAR

main04948-02160iMXPB10..RHD..6F202107-202206

main04948-58010iMXPJ15..G;MXPJ15..LHD..N202404-202504

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02221×2iMXPB10..CVT;MXPB10..LHD..6F202107

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMXPJ15..G;MXPJ15..LHD..N202107-202404

main90069-39026×2iMXPB10..CVT;MXPB10..LHD..6F202107

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-0D080×2iMXPB10..CVT;MXPB10..LHD..6F202107

main47547-20010×2iMXPJ15..RHD..N202107

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main47715-05060×4iMXPB10..RHD..6F202107-202206

main90015-AA603×4iMXPJ15..G;MXPJ15..LHD..N202107-202404

*8-1.00PX23-12.5

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iMXPB10..RHD..6F202107-202206

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09150iMXPB10..CVT;MXPB10..LHD..6F202107

main47821-10030iMXPJ16202404

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09150iMXPB10..RHD..6F202107-202206

main47822-10030iMXPJ15..RHD..N202107

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0D080iMXPB10..RHD..6F202107-202206

main47830-52260iMXPJ15..G;MXPJ15..LHD..N202404-202504

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0D080iMXPJ10202107-202404

main47850-52260iMXPJ15..RHD..N202107

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-0D080iMXPB10..CVT;MXPB10..LHD..6F202107

main47881-52080iMXPJ15..RHD..N202107

47882COVER, DISC BRAKE DUST, REAR LH

main47882-0D070iMXPB10..RHD..6F202107-202206

main47882-52080iMXPJ15..G;MXPJ15..LHD..N202107-202404

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-0D040iMXPB10..RHD..6F202107-202206

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-0D040iMXPB10..RHD..6F202107-202206

16 parts on this diagram · 2 diagrams in section
