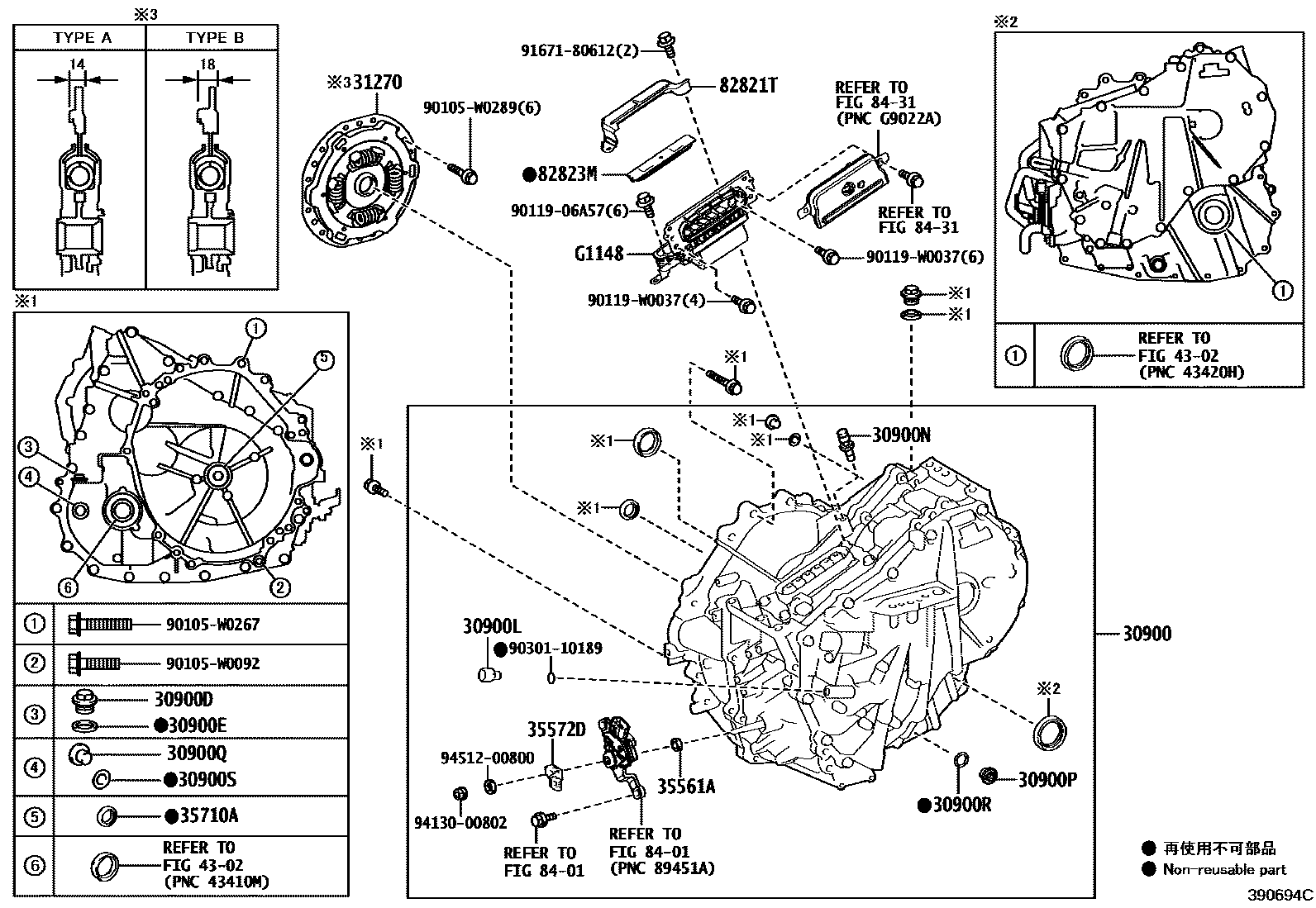

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1REAR TRACTION MOTOR 0004 1REAR TRACTION MOTOR MOUNTING

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-0D010iMXPJ15..G;MXPJ15..LHD..N202107-202504

(L)

main30900-52040iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

(J)

main30900-52090iMXPJ11,16202404

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMXPJ15..RHD..N202107-202504

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

30900LUNION(FOR TRANSAXLE HOUSING)

main90404-16031iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

30900PPLUG, DRAIN(HEV)

main90341-18016iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

30900QPLUG, FILLER(HEV)

main90341-18016iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

main90341-18090iMXPJ11,16202404

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-K0012iMXPJ1#202107-202110

TYPE A:REFER ILLUST.

main31270-K0013iMXPJ15..RHD..N202107-202404

TYPE B:REFER ILLUST.

main31270-K0013iMXPJ15..G;MXPJ15..LHD..N202404-202504

35561ASEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)

main90311-12016iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-52110iMXPJ11,16202404

main35572-K0010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

main90311-25035iMXPJ11,16202404

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

82821TCOVER, CONNECTOR

main82821-52350iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

82823MCAP, TERMINAL

main82823-28110iMXPJ11,16202404

main82823-47040iMXPJ15..RHD..N202107-202504

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8431HEV INVERTER

→ Go to FIG 84-31

G1148CABLE, MOTOR

mainG114852030iMXPJ11,16202404

mainG1148K0010iMXPJ10202107-202504

90105W0092

main90105-W0092

90105W0267

main90105-W0267

90105W0289

main90105-W0289

9011906A57

main90119-06A57

90119W0037

main90119-W0037

9030110189

main90301-10189

9167180612

main91671-80612

9413000802

main94130-00802

9451200800

main94512-00800

28 parts on this diagram · 4 diagrams in section
