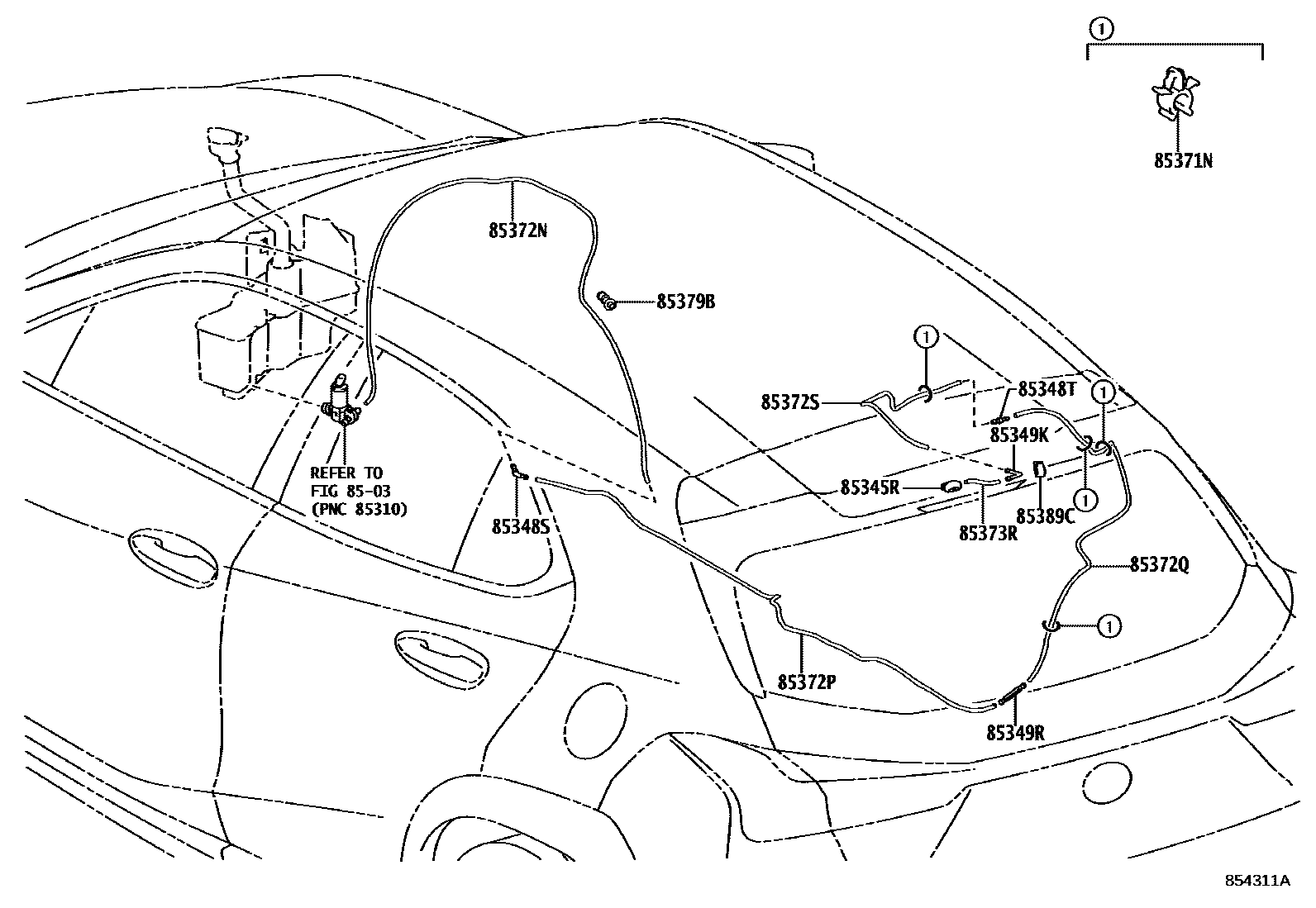

REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-76030iKMA10202004

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iKMA10202004

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iKMA10202004

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-12360iKMA10202004

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-32150iKMA10202004

85371NCLAMP, REAR WASHER HOSE

main90469-07011iKMA10202004

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62190iKMA10202004

L=1732

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33803iKMA10202004

L=1750

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iKMA10202004

L=1450(*H,L=1300)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iKMA10202004

L=1450(*H,L=560)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKMA10202004

L=1450(*H,L=135)

85379BGROMMET, WASHER, A

main85379-12850iKMA10202004

85389CPROTECTOR, WASHER

main85389-76030iKMA10202004

14 parts on this diagram · 1 diagram in section
