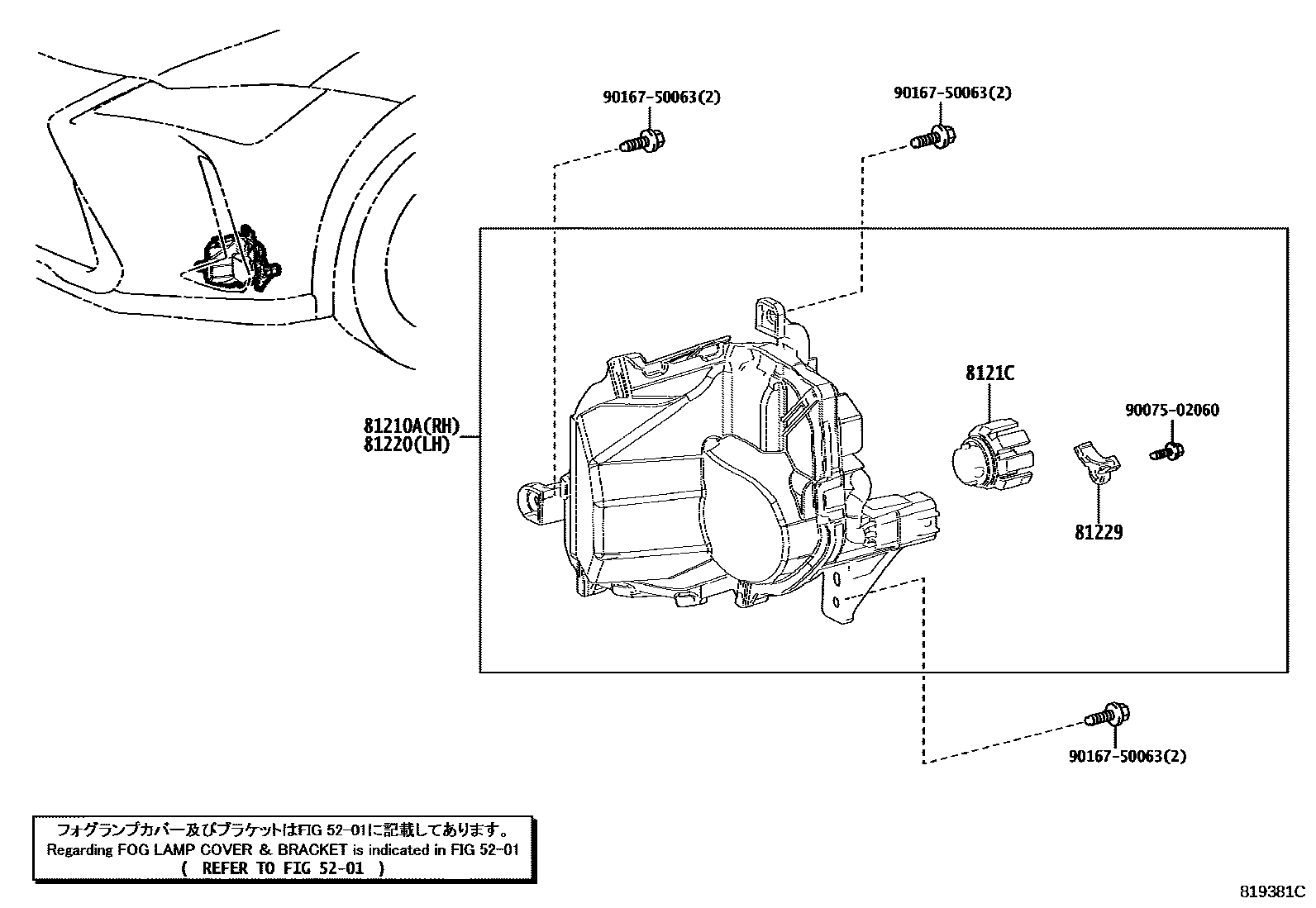

FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-76010iKMA10..RHD..GEN202011

main81210-76020iKMA10..ARL,EUR,GEN202008

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

8121CLED, FOG LAMP

main8121C-76020×2iKMA10..RHD..GEN202011

81220LAMP ASSY, FOG, LH

main81220-76010iKMA10..RHD..GEN202011

main81220-76020iKMA10..ARL,EUR,GEN202008

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

81229BRACKET, FOG LAMP

main81219-76020×2iKMA10..RHD..GEN202011

9007502060

main90075-02060

9016750063

main90167-50063

7 parts on this diagram · 1 diagram in section
