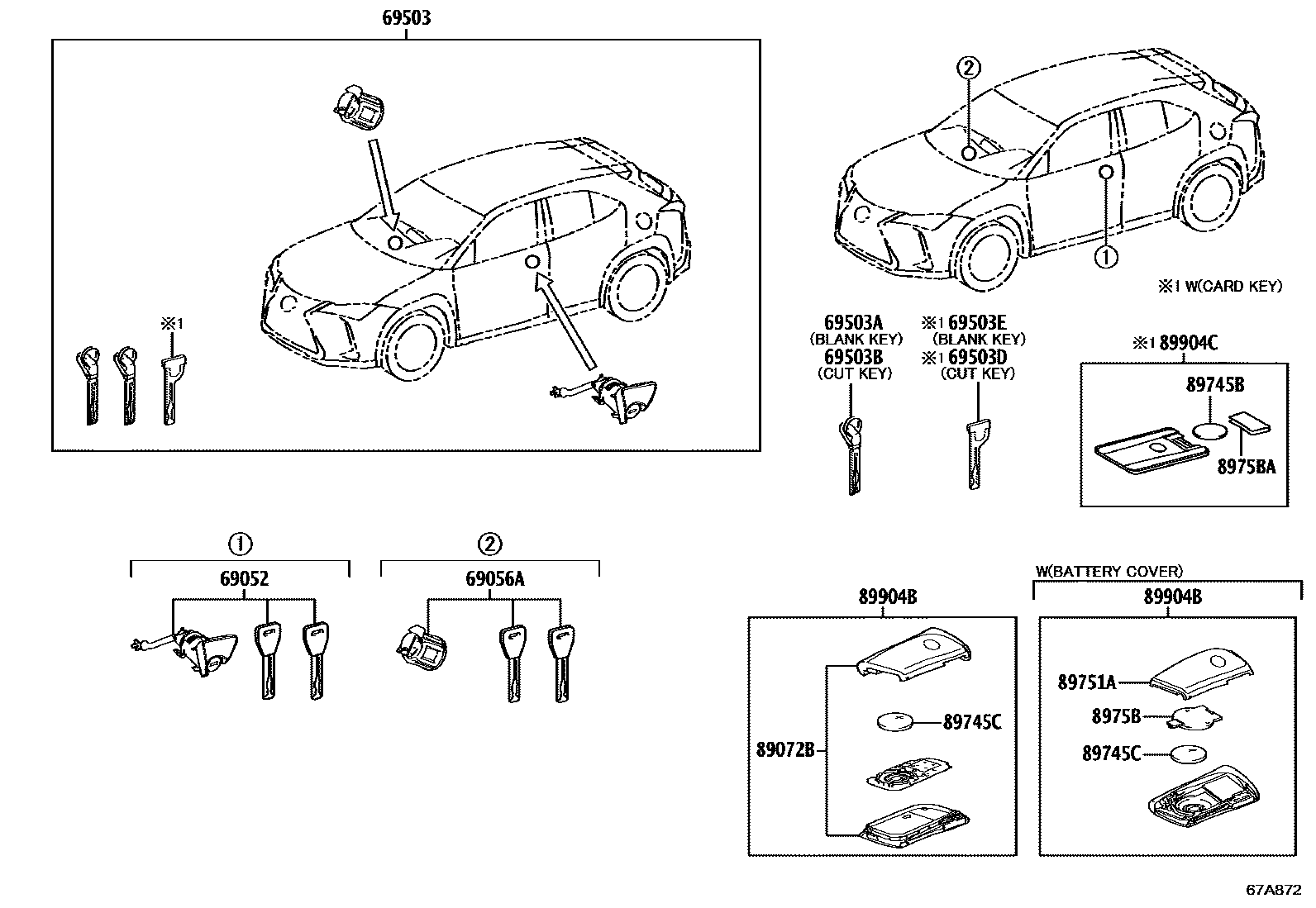

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-76030iKMA10..LHD..GEN202108

main69052-76040iKMA10..LHD..(CHI,EUR)202004

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iKMA10202004

69503CYLINDER SET, LOCK

main69005-76110iKMA10..RHD202011

main69005-76130iKMA10..LHD..GEN202108

main69005-76150iKMA10..LHD..(CHI,EUR)202004

69503AKEY, BLANK

main69515-33150iKMA10202004

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33140iKMA10202004

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

main69515-30350iKMA10202004

MASTER KEY

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-76220iKMA10..LHD..GEN202108

main89072-76300iKMA10..RHD..(ARL,GEN)202011

main89072-76510iKMA10..CHI202004

89745BBATTERY, TRANSMITTER(CARD KEY)

89745CBATTERY, TRANSMITTER

main89745-50020iKMA10202004

CR2032

89751ACOVER, TRANSMITTER HOUSING

main89751-33230iKMA10..EUR202008

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33040iKMA10..EUR202008

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-76510iKMA10..CHI202004

main8990H-76530iKMA10..EUR202008

main8990H-76750iKMA10..LHD..GEN202108

main8990H-76830iKMA10..RHD..(ARL,GEN)202011

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

15 parts on this diagram · 2 diagrams in section
