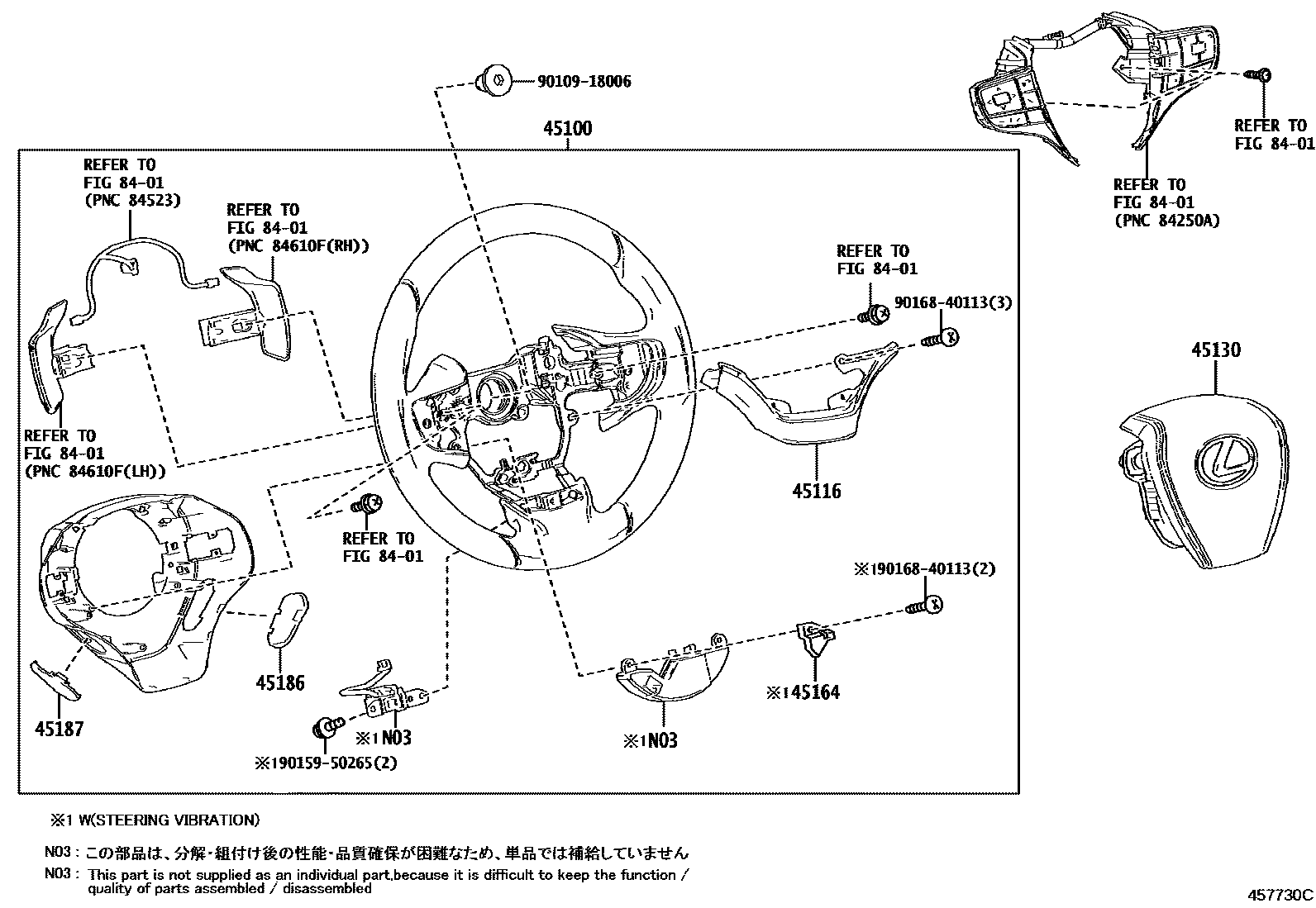

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK,TRIM1#,2#,8#
3-SPOKE,LEATHER,BLACK,TRIM4#
3-SPOKE,LEATHER,BLACK,TRIM0#,1#,2#,8#
3-SPOKE,LEATHER,SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM0#,1#,2#,8#
3-SPOKE,LEATHER,SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM4#
3-SPOKE,LEATHER,BLACK,TRIM4#
3-SPOKE,LEATHER,BLACK,TRIM1#,2#,8#
3-SPOKE,LEATHER,BLACK,TRIM4#
45116ORNAMENT, STEERING WHEEL, NO.1
BLACK,TRIM1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,1#,2#,4#,8#
45164BRACKET, STEERING WHEEL PAD, LH
CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-LEATHER(SMOOTH)
CRUISE CONTROL-WITH(HIGH SPEED *ACC)&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION)
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
8401
9010918006
main90109-18006
9015950265
main90159-50265
9016840113
main90168-40113
10 parts on this diagram · 1 diagram in section
