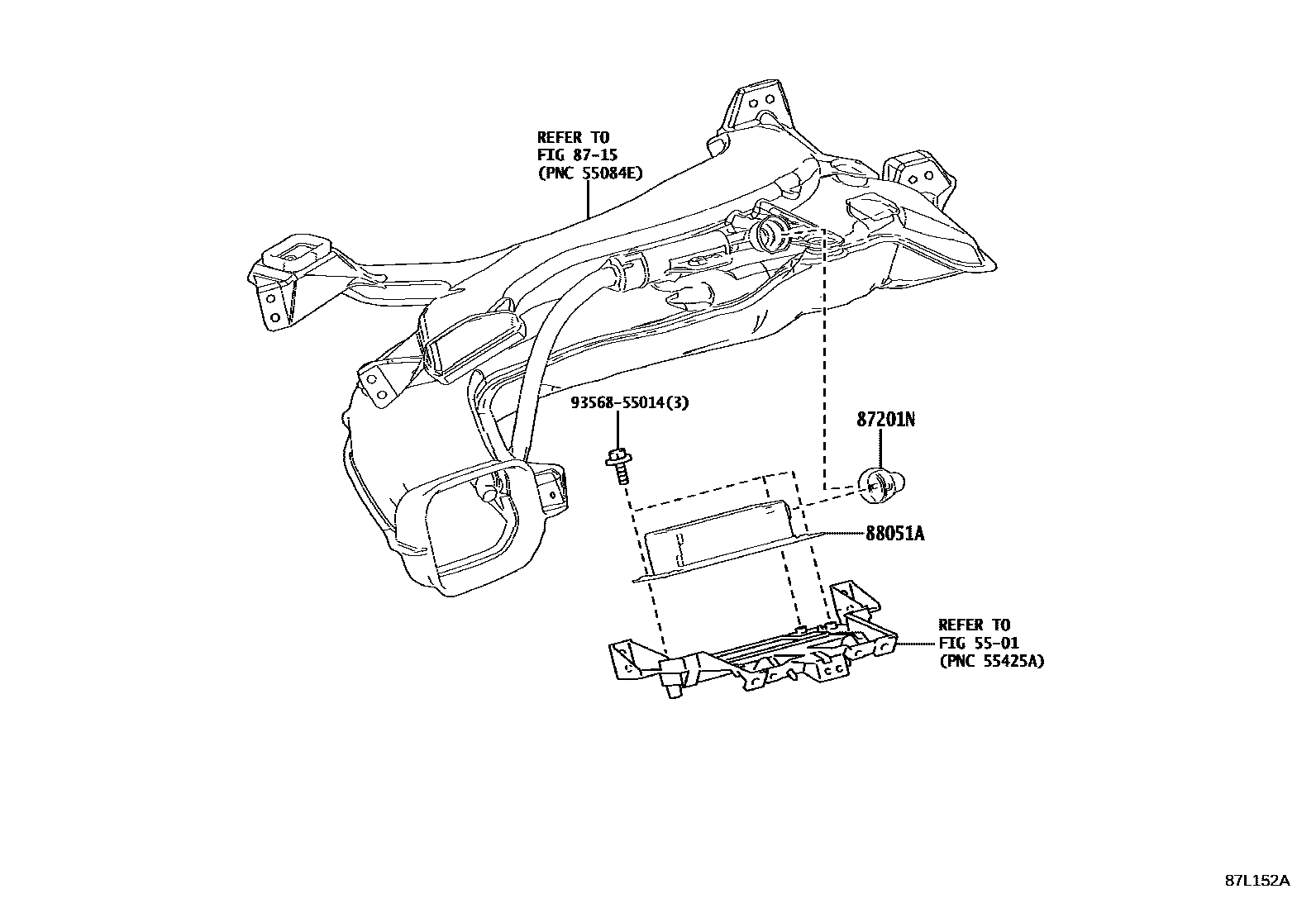

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-76010iKMA10..LHD202207-202512

main55848-76010iMZAA10,MZAH10,15..LHD..EUR202207

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main55848-76020iMZAA10,MZAH10..RHD..GEN202207-202512

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

88051AGENERATOR SUB-ASSY,ION

main88051-48010iKMA10..EUR;KMA10..LHD..GEN202207-202512

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

9356855014

main93568-55014

5 parts on this diagram · 2 diagrams in section
