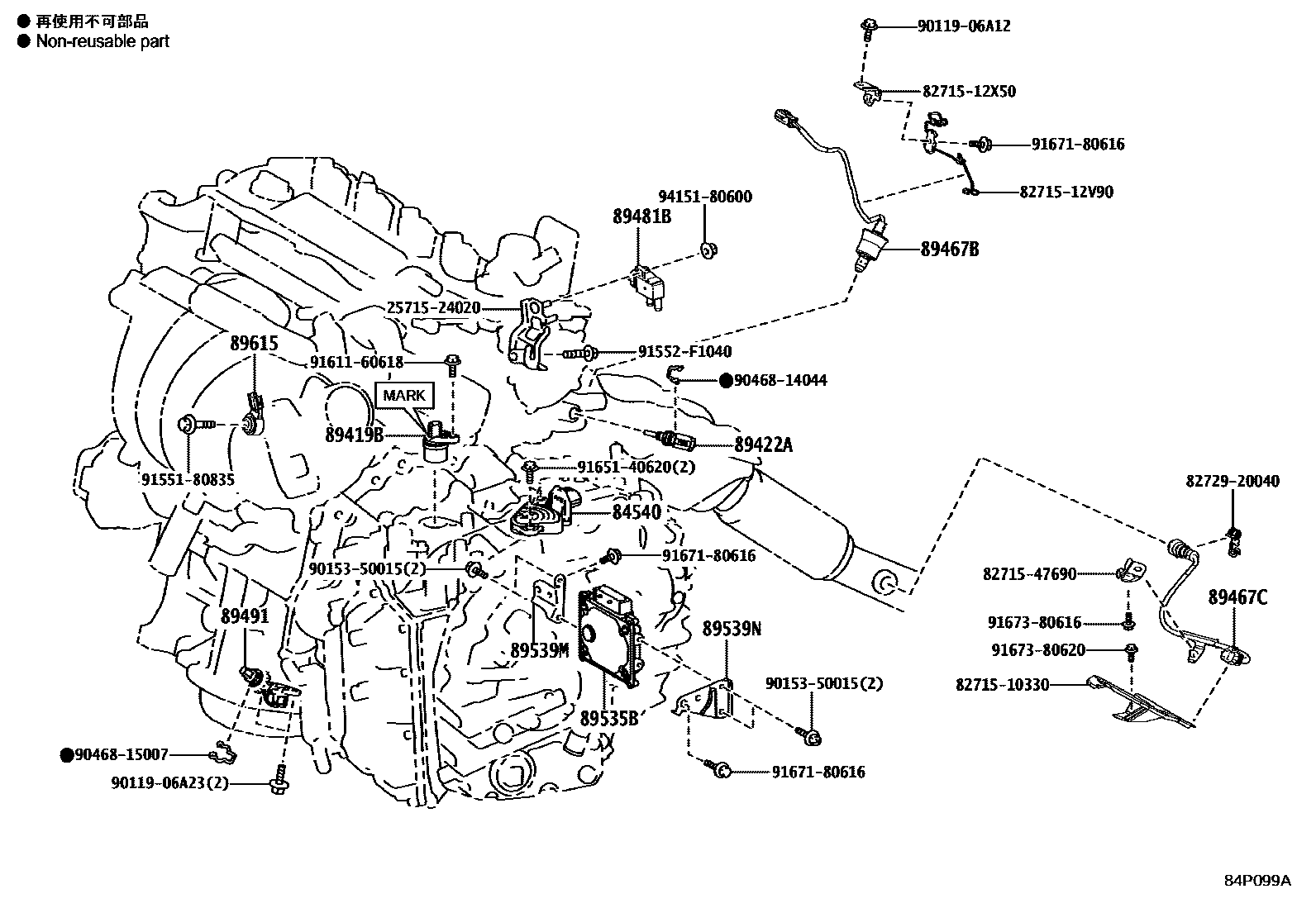

SWITCH & RELAY & COMPUTER
84540SWITCH ASSY, NEUTRAL START
89419BSENSOR, SHIFT STROKE
MARK=CS1
MARK=HK-82
89422ASENSOR, WATER TEMPERATURE
89467BSENSOR, AIR FUEL RATIO
89467CSENSOR, AIR FUEL RATIO, NO.2
SINGAPORE SPEC
DEST.PACKAGE (EXC/ERP.)-BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRASIL BR3 WITH(ON BOARD DIAGNOSIS)
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC
DESTINATION PACKAGE(ERP)&RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6
DESTINATION PACKAGE(ERP)&UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6
DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC&EXHAUST EMISSIONCONTROL-EURO 6
DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 6
DESTINATION PACKAGE(ERP)&MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 6
EXHAUST EMISSION CONTROL-EURO 6
89481BSENSOR, DIFFERENTIAL PRESSURE
SINGAPORE SPEC
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC
89491SENSOR, ENGINE OIL LEVEL
89535BCOMPUTER, TRANSMISSION CONTROL
GUATEMALA SPEC
PERU SPEC
PANAMA SPEC
DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC
DEST.PACKAGE (EXC/ERP.)-MALAYSIA SPEC
DEST.PACKAGE (EXC/ERP.)-BURNEI SPEC
DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC
DEST.PACKAGE (EXC/ERP.)-INDONESIA SPEC
89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1
89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2
89615SENSOR, KNOCK CONTROL
2571524020BRACKET, EMISSION CONTROL VALVE
main25715-24020
8271510330BRACKET,WIRING HARNESS CLAMP
main82715-10330
8271512V90BRACKET,WIRING HARNESS CLAMP
main82715-12V90
8271512X50BRACKET,WIRING HARNESS CLAMP
main82715-12X50
8271547690BRACKET,WIRING HARNESS CLAMP
main82715-47690
8272920040
main82729-20040
9011906A12
main90119-06A12
9011906A23
main90119-06A23
9015350015
main90153-50015
9046814044
main90468-14044
9046815007
main90468-15007
9155180835
main91551-80835
91552F1040
main91552-F1040
9161160618
main91611-60618
9165140620
main91651-40620
9167180616
main91671-80616
9167380616
main91673-80616
9167380620
main91673-80620
9415180600
main94151-80600
30 parts on this diagram · 34 diagrams in section
