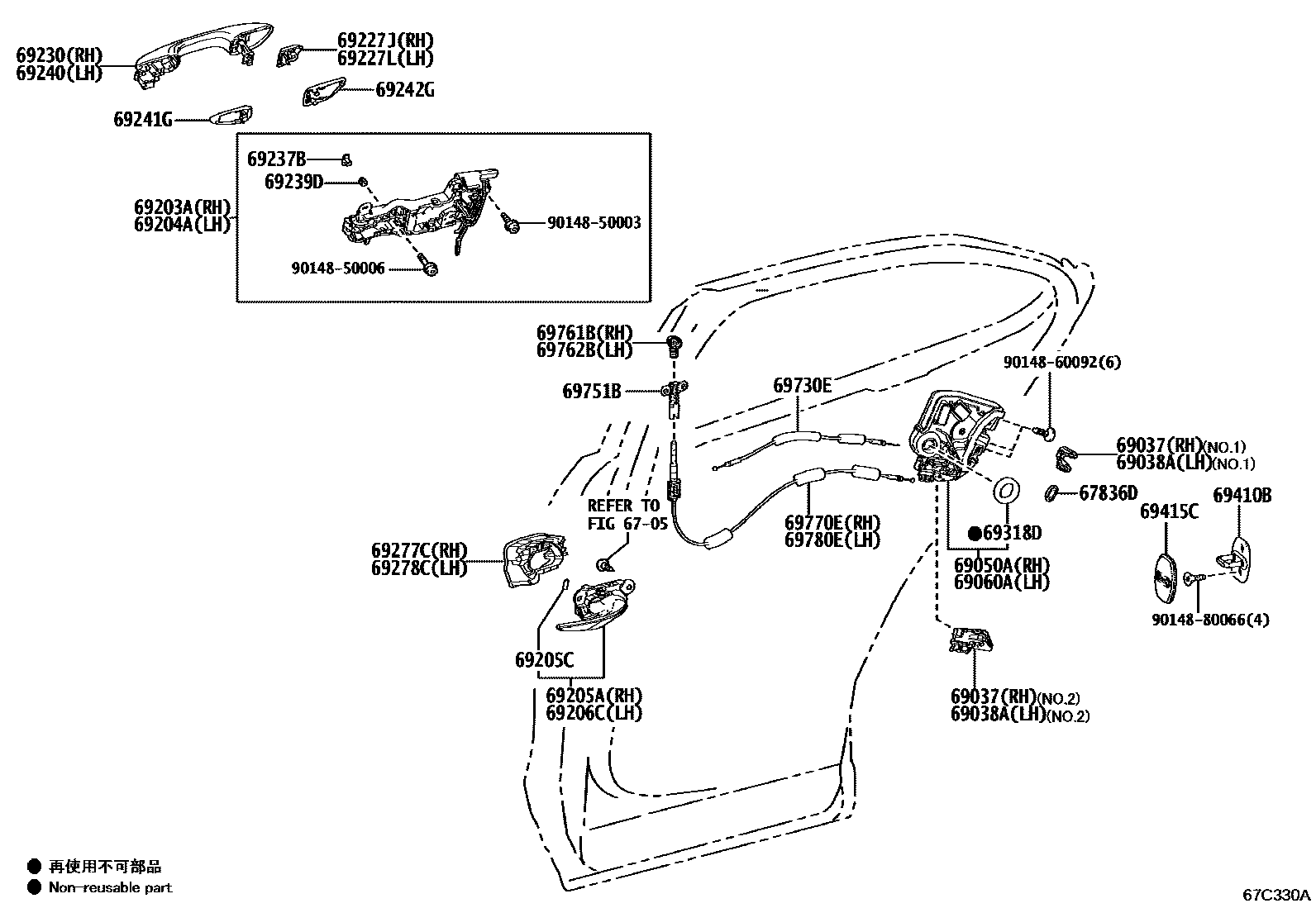

REAR DOOR LOCK & HANDLE

6705

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-76010iMZAA10,MZAH10,15202207-202512

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69031-76010iMZAH11,16..ARL,EUR,GCC,GEN202207-202512

NO.1

main69037-30010iKMA10202207-202512

NO.2

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69032-76010iKMA10202207-202512

NO.1

main69038-30010iMZAA10,MZAH10,15202207-202512

NO.2

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-76021iMZAH11..RHD..GEN202207

SOUTH AFRICA SPEC

main69050-76021iKMA10..LHD..GEN202207-202512

main69050-76031iMZAA10..LHD..GEN202207

PANAMA SPEC

main69050-76031iMZAA10..LHD..GEN202207

DEST.PACKAGE (EXC/ERP.)-BRAZIL SPEC

main69050-76031iMZAA10..LHD..GEN202207

DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC

main69050-76031iMZAA10..LHD..GEN202207

DEST.PACKAGE (EXC/ERP.)-CHILE SPEC

main69050-76031iMZAA10..LHD..GEN202207

DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC

main69050-76031iMZAH10..LHD..GEN202207

PERU SPEC

main69050-76031iMZAH10..LHD..GEN202207

GUATEMALA SPEC

main69050-76031iMZAH11..CHI202207-202512

main69050-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

ARGENTINA SPEC

main69050-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

BRAZIL SPEC

main69050-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

DOMINICA SPEC

main69050-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

CHILE SPEC

main69050-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

PHILIPPINES SPEC

main69050-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

COSTA RICA SPEC

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-76021iKMA10..ARL,EUR;KMA10..LHD..GEN202207-202512

main69060-76021iMZAH11..RHD..GEN202207

SOUTH AFRICA SPEC

main69060-76031iMZAH11..LHD..GEN202401

COSTA RICA SPEC

main69060-76031iKMA10..RHD..GEN202207-202512

main69060-76031iMZAH15..GEN;MZAA10,MZAH10..CHI,GCC;MZAA10,MZAH10..RHD..GEN202207

PERU SPEC

main69060-76031iMZAH15..GEN;MZAA10,MZAH10..CHI,GCC;MZAA10,MZAH10..RHD..GEN202207

GUATEMALA SPEC

main69060-76031iMZAH15..GEN;MZAA10,MZAH10..CHI,GCC;MZAA10,MZAH10..RHD..GEN202207

PANAMA SPEC

main69060-76031iMZAH15..GEN;MZAA10,MZAH10..CHI,GCC;MZAA10,MZAH10..RHD..GEN202207

DEST.PACKAGE (EXC/ERP.)-BRAZIL SPEC

main69060-76031iMZAH15..GEN;MZAA10,MZAH10..CHI,GCC;MZAA10,MZAH10..RHD..GEN202207

DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC

main69060-76031iMZAH15..GEN;MZAA10,MZAH10..CHI,GCC;MZAA10,MZAH10..RHD..GEN202207

DEST.PACKAGE (EXC/ERP.)-CHILE SPEC

main69060-76031iMZAH15..GEN;MZAA10,MZAH10..CHI,GCC;MZAA10,MZAH10..RHD..GEN202207

DEST.PACKAGE (EXC/ERP.)-PHILIPPINES SPEC

main69060-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

ARGENTINA SPEC

main69060-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

BRAZIL SPEC

main69060-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

DOMINICA SPEC

main69060-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

CHILE SPEC

main69060-76031iMZAH16..GEN;MZAH11..GCC;MZAH11..RHD..GEN202401

PHILIPPINES SPEC

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-76011iMZAH11..CHI202207-202512

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-76011iMZAA10,MZAH10,15202207-202512

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69270-76010iMZAH11..CHI202207-202512

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main69275-30070iKMA10202207-202512

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69280-76010iKMA10202207-202512

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-50060iMZAH11,16..ARL,EUR,GCC,GEN202207-202512

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-50040iMZAA10,MZAH10,15202207-202512

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-76030-A0iMZAH11..CHI202401-202501

WHITE NOVA GF.,2LJ

main69210-76030-A0iMZAA10,MZAH10,15202207

WHITE NOVA GF.,083 ,2LJ ,2XN

main69210-76030-A0iMZAH11,16..ARL,EUR,GCC,GEN202401

WHITE NOVA GF.,083 ,2LJ

main69210-76030-A1iMZAH11..CHI202207-202512

SONIC QUARTZ,085

main69210-76030-B2iMZAH11,16..ARL,GCC202401

SONIC TITANIUM,1J7 ,9M0

main69210-76030-B2iMZAH11,16..EUR,GEN202207-202512

SONIC TITANIUM,1J7

main69210-76030-B3iMZAA10,MZAH10,15202207

SONIC CHROME,1L1 ,2XP ,2ZG

main69210-76030-B3iMZAH11,16..ARL,EUR,GCC,GEN202401-202501

SONIC CHROME,1L1 ,2ZG

main69210-76030-B3iKMA10202303-202512

SONIC CHROME,1L1

main69210-76030-B4iKMA10202303-202512

SONIC IRIDIUM,1L2

main69210-76030-B4iMZAA10,MZAH10,15202207

SONIC IRIDIUM,1L2 ,2XQ ,2ZH

main69210-76030-B4iMZAH11..CHI202401-202501

SONIC IRIDIUM,1L2 ,2ZH

main69210-76030-C0iMZAA10,MZAH10,15202207-202512

BLACK,212

main69210-76030-C1iMZAA10,MZAH10,15202207-202512

GRAPHITE BLACK GF.,223

main69210-76030-D0iMZAH11,16..ARL,EUR,GCC,GEN202401-202512

MADDER RED,2LN ,3T2

main69210-76030-D0iMZAA10,MZAH10,15202207

MADDER RED,2LN ,2XR ,3T2

main69210-76030-D0iKMA10202303-202512

MADDER RED,3T2

main69210-76030-E1iKMA10202303-202401

BLAZING CARNELIAN CONTRAS,4Y1

main69210-76030-E1iMZAA10,MZAH10,15202207

BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1

main69210-76030-E2iMZAH11,16..EUR,GEN202401

SONIC COPPER,4Y5 ,9L8 ,M03

main69210-76030-E2iMZAH11..CHI202401-202501

SONIC COPPER,4Y5 ,M03

main69210-76030-E2iKMA10202401-202512

SONIC COPPER,4Y5

main69210-76030-G0iKMA10202207-202512

TERRANE KHAKI M.M.,6X4

main69210-76030-J0iMZAH11,16..EUR,GEN202401

HEAT BLUE CONTRAST LAYERI,2QF ,8X1

main69210-76030-J0iMZAH11,16..ARL,GCC202401

HEAT BLUE CONTRAST LAYERI,2QF ,8X1 ,9L9

main69210-76030-J0iMZAA10,MZAH10,15202207

HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1

main69210-76030-J0iMZAH11..CHI202401-202501

HEAT BLUE CONTRAST LAYERI,2QF

main69210-76030-J1iKMA10202207-202512

CELESTIAL BLUE GF.,8Y6

69237BNUT, REAR DOOR HANDLE

main69237-62010iMZAH11..CHI202207-202512

sub69237-0E010

69239DBUSH, REAR DOOR HANDLE

main69239-47010iMZAH11..CHI202207-202512

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-76020-A0iMZAA10,MZAH10,15202207

WHITE NOVA GF.,083 ,2LJ ,2XN

main69220-76020-A0iMZAH11..CHI202401-202501

WHITE NOVA GF.,2LJ

main69220-76020-A0iMZAH11,16..ARL,EUR,GCC,GEN202401

WHITE NOVA GF.,083 ,2LJ

main69220-76020-A1iMZAH11..CHI202207-202512

SONIC QUARTZ,085

main69220-76020-B2iMZAH11,16..ARL,GCC202207-202512

SONIC TITANIUM,1J7

main69220-76020-B2iMZAH11,16..EUR,GEN202401

SONIC TITANIUM,1J7 ,9M0

main69220-76020-B3iMZAH11..CHI202401-202501

SONIC CHROME,1L1 ,2ZG

main69220-76020-B3iKMA10202303-202512

SONIC CHROME,1L1

main69220-76020-B3iMZAA10,MZAH10,15202207

SONIC CHROME,1L1 ,2XP ,2ZG

main69220-76020-B4iMZAH11,16..ARL,EUR,GCC,GEN202401-202501

SONIC IRIDIUM,1L2 ,2ZH

main69220-76020-B4iKMA10202303-202512

SONIC IRIDIUM,1L2

main69220-76020-B4iMZAA10,MZAH10,15202207

SONIC IRIDIUM,1L2 ,2XQ ,2ZH

main69220-76020-C0iMZAA10,MZAH10,15202207-202512

BLACK,212

main69220-76020-C1iMZAH11,16..ARL,EUR,GCC,GEN202207-202512

GRAPHITE BLACK GF.,223

main69220-76020-D0iKMA10202401-202512

MADDER RED,2LN ,3T2

main69220-76020-D0iKMA10202303-202512

MADDER RED,3T2

main69220-76020-D0iMZAA10,MZAH10,15202207

MADDER RED,2LN ,2XR ,3T2

main69220-76020-E1iKMA10202303-202401

BLAZING CARNELIAN CONTRAS,4Y1

main69220-76020-E1iMZAA10,MZAH10,15202207

BLAZING CARNELIAN CONTRAS,2XS ,2ZJ ,4Y1

main69220-76020-E2iMZAH11,16..EUR,GEN202401-202501

SONIC COPPER,4Y5 ,M03

main69220-76020-E2iMZAH11,16..ARL,GCC202401

SONIC COPPER,4Y5 ,9L8 ,M03

main69220-76020-E2iKMA10202401-202512

SONIC COPPER,4Y5

main69220-76020-G0iKMA10202207-202512

TERRANE KHAKI M.M.,6X4

main69220-76020-J0iMZAH11,16..ARL,GCC202401

HEAT BLUE CONTRAST LAYERI,2QF ,8X1

main69220-76020-J0iMZAH11,16..ARL,GCC202401

HEAT BLUE CONTRAST LAYERI,2QF ,8X1 ,9L9

main69220-76020-J0iMZAH11..CHI202401-202501

HEAT BLUE CONTRAST LAYERI,2QF

main69220-76020-J0iMZAA10,MZAH10,15202207

HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1

main69220-76020-J1iMZAH11..CHI202207-202512

CELESTIAL BLUE GF.,8Y6

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-50040iKMA10202207-202512

RH

main69242-50040iKMA10202207-202512

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-50050iMZAA10,MZAH10,15202207-202512

RH

main69242-50050iKMA10202207-202512

LH

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69287-76020iKMA10202207-202512

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69288-76020iKMA10202207-202512

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iKMA10202207-202512

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-30060iMZAA10,MZAH1#202207-202208

main69410-76010iKMA10202208-202512

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-76011iKMA10202207-202512

69730ECABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1

main69730-76020iMZAH11..CHI202207-202512

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-76010iKMA10202207-202512

69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH

main69761-76020-C0iKMA10202303-202512

BLACK,TRIM0#,1#,2#,4#

main69761-76020-C0iMZAA10,MZAH10,15202207-202501

BLACK,TRIM0#,1#,2#,3#,4#,8#

main69761-76020-C0iMZAH11,16..EUR202401

BLACK,TRIM0#,1#,2#,3#,4#

main69761-76020-C0iMZAH11,16..EUR202401

BLACK,TRIM1#,2#,3#,4#,8#

69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH

main69761-76020-C0iKMA10202303-202512

BLACK,TRIM0#,1#,2#,4#

main69761-76020-C0iMZAA10,MZAH10,15202207-202501

BLACK,TRIM0#,1#,2#,3#,4#,8#

main69761-76020-C0iMZAH11,16..EUR202401

BLACK,TRIM0#,1#,2#,3#,4#

main69761-76020-C0iMZAH11,16..EUR202401

BLACK,TRIM1#,2#,3#,4#,8#

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-76031iKMA10202207-202512

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-76031iKMA10202207-202512

9014850003

main90148-50003

9014850006

main90148-50006

9014860092

main90148-60092

9014880066

main90148-80066

34 parts on this diagram · 1 diagram in section
