EPC Data

FRONT SEAT & SEAT TRACK

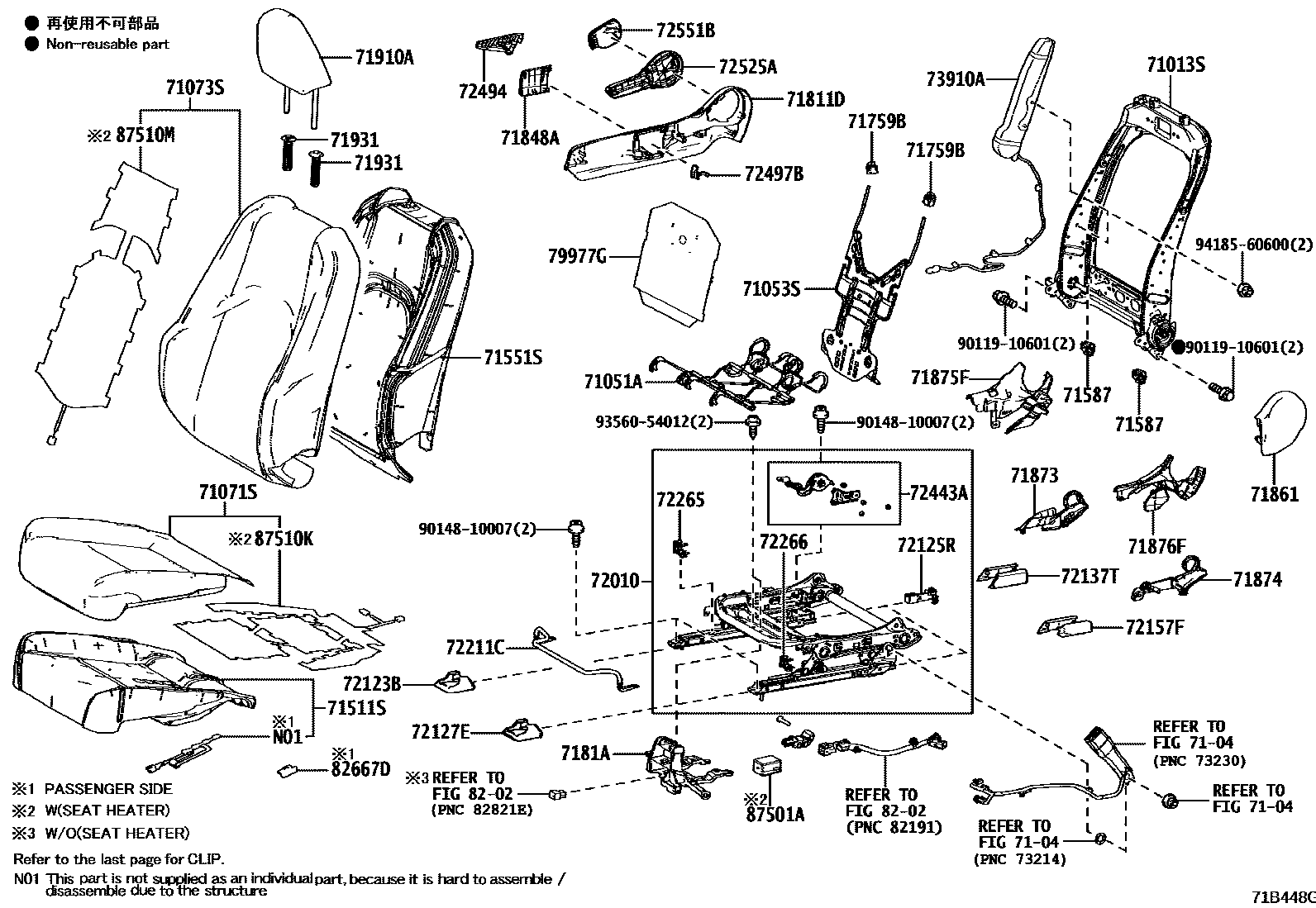

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-33530supersedes 71013-33530i201810-201908
F SPORT&SEAT COVER MATERIAL-F SPORT(LEATHER(SMOOTH))&SEAT HEATER-WITH(*DRP)&FRONTSEAT ADJUSTER-*DRP(8WAY POWER)
main71013-33531supersedes 71013-76120i201910-202108
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
sub71013-33381
main71013-76120i201810-202207
main71013-76100i201811-201908
BRUNEI SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
main71013-76101i201909-202207
HONG KONG SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-47090i201810-202207
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
main71053-47050i201810-201910
main71053-76020supersedes 71053-47050i201910-202010
LATIN AMERICA SPEC&F SPORT&STEERING WHEEL-WITH(PADDLE SWITCH & VIBRATION)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTI
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-76860-B5i201810-201912
CHATEAU,TRIM11
main71071-76860-B8i201810-201912
WHITE ASH,TRIM10,8#
main71071-76860-C2i201810-201912
BLACK,TRIM2#
main71071-76860-E2i201810-201912
OCHER,TRIM4#
main71071-76861-B5i201912-202108
CHATEAU,TRIM11
main71071-76861-B8i201912-202108
WHITE ASH,TRIM10,8#
main71071-76861-C2i201912-202207
BLACK,TRIM2#
main71071-76861-E2i201912-202009
OCHER,TRIM4#
main71071-76880-B5i201812-201912
CHATEAU,TRIM11
main71071-76880-B8i201812-201912
WHITE ASH,TRIM10,8#
main71071-76881-B5i201912-202108
CHATEAU,TRIM11
main71071-76881-B8i201912-202108
WHITE ASH,TRIM10,8#
main71071-76892-A3i201912-202108
SEAT COVER MATERIAL-L TEX,RICH CREAM,TRIM0#
main71071-76892-B2i201912-202108
WHITE ASH,TRIM1#,8#
main71071-76892-C2supersedes 71071-76861-C2i201912-202108
BLACK,TRIM2#
main71071-76892-E1supersedes 71071-76861-E2i201912-202108
SEAT COVER MATERIAL-L TEX,OCHER,TRIM4#
main71071-76A00-A7i201810-201905
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71071-76A00-B6i201810-201905
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76A00-C4i201810-201906
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71071-76A00-E3i201810-201906
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71071-76A01-A6i201908-201912
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71071-76A01-A7i201906-201908
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71071-76A01-B6i201906-201912
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76A01-C4i201906-201912
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71071-76A01-E3i201906-201912
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71071-76A02-A6i202010-202108
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM/ECRU,TRIM00
main71071-76A02-A9i202010-202108
RICH CREAM/BLUE,TRIM02
main71071-76A02-B6i201912-202112
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76A02-C4supersedes 71071-76880-C2i201912-202112
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71071-76A02-E3supersedes 71071-76880-E2i201912-202112
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71071-76A03-A6i202201-202207
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM/ECRU,TRIM0#
main71071-76A03-B6i202201-202207
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76A03-C4i202201-202207
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71071-76A03-E3i202201-202207
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71071-76870-B5i201810-201912
SEAT HEATER-WITH(*DRP),CHATEAU,TRIM11
main71071-76870-B8i201810-201912
SEAT HEATER-WITH(*DRP),WHITE ASH,TRIM10,8#
main71071-76870-C2i201810-201912
SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71071-76870-E2i201810-201912
SEAT HEATER-WITH(*DRP),OCHER,TRIM4#
main71071-76871-B5supersedes 71071-76861-B5i201912-202009
SEAT HEATER-WITH(*DRP),CHATEAU,TRIM11
main71071-76871-B8supersedes 71071-76861-B8i201912-202009
SEAT HEATER-WITH(*DRP),WHITE ASH,TRIM10,8#
main71071-76871-C2i201912-202112
SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71071-76871-E2supersedes 71071-76861-E2i201912-202010
SEAT HEATER-WITH(*DRP),OCHER,TRIM4#
main71071-76872-B8i202201-202207
SEAT HEATER-WITH(*DRP),WHITE ASH,TRIM1#
main71071-76872-C2i202201-202207
SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71071-76A20-A3i201908-201912
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),RICH CREAM,TRIM0#
main71071-76A20-A4i201810-201908
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),RICH CREAM,TRIM0#
main71071-76A20-B2i201810-201912
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),WHITE ASH,TRIM1#,8#
main71071-76A20-C2i201810-201912
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71071-76A20-E2i201810-201912
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),OCHER,TRIM4#
main71071-76A21-A3i202010-202112
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),RICH CREAM,TRIM0#
main71071-76A21-B2supersedes 71071-76861-B8i202010-202112
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),WHITE ASH,TRIM1#,8#
main71071-76A21-C2i202010-202112
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71071-76A21-E2i202010-202112
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),OCHER,TRIM4#
main71071-76A22-A3i202201-202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),RICH CREAM,TRIM0#
main71071-76A22-B2i202201-202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),WHITE ASH,TRIM1#,8#
main71071-76A22-C2i202201-202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71071-76A22-E2i202201-202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),OCHER,TRIM4#
main71071-76A30-A3i201908-201912
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71071-76A30-A4i201810-201908
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71071-76A30-B2i201810-201912
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76A30-C2i201810-201912
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71071-76A30-E2i201810-201912
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71071-76A31-A3i202010-202108
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71071-76A31-B2supersedes 71071-76861-B8i202010-202108
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76A31-C2i202108-202112
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71071-76A31-E2i202108-202112
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71071-76A32-A3i202201-202207
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71071-76A32-B2i202201-202207
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76A32-C2i202201-202207
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71071-76A32-E2i202201-202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71071-76A40-A3i201908-201912
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71071-76A40-A4supersedes 71071-76A02-A6i201811-201908
SOUTH AFRICA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,R
main71071-76A40-B2i201810-201912
MALAYSIA SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#,8#
main71071-76A40-C2i201811-201912
SOUTH AFRICA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,B
main71071-76A40-E2i201811-201912
BRUNEI SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,OCHER,T
main71071-76A41-A3supersedes 71071-76891-A4i202010-202112
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71071-76A41-B2supersedes 71071-76861-B8i202010-202112
SINGAPORE SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHIT
main71071-76A41-C2supersedes 71071-76891-C2i202010-202112
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71071-76A41-E2supersedes 71071-76891-E1i202010-202112
BRUNEI SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,OCHER,T
main71071-76A42-A3supersedes 71071-76A02-A6i202201-202207
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71071-76A42-B2i202201-202207
SINGAPORE SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHIT
main71071-76A42-C2i202201-202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71071-76A42-E2i202201-202207
BRUNEI SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,OCHER,T
main71071-76C50-C0i202010-202108
SEAT COVER MATERIAL-L TEX,BLACK,TRIM2#
main71071-76D50-A0i201912-202010
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),RICH CREAM,TRIM0#
main71071-76D50-B0i201912-202010
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),WHITE ASH,TRIM1#,8#
main71071-76D50-C0i201912-202010
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71071-76D50-E0i201912-202010
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP),OCHER,TRIM4#
main71071-76D60-A0i201912-202010
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71071-76D60-B0i201912-202010
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76D60-C0i201912-202010
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71071-76D60-E0i201912-202010
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71071-76D70-A0supersedes 71071-76A02-A6i201912-202010
MALAYSIA SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,TRIM0#
main71071-76D70-B0i201912-202010
LATIN AMERICA SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#,8#
main71071-76D70-C0i201912-202010
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71071-76D70-E0i201912-202010
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,OCHER,TRIM4#
main71071-76D90-B0i202108-202112
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(*DRP),WHITE ASH,TRIM1#
main71071-76D90-C0i202108-202112
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(*DRP),BLACK,TRIM20
main71071-76D90-C1i202108-202112
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(*DRP),BLACK/IVORY,TRIM26
main71071-76D91-B0i202201-202207
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(*DRP),WHITE ASH,TRIM1#
main71071-76D91-C0i202201-202207
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(*DRP),BLACK/LT.GRAY,TRIM20
main71071-76D91-C1i202201-202207
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(*DRP),BLACK/IVORY,TRIM26
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-76460-C6i201810-202207
BLACK,TRIM2#
main71073-76460-E7i201810-202207
OCHER,TRIM4#
main71073-76460-S0i201810-202108
CHATEAU,TRIM11
main71073-76460-S1i201810-202108
WHITE ASH/WHITE ASH,TRIM10
main71073-76460-S2i201810-202108
WHITE ASH/BLUE,TRIM8#
main71073-76660-C4i201810-202207
BLACK,TRIM2#
main71073-76660-E5i201810-202207
OCHER,TRIM4#
main71073-76660-P6i201810-202108
CHATEAU,TRIM11
main71073-76660-P7i201810-202108
WHITE ASH/WHITE ASH,TRIM10
main71073-76660-P8i201810-202108
WHITE ASH/BLUE,TRIM8#
main71073-76680-A7i201810-201905
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71073-76680-C6i201810-201906
BLACK,TRIM2#
main71073-76680-E6i201810-201905
OCHER,TRIM4#
main71073-76680-P4i201810-201905
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76680-P5i201810-201905
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/WHITE ASH,TRIM1#
main71073-76681-A6i201908-202010
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71073-76681-A7i201906-201908
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71073-76681-C6i201906-202010
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71073-76681-E6i201907-202010
OCHER,TRIM4#
main71073-76681-P4i201906-202010
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76681-P5i201906-202010
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/WHITE ASH,TRIM1#
main71073-76682-A6i202010-202207
RICH CREAM,TRIM0#
main71073-76682-A9i202010-202108
RICH CREAM/BLUE,TRIM02
main71073-76682-C6i202010-202108
SPECIAL EDITION,BLACK,TRIM20
main71073-76682-C8i202010-202108
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK/BLUE,TRIM23
main71073-76682-E6i202010-202207
OCHER,TRIM4#
main71073-76682-P4i202010-202207
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76682-P5i202010-202207
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/WHITE ASH,TRIM1#
main71073-76470-C5i201810-202207
SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71073-76470-E6supersedes 71073-76460-E7i201810-202010
SEAT HEATER-WITH(*DRP),OCHER,TRIM4#
main71073-76470-P8supersedes 71073-76460-S0i201810-202010
SEAT HEATER-WITH(*DRP),CHATEAU,TRIM11
main71073-76470-P9supersedes 71073-76460-S1i201810-202010
SEAT HEATER-WITH(*DRP),WHITE ASH/WHITE ASH,TRIM10
main71073-76470-S0supersedes 71073-76460-S2i201810-202010
SEAT HEATER-WITH(*DRP),WHITE ASH/BLUE,TRIM8#
main71073-76482-C6i202010-202108
SEAT COVER MATERIAL-L TEX,BLACK/MD. GRAY,TRIM24
main71073-76482-C7i202010-202108
SEAT COVER MATERIAL-L TEX,BLACK/BLUE,TRIM23
main71073-76490-01i201810-201906
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71073-76490-C9supersedes 71073-76480-C5i201810-201906
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71073-76490-L1supersedes 71073-76480-E6i201810-201905
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71073-76490-S2supersedes 71073-76480-P3i201810-201905
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76490-S3supersedes 71073-76480-P4i201810-201906
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITEASH,TRIM1#
main71073-76491-01i201906-201908
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71073-76491-A9i201910-202010
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(*DRP),RICH CREAM,TRIM0#
main71073-76491-C9i201910-202010
SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71073-76491-L1i201907-202010
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71073-76491-S2i201906-202010
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76491-S3i201907-202010
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITEASH,TRIM1#
main71073-76492-02i202010-202108
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM/BLUE,TRIM02
main71073-76492-20i202010-202108
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK/BLUE,TRIM23
main71073-76492-21i202010-202108
SPECIAL EDITION,BLACK/MD. GRAY,TRIM24
main71073-76492-22i202108-202207
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(*DRP),BLACK/IVORY,TRIM26
main71073-76492-A9i202010-202108
SEAT HEATER-WITH(*DRP),RICH CREAM,TRIM0#
main71073-76492-C9i202010-202108
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM20
main71073-76492-L1i202010-202108
SEAT HEATER-WITH(*DRP),OCHER,TRIM4#
main71073-76492-S2i202010-202207
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76492-S3i202010-202207
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/WHITE ASH,TRIM1#
main71073-76500-A7supersedes 71073-76481-A6i201908-202010
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY),RICH CREAM,TRIM0#
main71073-76500-A8supersedes 71073-76481-A7i201812-201908
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILA
main71073-76500-C7supersedes 71073-76481-C5i201810-202010
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY),BLACK,TRIM2#
main71073-76500-E8supersedes 71073-76460-E7i201810-202010
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71073-76500-P5supersedes 71073-76460-S2i201810-202010
PHILIPPINES SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH/BLUE,TRIM8#
main71073-76500-P6supersedes 71073-76481-P4i201810-202010
TAIWAN SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH/WHITE ASH,TRIM1#
main71073-76501-A7supersedes 71073-76482-A6i202010-202108
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATHEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT V
main71073-76501-C7supersedes 71073-76482-C5i202108-202207
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71073-76501-E8supersedes 71073-76482-E6i202010-202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71073-76501-P5supersedes 71073-76482-P3i202010-202207
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY),WHITE ASH/BLUE,TRIM8#
main71073-76501-P6supersedes 71073-76460-S1i202010-202207
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH/WHITE ASH,TRIM1#
main71073-76670-C5i201901-202207
SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71073-76670-E6i201901-202010
SEAT HEATER-WITH(*DRP),OCHER,TRIM4#
main71073-76670-P8i201901-202010
SEAT HEATER-WITH(*DRP),CHATEAU,TRIM11
main71073-76670-P9i201901-202010
SEAT HEATER-WITH(*DRP),WHITE ASH/WHITE ASH,TRIM10
main71073-76670-S0i201901-202010
SEAT HEATER-WITH(*DRP),WHITE ASH/BLUE,TRIM8#
main71073-76682-20i202108-202207
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(*DRP),BLACK/IVORY,TRIM26
main71073-76682-C9i202010-202108
SPECIAL EDITION,BLACK/MD. GRAY,TRIM24
main71073-76690-A6i201908-202010
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71073-76690-A7i201811-201908
SOUTH AFRICA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,R
main71073-76690-C6i201811-202010
SOUTH AFRICA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,B
main71073-76690-E6i201810-202010
BRUNEI SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,OCHER,TRIM4#
main71073-76690-P2i201811-202010
SINGAPORE SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHIT
main71073-76690-P3i201811-202010
SINGAPORE SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHIT
main71073-76691-A6i202010-202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71073-76691-C6supersedes 71073-76682-C6i202010-202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71073-76691-E6i202010-202207
BRUNEI SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,OCHER,T
main71073-76691-P2i202010-202207
BRUNEI SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH/BLUE,TRIM8#
main71073-76691-P3supersedes 71073-76660-P7i202010-202207
SINGAPORE SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHIT
main71073-76A10-C0i202010-202108
SEAT COVER MATERIAL-L TEX,BLACK/MD. GRAY,TRIM24
main71073-76A10-C1i202010-202108
SEAT COVER MATERIAL-L TEX,BLACK/BLUE,TRIM23
main71073-76A10-C2i202010-202108
SEAT COVER MATERIAL-L TEX,BLACK/BLACK,TRIM20
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-76030i201810-202207
main71501-76040supersedes 71501-76030i201812-202108
main71511-76040i201810-202207
main71511-76050i201810-202207
SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
main71501-76050i201910-202010
ARGENTINA SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
main71511-76060i201811-202207
INDONESIA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-76060i201810-202207
main71551-76070i201810-202010
LATIN AMERICA SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-47010×4supersedes 71587-47010i202010
71759BHOOK, FRONT SEATBACK
main71759-50040×4supersedes 71759-50040i201810-201910
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-76100-C0i201810-202207
BLACK,TRIM0#,1#,2#,3#,4#,8#
main71811-76110-C0supersedes 71811-76100-C0i201810-202108
BLACK,TRIM0#,1#,2#,3#,4#,8#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
main7181A-33010supersedes 7181A-47010i201810-202108
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
main7181A-47010i201810-202207
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-76020-C0i201810-202207
BLACK,TRIM0#,1#,2#,3#,4#,8#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-47070-C1i201810-202207
BLACK,TRIM0#,1#,2#,3#,4#,8#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-33150i201810-202010
main71873-47070i201810-202207
main71873-76010supersedes 71873-47070i202010-202108
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-47080i201810
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-47040-C1i201810-202108
F SPORT&SEAT COVER MATERIAL-F SPORT(FABRIC & L TEX)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM0#,1#,2#,3#,4#,8#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-47070-C1i201810-202108
F SPORT&SEAT COVER MATERIAL-F SPORT(FABRIC & L TEX)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM0#,1#,2#,3#,4#,8#
71910AHEADREST ASSY, FRONT SEAT
main71910-76290-B1×2i201810-202010
CHATEAU,TRIM11
main71910-76290-B3×2i202010-202207
WHITE ASH,TRIM1#
main71910-76290-C0×2i201810-202207
BLACK,TRIM2#
main71910-76290-E0×2i201810-202207
OCHER,TRIM4#
main71910-76290-J0×2i201810-202108
BLUE,TRIM8#
main71910-76300-A3×2i201908-202108
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71910-76300-A5×2i201810-201908
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71910-76300-B2×2i201810-202108
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITEASH,TRIM1#
main71910-76300-C3×2i201810-202108
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71910-76300-E3×2i201810-202108
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71910-76300-J3×2i201810-202108
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLUE,TRIM8#
main71910-76301-A6×2i202108-202207
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71910-76301-B0×2i202108-202207
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITEASH,TRIM1#
main71910-76301-C7×2i202108-202207
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71910-76301-E1×2i202108-202207
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#
main71910-76301-J1×2i202108-202207
PREMIUM PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLUE,TRIM8#
main71910-76500-B1i201812-202108
CHATEAU,TRIM11,W(CCC MARK)
main71910-76500-B2i201812-202108
WHITE ASH,TRIM10,W(CCC MARK)
main71910-76500-C0i201812-202207
BLACK,TRIM2#,W(CCC MARK)
main71910-76500-E0i201812-202207
OCHER,TRIM4#,W(CCC MARK)
main71910-33D10-A1×2i201810-201910
MALAYSIA SPEC&F SPORT&STEERING WHEEL-WITH(HEATER & PADDLE SWITCH & VIBRATION)&SEATHEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE,TRIM0#
main71910-33D10-C3×2i202112-202207
NEW ZEALAND SPEC&F SPORT&"F SPORT STYLE BLUE"*(E)&OUTSIDE REAR VIEW MIRROR-*AREM,ASPHERICAL, *BSM, *PVM, MEMORY&SEAT COVER MATERIAL-F SPORT(L TEX)&SEAT VENTILATION
main71910-33D10-D3×2i201810-202010
F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT COVERMATERIAL-F SPORT(L TEX),RED,TRIM3#
main71910-33E10-C1i201812-202108
SEAT COVER MATERIAL-F SPORT(FABRIC & L TEX),BLACK,TRIM2#,W(CCC MARK)
main71910-33E10-D1i201812-202108
SEAT COVER MATERIAL-F SPORT(FABRIC & L TEX),RED,TRIM3#,W(CCC MARK)
main71910-76310-A3×2i201908-202108
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71910-76310-A4×2i201810-201908
BRUNEI SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71910-76310-B2×2i201811-202108
INDONESIA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WIT
main71910-76310-C3×2i201811-202108
SOUTH AFRICA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,B
main71910-76310-E4×2i201811-202108
BRUNEI SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,OCHER,T
main71910-76310-J3×2i201811-202108
SOUTH AFRICA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,B
main71910-76311-A0×2i202108-202207
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71910-76311-B0×2i202108-202207
SINGAPORE SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHIT
main71910-76311-C0×2i202108-202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEATCOVER MATERIAL-LEATHER(SMOOTH)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71910-76311-E5×2i202108-202207
BRUNEI SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,OCHER,T
main71910-76311-J1×2i202108-202207
SOUTH AFRICA SPEC&LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,B
main71910-76430-A2×2i201910-202010
LATIN AMERICA SPEC&F SPORT&STEERING WHEEL-WITH(PADDLE SWITCH & VIBRATION)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTI
main71910-76430-C2×2i201810-202207
MACAU SPEC&F SPORT&STEERING WHEEL-WITH(PADDLE SWITCH)&SEAT HEATER-WITH(*DRP)&FRONTSEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TR
main71910-76430-D2×2i201810-202207
F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT COVERMATERIAL-F SPORT(LEATHER(SMOOTH))&SEAT VENTILATION-WITH,RED,TRIM3#
main71910-76511-A4i202108-202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#,W(CCC MARK)
main71910-76511-B4i202108-202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,W(CCC MARK)
main71910-76511-C4supersedes 71910-76290-C0i202108-202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#,W(CCC MARK)
main71910-76511-E3supersedes 71910-76290-E0i202108-202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),OCHER,TRIM4#,W(CCC MARK)
main71910-76511-J3i202108-202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLUE,TRIM8#,W(CCC MARK)
main71910-76520-A1supersedes 71910-76510-A1i201908-202108
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#,W(CCC MARK)
main71910-76520-A2supersedes 71910-76510-A3i201812-201908
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#,W(CCC MARK)
main71910-76520-B0supersedes 71910-76510-B0i201812-202108
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#,W(CCC MARK)
main71910-76520-C1supersedes 71910-76510-C1i201812-202108
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#,W(CCC MARK)
main71910-76520-E1supersedes 71910-76510-E0i201812-202108
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,OCHER,TRIM4#,W(CCC MARK)
main71910-76520-J0supersedes 71910-76510-J0i201812-202108
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLUE,TRIM8#,W(CCC MARK)
main71910-76521-A3i202108-202207
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#,W(CCC MARK)
main71910-76521-B1i202108-202207
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#,W(CCC MARK)
main71910-76521-C2supersedes 71910-76500-C0i202108-202207
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#,W(CCC MARK)
main71910-76521-E2supersedes 71910-76500-E0i202108-202207
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,OCHER,TRIM4#,W(CCC MARK)
main71910-76521-J1i202108-202207
LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLUE,TRIM8#,W(CCC MARK)
main71910-76540-A1supersedes 71910-76510-A3i201812-202207
F SPORT&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE,TRIM0#,W(CCC MARK)
main71910-76540-C1i201812-202207
F SPORT&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#,W(CCC MARK)
main71910-76540-D1i201812-202207
F SPORT&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RED,TRIM3#,W(CCC MARK)
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5×2i201810-202108
W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,8#
main71931-47030-C4×2i201810-202207
W/O(LOCK),HONG KONG SPEC&F SPORT&STEERING WHEEL-WITH(HEATER & PADDLE SWITCH)&SEATHEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VE
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-33570supersedes 72010-47361i201812-202108
main72010-33610i201810-202207
F SPORT&STEERING WHEEL-WITH(PADDLE SWITCH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
main72010-47360i201810-201905
main72010-47361i201906-202112
main72010-47370i201810-201905
main72010-47371i201906-202112
main72010-76210i202201-202207
main72010-76220i202201-202207
main72010-33620i201810-202207
HONG KONG SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT
main72123-10100×2i201810-202009
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
main72125-47010×4i201810-202207
main72125-47020×4supersedes 72125-47010i201810-202108
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
72127ECOVER, SEAT TRACK BRACKET, INNER FRONT
main72123-10100×2i201810-202009
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
main72137-47060i201810
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
main72157-47080i201810-202009
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-47050×2i202108-202207
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-47010×2i201810-202207
main72265-47020×2supersedes 72265-47010i201810-202108
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-47010×2i201810-202207
main72265-47020×2supersedes 72265-47010i201810-202108
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
72443AGEAR, VERTICAL ADJUSTER, RH
main72443-47010i201810-201903
main72443-47011i201904-202009
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-76010-C0i202108-202207
BLACK,TRIM1#,2#,4#,8#
72497BCOVER, VERTICAL ADJUSTER BRACKET, RH
main72498-47010i201810-202207
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-76010-C0i201810-202207
BLACK,TRIM0#,1#,2#,3#,4#,8#
72551BCOVER, RECLINING HINGE, RH
main72551-76010-C0i201810-202207
BLACK,TRIM0#,1#,2#,3#,4#,8#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-42090i202109-202207
main73910-76040i201810-202109
79977GFELT, FRONT SEATBACK, RH
main79977-33040supersedes 79977-33040i201810
8202
82667DHOLDER, CONNECTOR
main82666-47630i201810-202207
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-33010i201810-202207
F SPORT&SEAT COVER MATERIAL-F SPORT(LEATHER(SMOOTH))&SEAT HEATER-WITH(*DRP)&FRONTSEAT ADJUSTER-*DRP(8WAY POWER)
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-76020i201810-202112
SOUTH AFRICA SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
main87510-76021i202201-202207
SOUTH AFRICA SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
main87510-76060i201810-202112
SEAT HEATER-WITH(*DRP)
main87510-76061i202201-202207
SEAT HEATER-WITH(*DRP)
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-76020i201810-202207
SOUTH AFRICA SPEC&LUXURY PACKAGE&SEAT HEATER-WITH(*DRP)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
9011910601
main90119-10601
9014810007
main90148-10007
9356054012
main93560-54012
9418560600
main94185-60600

45 parts on this diagram · 13 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
